3-phase network analyzer TPM-01ESH - TENSE (Turkey)

Description:

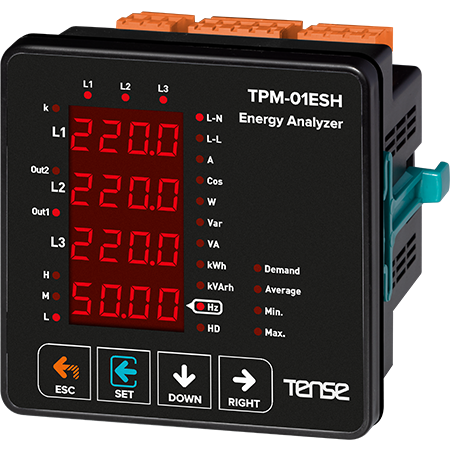

Multifunctional digital panel meter for three-phase network parameters designed for accurate measurement and monitoring of electrical values. It allows monitoring currents, voltage, frequency, power and energy with RS485 ModBus RTU communication capability.

Main functions

• Measurement of 3-phase voltage and current

• Indication of active, reactive and apparent energy (P, Q, S)

• Display of Cosφ and power factor values of each phase

• Measurement of phase-neutral and phase-to-phase voltage and current of each phase

• Frequency measurement

• Harmonic voltage and current up to the 31st harmonic

• Total active energy import and export values (ΣkWh)

• Total inductive and capacitive reactive energy (ΣkVArh)

• Display of minimum and maximum values, maximum requirements

• 2 relay outputs and 1 digital input

• Event logs (voltage/current high/low, imbalance, THD-I)

• Password protected menu

Technical features

• Communication: RS485 ModBus RTU (1200-38400 bps)

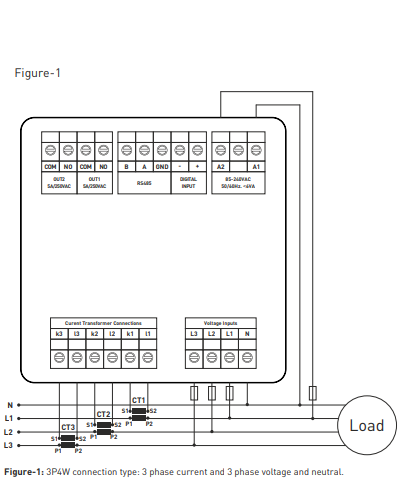

• Connection: 3-phase voltage transformer and 3-phase current transformer

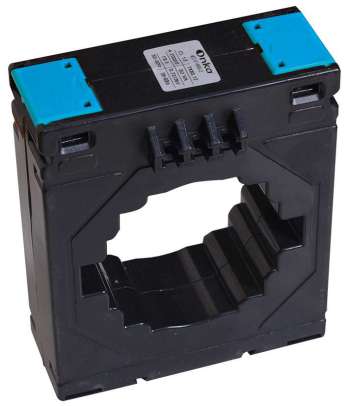

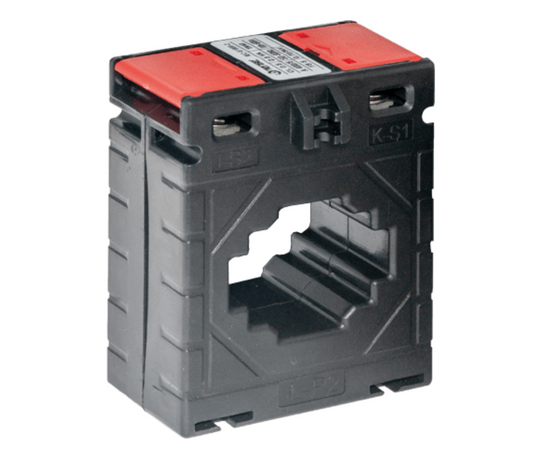

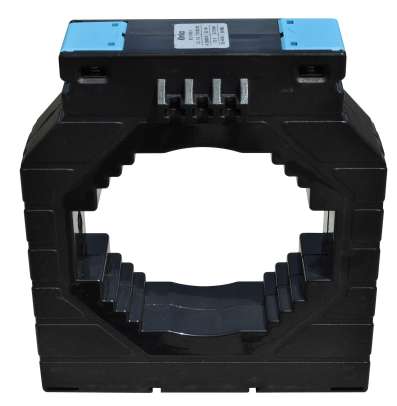

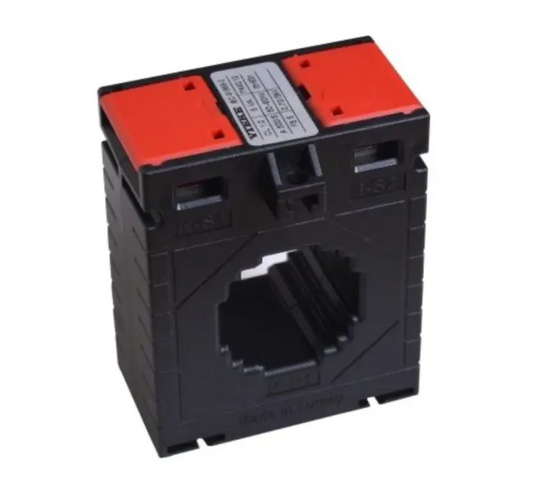

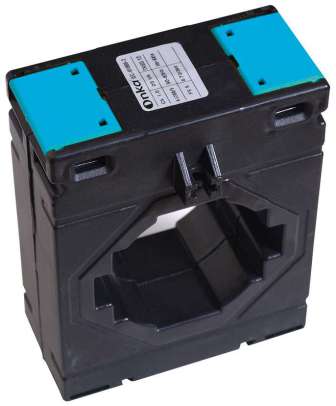

• Compatible current transformers: 60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5

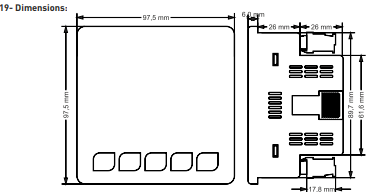

• Panel size: standard digital mounting panel

Application

• Monitoring of three-phase electrical networks in industrial and commercial applications

• Energy consumption and power quality monitoring

• Integration into automation systems via ModBus RTU
