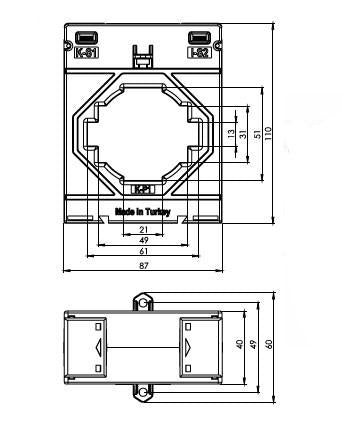

ONKA Current Transformer - CURRENT TRANSFORMER 600/5A, 60MM, CLASS 0.5S, 5VA (TK606005304 / 80011767)
- Regular price
- €27,20
- Regular price
-
- Sale price
- €27,20
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

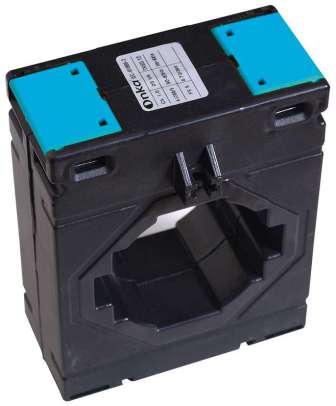

Slide-on measuring transformer for primary rated currents 600 A, secondary current 5 A, rated outputs 5 VA, available in accuracy class 0,5S, ONKA.
The ONKA TK606005304 is a plug-in/windowed current transformer designed for indirect measurement of sinusoidal AC current in power supply and metering systems. It is suitable for residential, commercial and light industrial switchgear.
Technical parameters
| Parameter | Value |
|---|---|
| Primary rated current | 600 A |
| Secondary current | 5 A |
| Mounting/internal busbar diameter | Ø 60 mm |
| Rated power (secondary load) | 5 VA |
| Accuracy class | 0,5S |
| Mounting type | Windowed / slide-in, mounting feet included |
Product Description
The transformer converts primary current up to 600 A to a standard secondary current of 5 A, allowing safe and convenient connection:
-
Meters and ammeters
-
protection and automation systems
-
monitoring and measuring equipment
Mounting is by sliding onto the bus and, thanks to the supplied mounting feet, there is no need to interrupt the main circuit. The compact design allows installation even in cabinets with limited space.
Advantages
-
Handles current up to 600 A - suitable for medium loads
-
Standard 5 A output - compatible with most measurement and control equipment
-
Accuracy class 0.5S - reliable and accurate measurements suitable for measurement and control
-
Compact size (60 mm busbar) - suitable for cabinets with limited space
-
Easy installation - snap-on housing + mounting feet, no interruption of the main circuit
-
Stability and compatibility - suitable for continuous current monitoring and metering systems
Recommended use
-
Switchboards in residential, commercial and light industrial installations
-
Power metering, load monitoring and protective control systems
-
Connection of meters, ammeters and automation systems requiring a stable output signal
