Tense Digital PID Temperature Controller with SSR Output, 36x72 mm, DT-36EM
- Regular price
- €34,36
- Regular price
-
- Sale price
- €34,36
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Tense Digital Microprocessor-Based Panel-Mount Temperature Controller

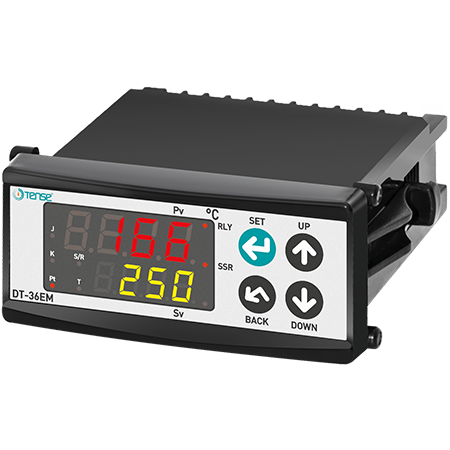

The Tense DT-36EM precision PID temperature controller is designed to control and maintain a stable temperature in industrial applications. It features an advanced PID algorithm, an auto-tuning function, and intelligent temperature overshoot elimination. The dual LED display shows both the setpoint (SET) and actual (PROCESS) values simultaneously. Its main advantage is the solid-state relay (SSR) output for fast and silent switching of heating elements without mechanical wear. It is mounted in a 36×72 mm panel cutout, and wiring is facilitated by removable plug-in terminal blocks.
Main Functions and Features
Control: Selectable P, PI, PD, PID, or ON-OFF.
PID Auto-Tuning: Automatic calculation of optimal parameters for a given system.
Compensation: Automatic cold-junction compensation for thermocouples and lead compensation for Pt100.
Protection: Password-protected settings and data storage in EEPROM memory.
Technical Specifications
Product Type: Digital PID Temperature Controller
Output Type: SSR (solid-state relay)
Supported Sensors (Input): J, K, T, S, and R thermocouples and Pt100 resistance sensors
Mounting Dimensions: Front panel 36 × 72 mm
Connection: Plug-in connectors
Settings: Upper/lower limits for SET and ALARM, input temperature offset
