Vendor: TENSE

TK30 - Current measuring transformer 150/5 200/5 250/5 300/5 400/5 500/5 600/5

Barcode: TK306005307
€16,80
€16,80
excl. VAT: €14
44 in stock
Mark: 600/5
  • Description
  • Manuals
  • Payment methods
  • Warranty

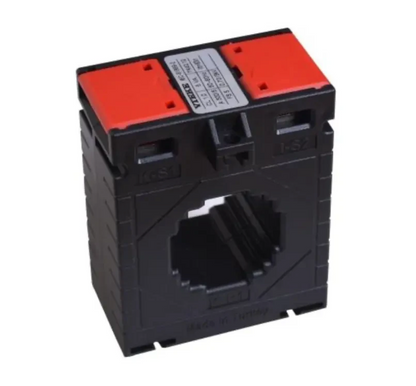

Window type measuring current transformer TK30 series made by Turkish company TENSE

Product Description

Window type current measuring transformer is designed for indirect measurement of sinusoidal alternating currents in electrical systems.
Suitable for professional use in industry, meter cabinets, measurement and control systems.
Mounting is possible with mounting feet KK0001 or KK0002 (included).

Technical specifications

Electrical parameters

Slide-on measuring transformer for primary rated currents from 150 to 600 A, secondary current 5 A, rated outputs 1 to 10 VA, available in 0.5S accuracy class.

Mechanical parameters

  • Primary winding (bore section): 30 × 10 mm

  • Round wire: Ø 26 mm

  • Housing: non-flammable flame retardant ABS

  • Terminal block:

    • Non-removable cover

    • Suitable for high cross-section conductors

    • Brass clamps for higher safety

Installation

  • Mounting type: KK0001 or KK0002

  • Easy to slide onto the conductor

Thermal and operational properties

  • Operating temperature: -25 °C to +85 °C

  • Short-term short-circuit current immunity (Ith): 60 × In

  • Resistance to continuous current (Id): 1.2 × In

Standards

Manufactured in accordance with:
IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN 57414, BS 3938, BS 7626, EN 61869-2

Download on

Technical information on current transformers (996 kB) - to be sent on request
