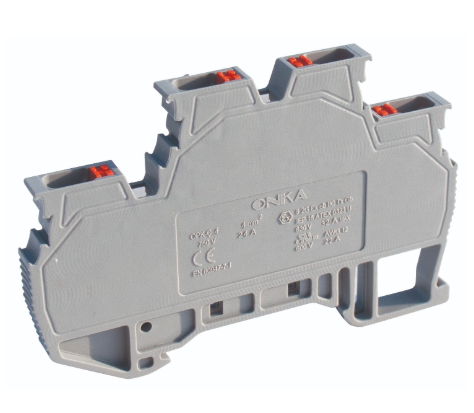

Screwless DIN rail clamp grey, ONKA
ONKA's compact in-line clamps provide reliable electrical and mechanical connections in switchboards. They are designed for mounting on standard DIN rail 35 mm. The original ONKA clamps bring high mounting comfort, secure wire fixing and long-term connection stability even in harsh industrial conditions.
Technical parameters
Colour: grey
Nominal cross-section (IEC): 4 mm²
Nominal cross-section (UL): 12 AWG
Rated current (IEC): 24 A
Rated current (UL): 22 A
Rated voltage (IEC): 750 V
Rated voltage (UL): 300 V
Insulating body material: Polyamide (PA 6.6)
Bridge material: Copper
Spring material: stainless steel
Control button material: Polyamide (PA 6.6), orange
Operating temperature range: -40 °C to +140 °C
Wire stripping length: 9 mm
Mounting method: mounting rail DIN 35 mm
Standards: EN-60947-7-1, UL1059
Certification: TSE, CE, UL

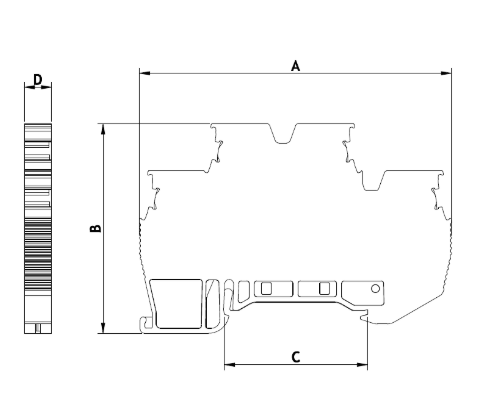

Dimensions
Dimension A: 75.15 mm
Dimension B: 50.5 mm
Dimension C: 34.5 mm
Dimension D (Clamp width): 6.6 mm
