PDB407 phase separation terminal block
- Regular price
- €13,16
- Regular price
-
- Sale price
- €13,16
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

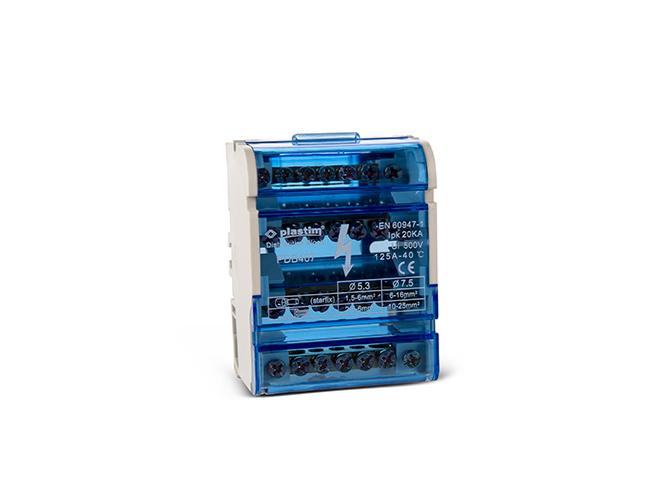

Terminal block for phase separation on DIN rail, Plastim, made in Turkey.
The Plastim four-pole distribution block is used for safe, structured and space-saving branching of three phases and a neutral conductor (3P+N) in power distribution panels. The assembly contains four separate, galvanically isolated brass busbars (4 poles), each with 7 connection points of two different diameters for reliable fixing of main feeders and outgoing circuits. A transparent hinged protective cover allows immediate visual inspection of the condition of the connections while providing safe protection against accidental contact. The block is designed for quick snap-on to a standard DIN 35 mm support rail or for mounting with screws on a mounting plate.
Technical parameters
Product type.
Number of poles: 4 (ideal for three-phase systems with zero conductor)
Rated current: 125 A
Number of terminals per pole: 7
Total number of terminals: 28 (4×7)
Terminal configuration per pole: 5× ø 5.3 mm + 2× ø 7.5 mm
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Length: 65.0 mm
Width: 89.5 mm
Height: 50.0 mm
Íocaíocht le cárta ar líne - tar éis an t-ordú a chríochnú, atreorófar chuig an ngeata íocaíochta thú, seolfar dearbhú íocaíochta chuig do r-phost
COD - íocann tú an íocaíocht de réir an ordaithe íocaíochta le tiománaí na cuideachta iompair
Trí aistriú bainc - gheobhaidh tú réamhshonrasc chuig do r-phost tráth nach déanaí ná an chéad lá oibre eile, agus gheobhaidh tú an uimhir chuntais a chuirfidh tú isteach le linn na híocaíochta air sin.
Ar an sonrasc - tá an rogha íocaíochta seo ar fáil do chomhpháirtithe a shínigh comhaontú creatlaí lenár gcuideachta.
Más mian leat an dá mhodh dheireanacha a úsáid, glaoigh ar ár mbainisteoir agus tabharfaidh sé treoracha duit maidir le conas sonrasc a fháil le CBL nó gan CBL.
Comhlíonann an trealamh leictreach a sholáthraímid caighdeáin arda cáilíochta, tá barántas 24 mí leis agus comhlíonann sé gach ceanglas AE.
Tá loingseoireacht saor in aisce againn freisin (le haghaidh orduithe os cionn 100 EUR), córas solúbtha lascainí agus ardú céime. Cuireann eolas teicniúil agus taithí ár bhfostaithe ar ár gcumas comhairle ardchaighdeáin a sholáthar agus, más gá, roghanna malartacha a thairiscint in ionad táirgí leictreacha.
The electrical equipment we supply meets high quality standards, has a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of goods is not charged.
