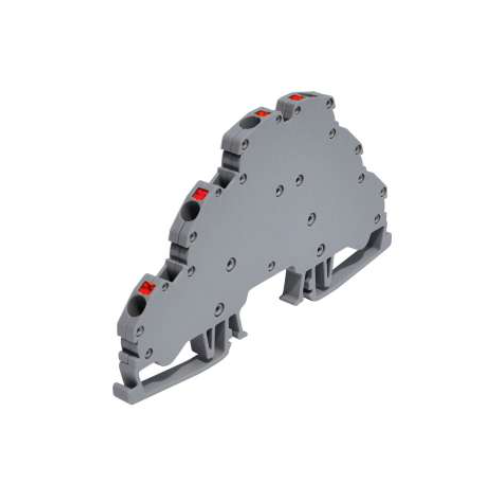

Three tier screwless DIN rail clamp grey, ONKA
ONKA's multi-fold in-line clamps provide a space-saving solution for reliable electrical and mechanical connections in confined switchboard spaces. The three-tier design allows multiple independent circuits to be connected one above the other while maintaining a minimum DIN rail width of 35 mm. ONKA's original clamps offer high mounting comfort, secure wire fixing and long-term connection stability even under harsh industrial conditions.
Technical parameters
Construction.
Colour: grey
Nominal cross-section (IEC): 2.5 mm²
Rated current (IEC): 24 A
Rated voltage (IEC): 750 V
Insulating body material: Polyamide (PA 6.6)
Bridge material: copper
Spring material: stainless steel
Control button material: Polyamide (PA 6.6), orange
Operating temperature range: -40 °C to +140 °C
Wire stripping length: 9 mm
Mounting method: mounting rail DIN 35 mm
Standard: EN-60947-7-1
Certification: TSE, CE

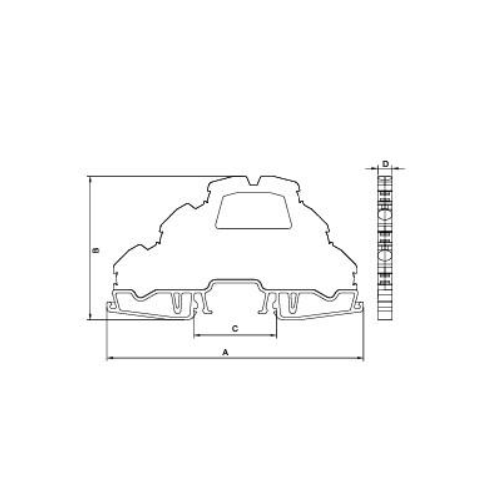

Dimensions
Dimension A: 106.0 mm
Dimension B: 60.0 mm
Dimension C: 34.5 mm
Dimension D (Clamp width): 5.9 mm
