ONKA 6mm2 Hybrid Scriú/Conneáil Réilí Spring Bloc Téarmail DIN Bloc Téarmail 2-chonair gorm, 1040012
- Regular price
- €1,16
- Regular price
-
- Sale price
- €1,16
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

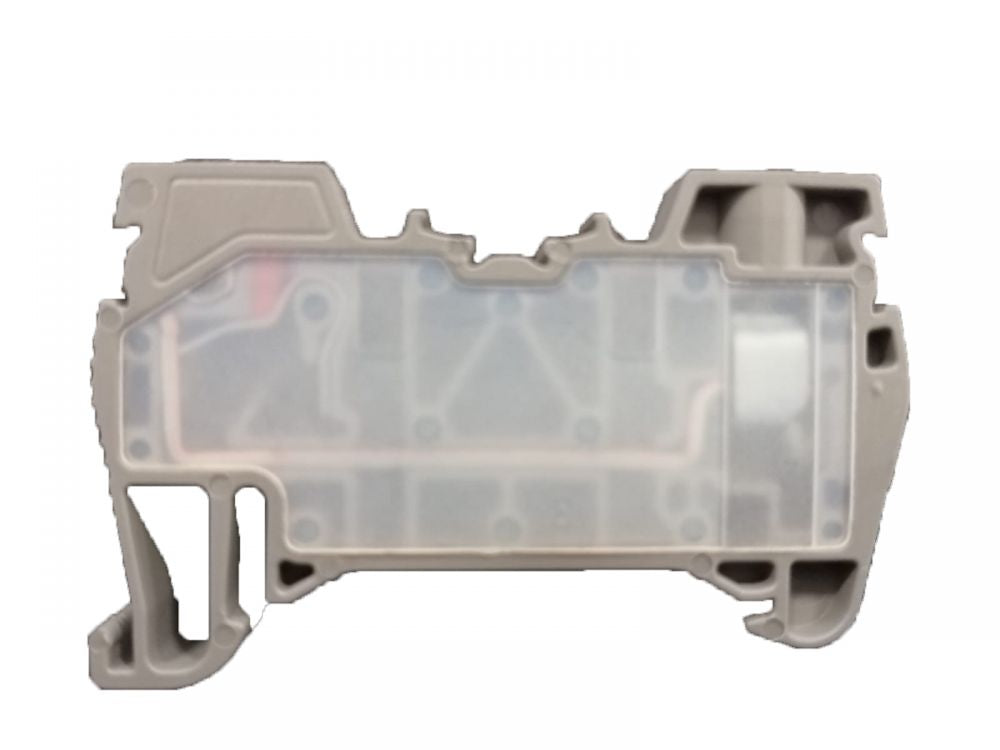

Hybrid busbar rail connector / DIN rail terminal 2-wire grey, ONKA, made in Turkey
Cuideachta ONKA's compact installation rail couplers provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.
Paraiméadair theicniúla
Cross section of the connected single wire up to: 6mm2
Dath: grey
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/ Stainless steel/ Copper
Torque: 0.4 Nm
Connection position: Top / Side
Cable strip length: 10mm
Electrical connection type: screw clamp / spring clamp
Rated Voltage: 750V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
Íocaíocht le cárta ar líne - tar éis an t-ordú a chríochnú, atreorófar chuig an ngeata íocaíochta thú, seolfar dearbhú íocaíochta chuig do r-phost
COD - íocann tú an íocaíocht de réir an ordaithe íocaíochta le tiománaí na cuideachta iompair
Trí aistriú bainc - gheobhaidh tú réamhshonrasc chuig do r-phost tráth nach déanaí ná an chéad lá oibre eile, agus gheobhaidh tú an uimhir chuntais a chuirfidh tú isteach le linn na híocaíochta air sin.
Ar an sonrasc - tá an rogha íocaíochta seo ar fáil do chomhpháirtithe a shínigh comhaontú creatlaí lenár gcuideachta.
Más mian leat an dá mhodh dheireanacha a úsáid, glaoigh ar ár mbainisteoir agus tabharfaidh sé treoracha duit maidir le conas sonrasc a fháil le CBL nó gan CBL.
Comhlíonann an trealamh leictreach a sholáthraímid caighdeáin arda cáilíochta, tá barántas 24 mí leis agus comhlíonann sé gach ceanglas AE.
Tá loingseoireacht saor in aisce againn freisin (le haghaidh orduithe os cionn 100 EUR), córas solúbtha lascainí agus ardú céime. Cuireann eolas teicniúil agus taithí ár bhfostaithe ar ár gcumas comhairle ardchaighdeáin a sholáthar agus, más gá, roghanna malartacha a thairiscint in ionad táirgí leictreacha.
The electrical equipment we supply meets high quality standards, has a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of goods is not charged.
