Vendor: TENSE

DC-AC leictreonach aon chéim soladach stáit relay SSR ag comhoibriú teagmhála 25A, 40A

Barcode: IG3PA-4825D
€28,96
€28,96
excl. VAT: €24
30 in stock
Mark: 25A
  • Description
  • Payment methods
  • Warranty

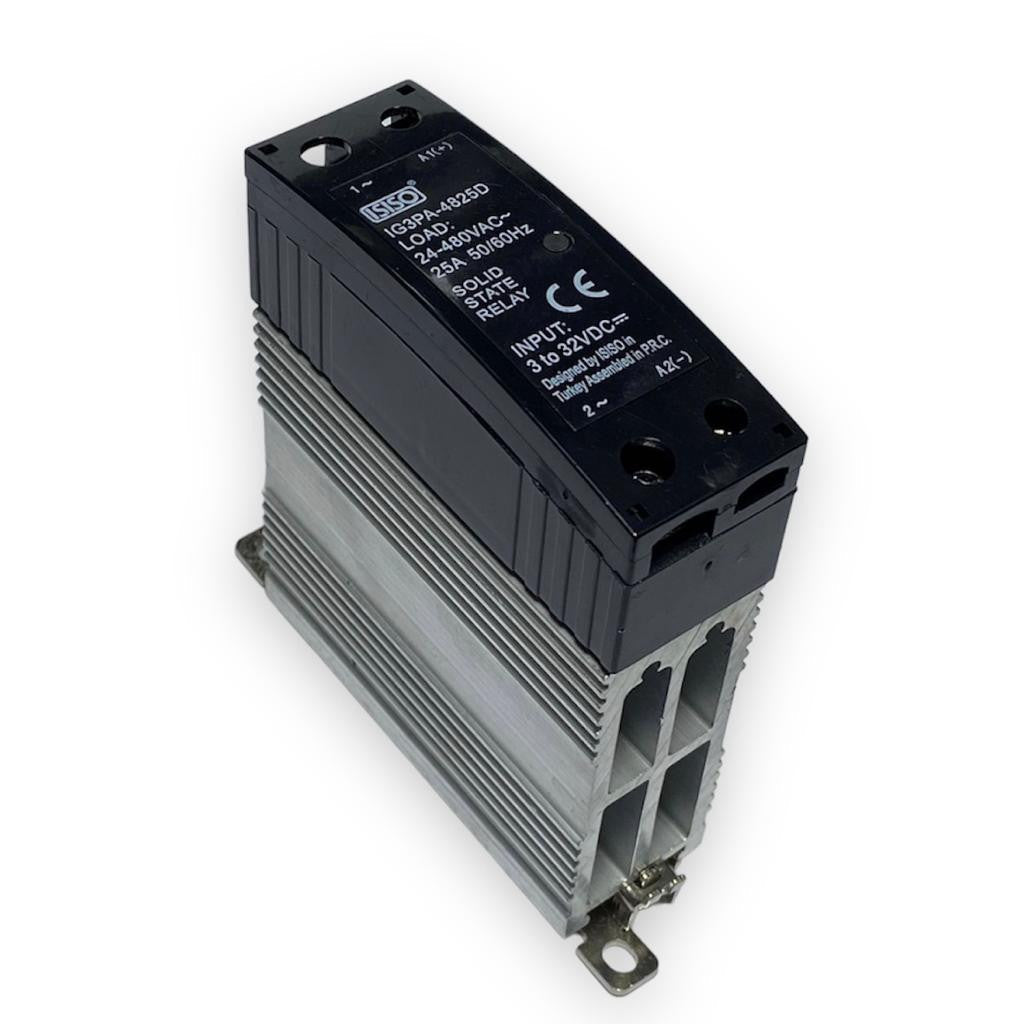

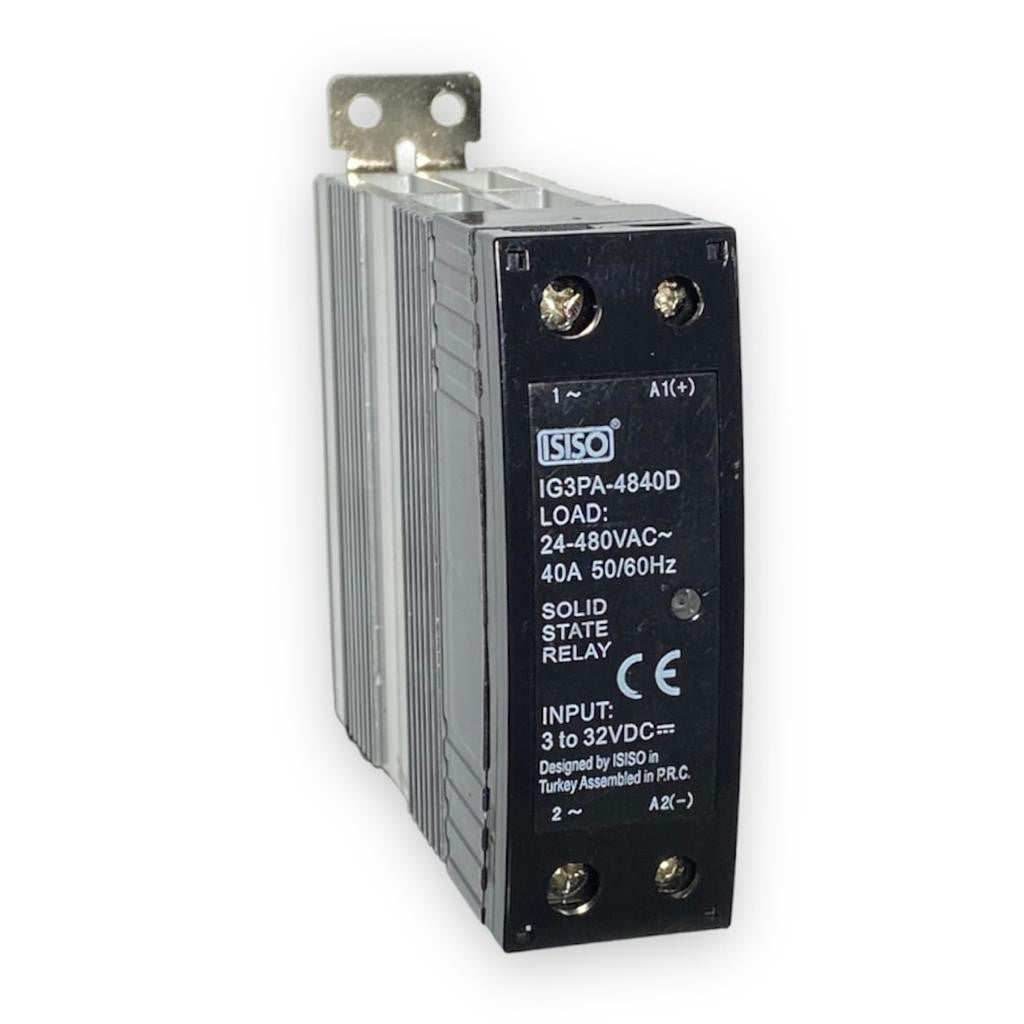

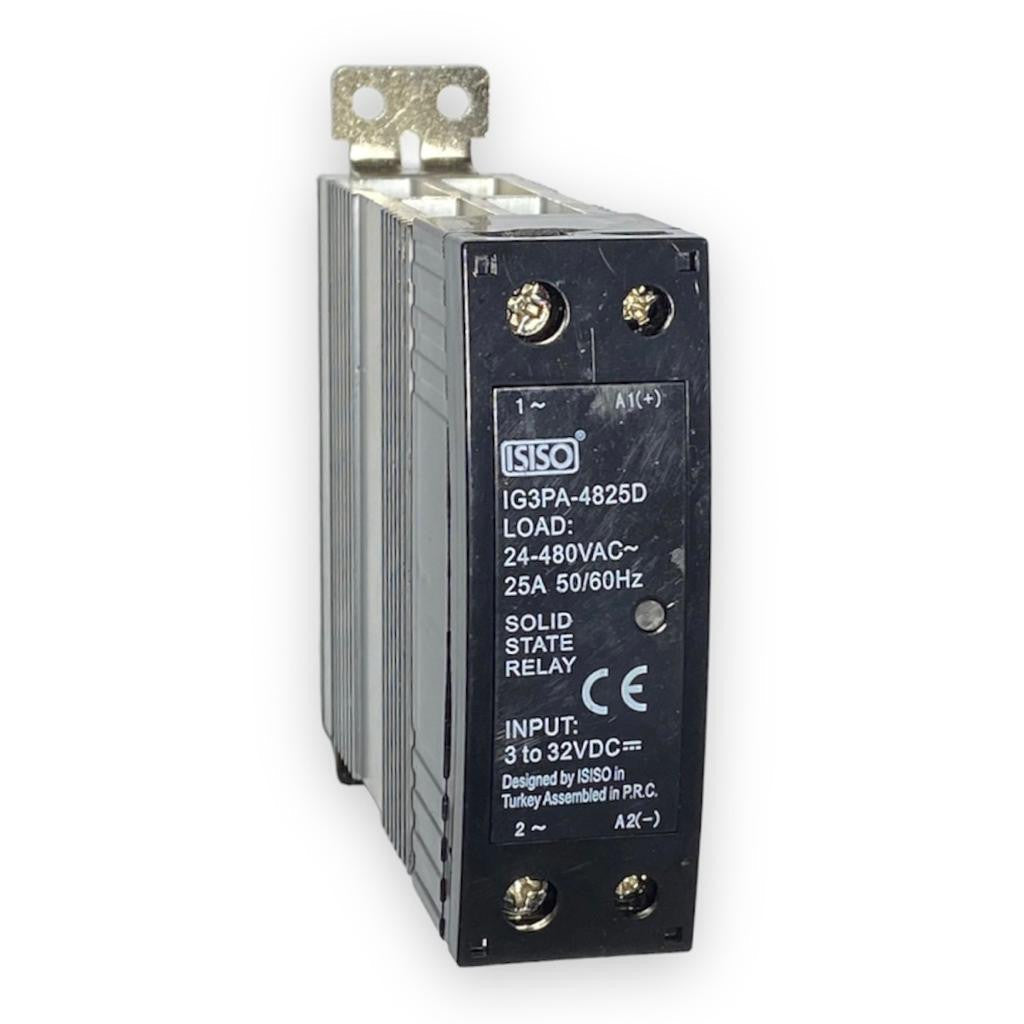

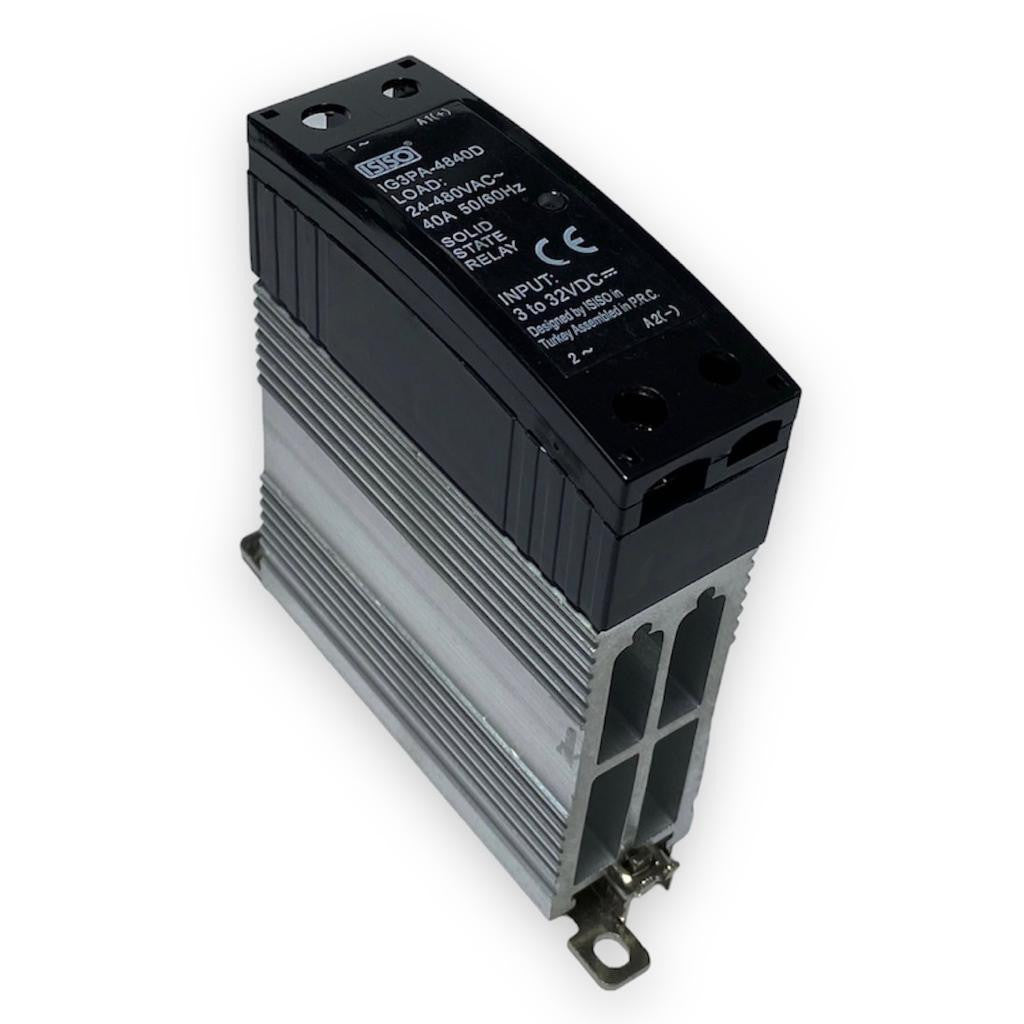

DC-AC single-phase solid-state relay SSR - 25A / 40A, DIN rail mounting

Single-phase electronic SSR relay designed for switching AC loads using a DC control signal. It uses thyristor switching elements that ensure high lifetime, quiet switching and absolute absence of mechanical wear. The relay is designed for mounting on a standard 35mm DIN rail.

Features and Benefits

  • DC control input 3-32 VDC

  • AC output 24-380 VAC (thyristor switching)

  • Available current variants: 25 A and 40 A

  • Extremely high number of switching cycles (no mechanical contacts, no arcing)

  • Noiseless operation

  • Low excitation power of the control input

  • Resistant to vibrations and mechanical shocks

  • Suitable for inductive and resistive loads (heating coils, motors, valves, pumps)

  • Easy installation on 35 mm DIN rail

Technical parameters

  • Input: 3-32 VDC

  • Output: 24-380 VAC

  • Switching element type: thyristor (SCR / TRIAC depending on version)

  • Rated current: 25 A or 40 A

  • Isolation: galvanic isolation input/output

  • Mounting: 35 mm DIN rail

  • Operational advantages: no contact burn, suitable for dusty or aggressive environments

If you need, I can also add:

  • exact parameter table,

  • installation diagram,

  • marketing text,

  • or a description of the advantages over conventional mechanical relays.
