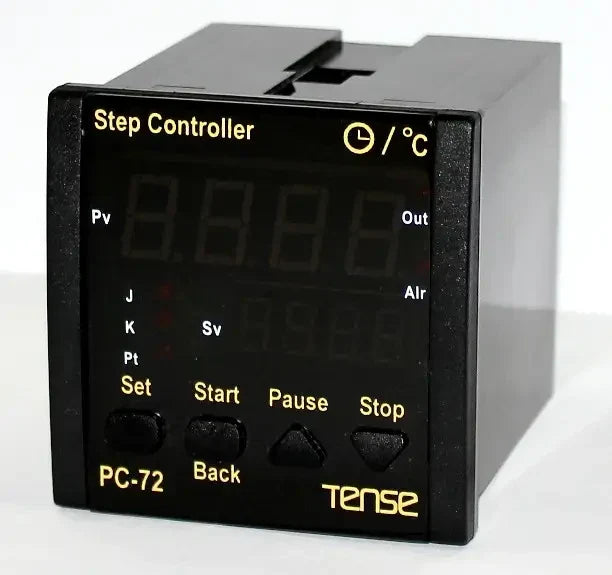

Microprocessor step/profile PID temperature controller

PID temperature controller, for panel and machine/control panel mounting, relay outputs, measuring range -100°C ... +1750°C, resolution / step 0,1ºC, 20 temperature stages / heating stages (made in Turkey, TENSE)

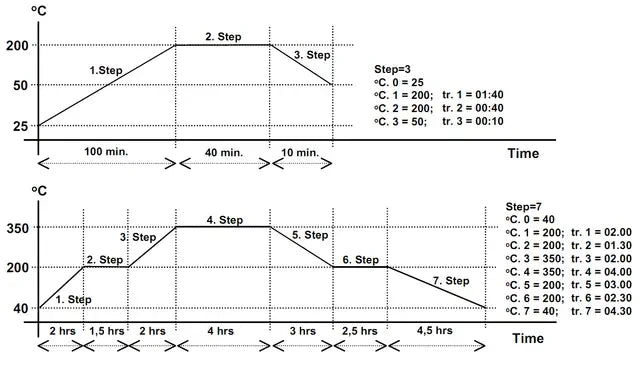

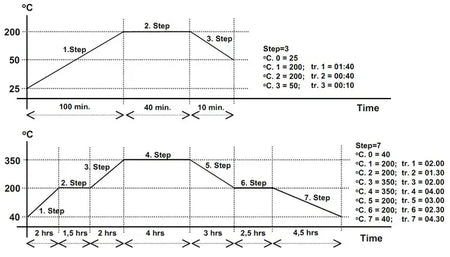

As you can see from the above charts, unlike cheap analogues, the TENSE thermostat allows you to set temperature limit points and the time it takes for the temperature to reach the set points. This greatly simplifies the programming process. In addition, the PID mode allows you to keep the system temperature as close to the set points as possible.

An important difference from the competition is also the simultaneous indication of the current temperature, set point temperature, setting step and time. It is very convenient to have the START/STOP/PAUSE/SET control buttons on the front panel - this ensures fast and efficient control of your processes.

Temperature control is done by on/off or PID control. The controller offers self-optimization, which prevents process values from being overdriven.

• Automatic tuning of PID parameters

• Setting up to 20 temperature/heating stages

• Each step is programmed for up to 18 hours of operation

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID or ON-OFF

• Automatic removal of "overshoot" in PID mode

• Anti-windup

• ON delay for OUT in cooling mode

• Password protection

• EEPROM memory for saving settings

• OUT relay outputs (NO+NC) 250VAC, 2A

Measurement range depends on the sensor and can be set using the buttons on the temperature controller.

Please do not forget to order our temperature sensors - thermocouple type J Fe-Const (metric 6/8) with temperature measurement scale: -100 °C - +600 °C. Can be with 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 m long cable --->linkto product page
