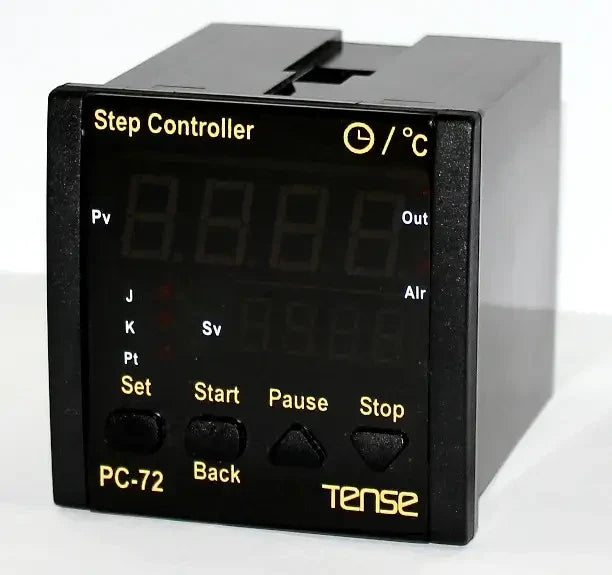

TENSE PID temperature controller for panel mounting

Product description

Panel mounted PID temperature controller designed for industrial and processing equipment.

• Relay outputs (NO+NC)

• Measuring range: -100 °C ... +1750 °C

• Resolution: 0.1 °C

• Possibility to set up to 20 temperature stages / heating steps

The controller allows precise temperature control via PID or ON/OFF mode. It offers self-optimization to minimize process value overshoot.

Main features

• Control: ON/OFF or PID

• Sensor type: T/C (J,K,T,S,R), Pt100

• PID auto-tuning: eliminates overshoot

• Anti-windup: protection against integral component buildup

• OUT turn-on delay in cooling mode

• Password protection for parameter settings

• Memory: non-volatile EEPROM

• Relay outputs: NO+NC, 250 VAC/2A

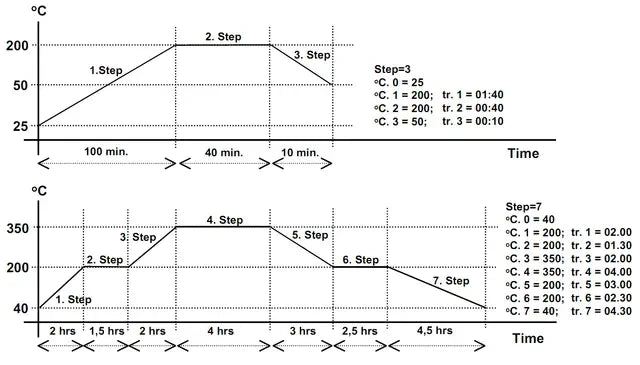

• Programming: 20 heating steps, each step up to 18 hours

• Indication: simultaneously displays current temperature, setpoint, step and time

• Control: START / STOP / PAUSE / SET buttons

Use

• Temperature control in industrial furnaces and heating systems

• Automation of processing machines

• Control of air conditioning or ventilation processes

Recommended accessories

• Temperature sensors: thermocouple type J Fe-Const (6/8 metre)

• Available cable lengths: 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, 5 m

Advantages over cheap analogues

• Setting of limit temperatures and time to reach values for each step

• Precise PID control to minimize deviations

• Clear panel with indication of current temperature, setpoint and heating steps

• Quick operation with START/STOP/PAUSE/SET buttons
