Vendor: OPAS

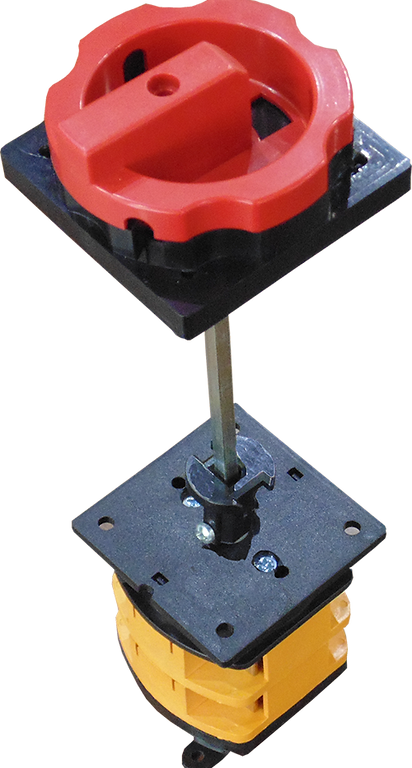

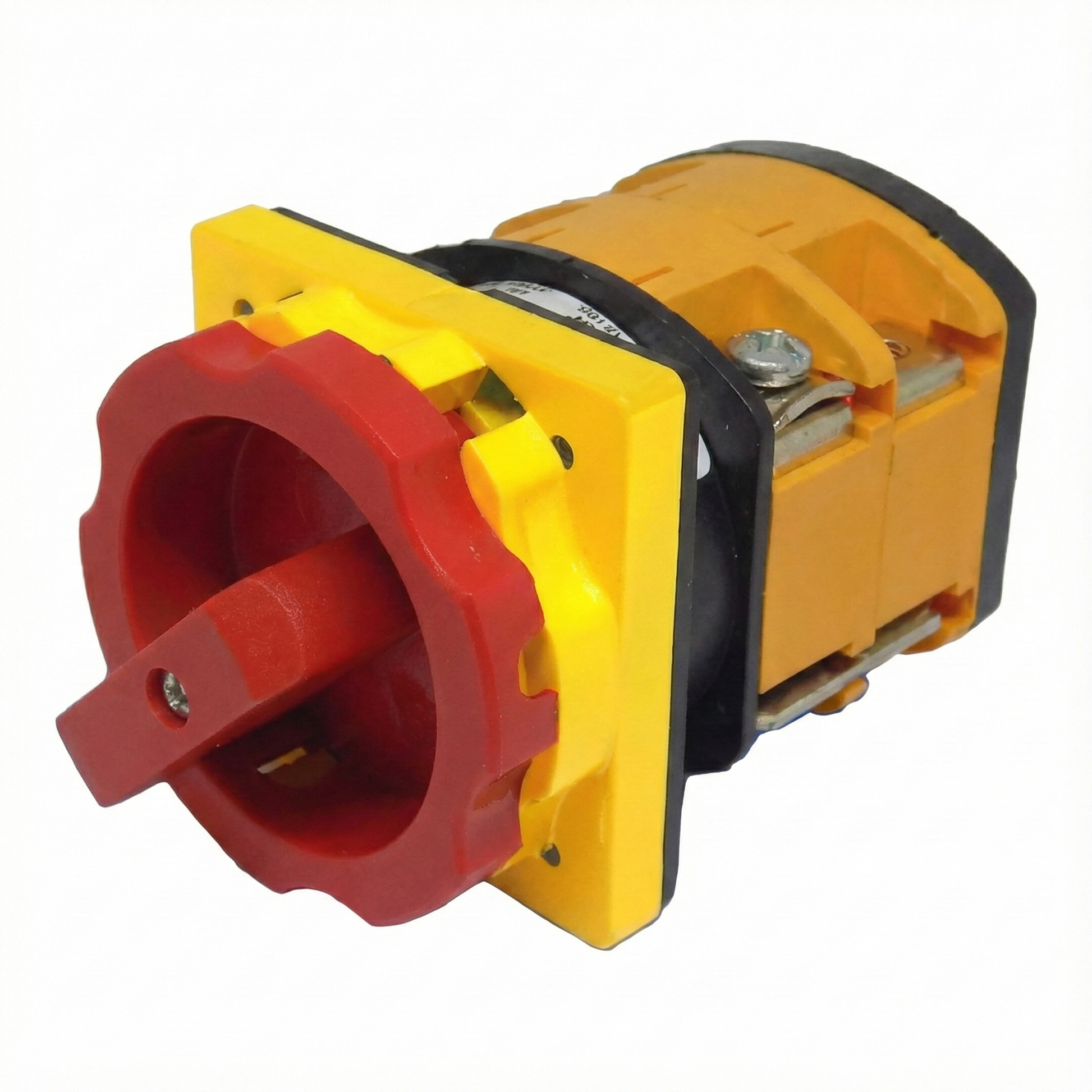

Main switch with metal axis, lockable manual door operator

Barcode: PTE3125
Regular price
€28,24
Regular price
Sale price
€28,24
excl. VAT: €23
Low stock: 8 left
Number of poles: 3 poles
Mark: 25A
  • Description
  • Payment methods
  • Warranty

Main switch with metal axis - lockable, maintenance, packet power switch PTE, OPAŞ

Product Description

The PTE three-phase rotary switch from OPAŞ (Turkey) is designed for switching and protecting power circuits up to 80 A and for controlling electric motors, including reversing.

The 1-0-2 switching scheme allows its use as:

  • standard load switch,

  • a switch for reversing the direction of motor rotation.

A key feature is the mechanical lockout in the "Off" position, which prevents opening the switchboard door or removing the cover if the circuit is energized. This safety feature ensures compliance with technical and safety standards.

Product advantages

  • Full locking of the door in the "Off "position - ensures safety during maintenance

  • Clear locking in three positions - prevents accidental tripping

  • Compact size - easy to install in a standard cut-out

  • Reliability - suitable for industrial plants and three-phase circuits

Technical parameters

ParameterValue / option
Switch typeRotary, packet power switch
Number of poles3-4 poles
Rated current25-80 A
Switching diagram1-0-2
LockableYes, metal axis/manual door operator
Mechanical locking"Off" position
Axis materialMetal
Mounting typeOn switchboard door or panel

Application

This main switch is ideal for:

  • Switchboards and control panels

  • Machine tools

  • Pumps, fans, conveyors

  • Compressors and elevator equipment

  • Any three-phase circuits requiring reliable switching and compliance with electrical safety standards
