Vendor: TENSE

TK40 - Current measuring transformer 300/5 400/5 500/5 600/5 800/5

Barcode: TK403005302
€19,48
€19,48
excl. VAT: €16
12 in stock
Mark: 300/5
  • Description
  • Manuals
  • Payment methods
  • Warranty

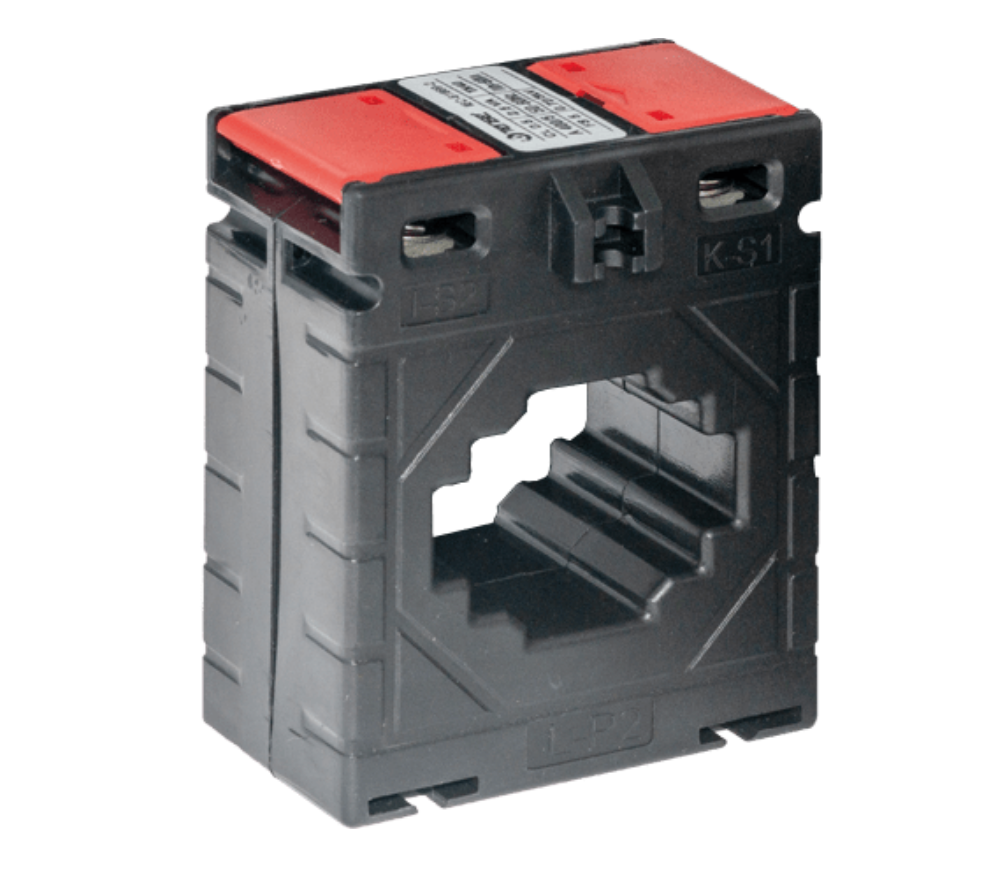

Measuring current transformer TK40 - TENSE

Product description:
The measuring window of the TK40 current transformer is designed for indirect AC current measurement in low voltage installations and industrial applications. The transformer converts high primary current to standard secondary current suitable for measuring, controlling or protecting equipment.

Features:

  • Precision current conversion with 0.5S accuracy class

  • Compact and durable housing made of non-flammable, flame retardant ABS

  • Terminal block with non-removable cover, suitable for high gauge conductors

  • Resistance to short-circuit current: Ith = 60 × In

  • Resistance to constant current: Id = 1 × In

  • Operating temperature: -25 °C ... +85 °C

  • Mounting: KK0001 or KK0002

  • Test voltage: 3 kV for 1 minute

  • Max. system voltage: 0.72 kV

Technical parameters

Parameter Value
Variants available

300/5, 400/5, 500/5, 600/5, 800/5
Load capacity 3.75 VA
Accuracy class 0,5S

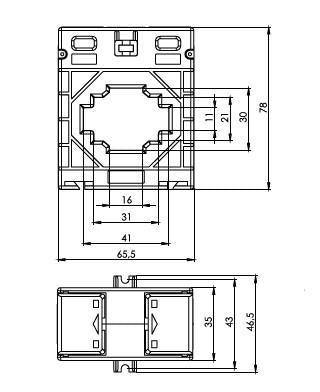

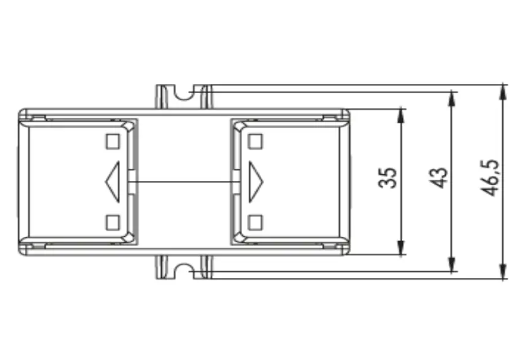

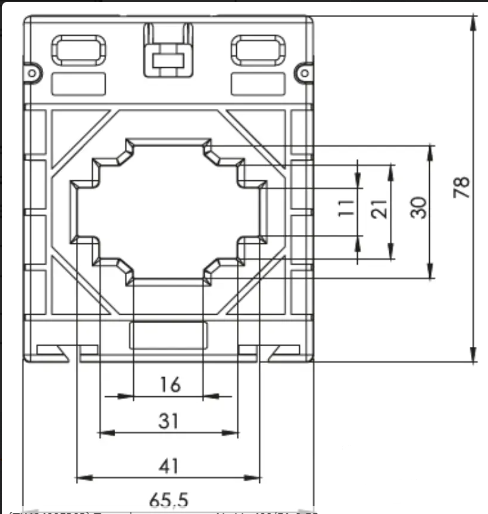

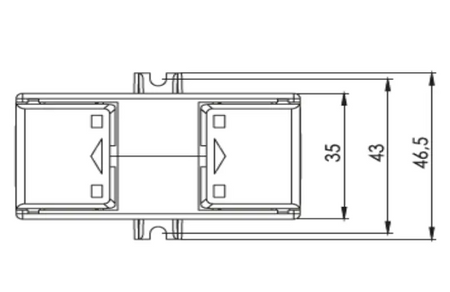

Primary winding 40 × 10 mm
Inner hole (conductor diameter) Ø 30 mm
Rated frequency 50-60 Hz
Impact current limitation FS 5
Installation KK0001 / KK0002
Housing material Non-flammable, flame retardant ABS


Standards:
IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN 57414, BS3938, BS7626, EN 61869-2

Quality control:
Each transformer is individually tested at the factory, the results are recorded in a test report and attached to the transformer.

Download on

Technical information on current transformers (996 kB) - to be sent on request
