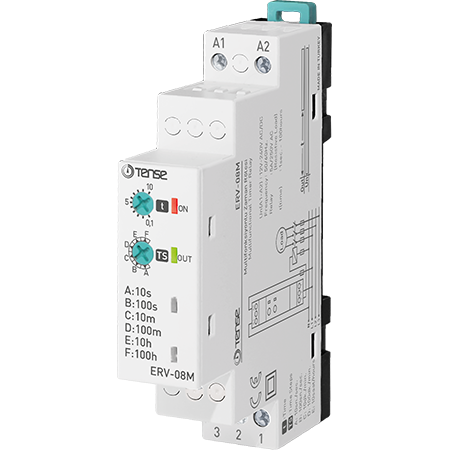

Time delay relay , 12V - 240V AC/DC 1 / 10 / 100 sec min hr

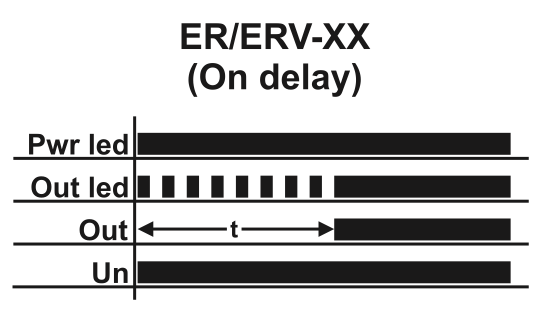

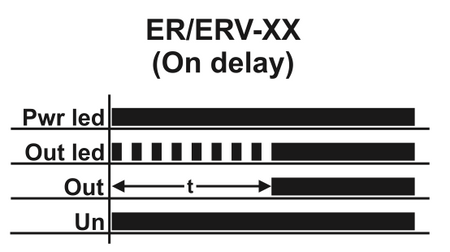

ON-DELAY time relay monofunctional 12V - 240V AC/DC with 1 switching contact.

The time delay relay is used to switch loads in stages: electric boilers, furnaces, space heaters, etc., thus preventing current surges in the network and circuit breaker tripping due to large surges.

It can also be used to coordinate the switch-on time of several devices in machines, appliances or other equipment.

Time range:

A - 1-10 sec

B - 10-100 sec

C - 1-10 min

D - 10-100 min

E - 1-10 h

F - 10-100 hrs

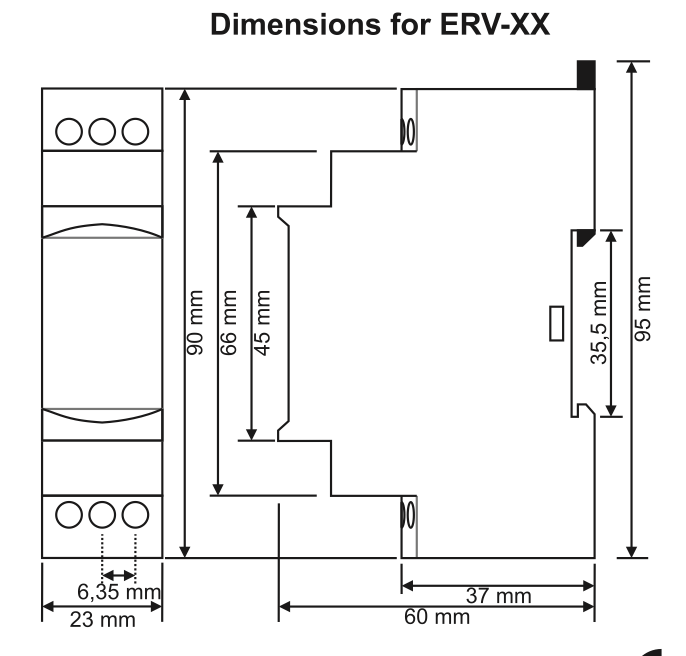

The time relay is mounted on a standard 35mm DIN rail
