Phase separation terminal block PDB207
- Regular price
- €7,00
- Regular price
-
- Sale price
- €7,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

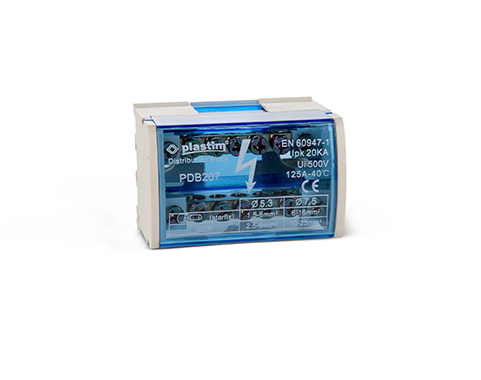

Terminal block for phase separation on DIN rail, Plastim, made in Turkey.
The compact Plastim two-pole distribution block is used to safely and clearly branch the phase and neutral conductors in switchboards. The design includes two separately insulated busbars (2 poles), each with 7 connection points. Robust brass bridges ensure high conductivity and low transient resistance. The plastic cover provides reliable protection against accidental contact. The block is designed for mounting on a standard DIN 35 mm support rail or for mounting with screws on a mounting plate.
Technical parameters
Product type.
Number of poles: 2
Rated current: 125 A
Number of terminals per pole: 7
Total number of terminals: 14 (2×7)
Terminal configuration per pole: 5× ø 5.3 mm + 2× ø 7.5 mm
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Width: 65.0 mm
Depth: 45.5 mm
Height: 51.0 mm
