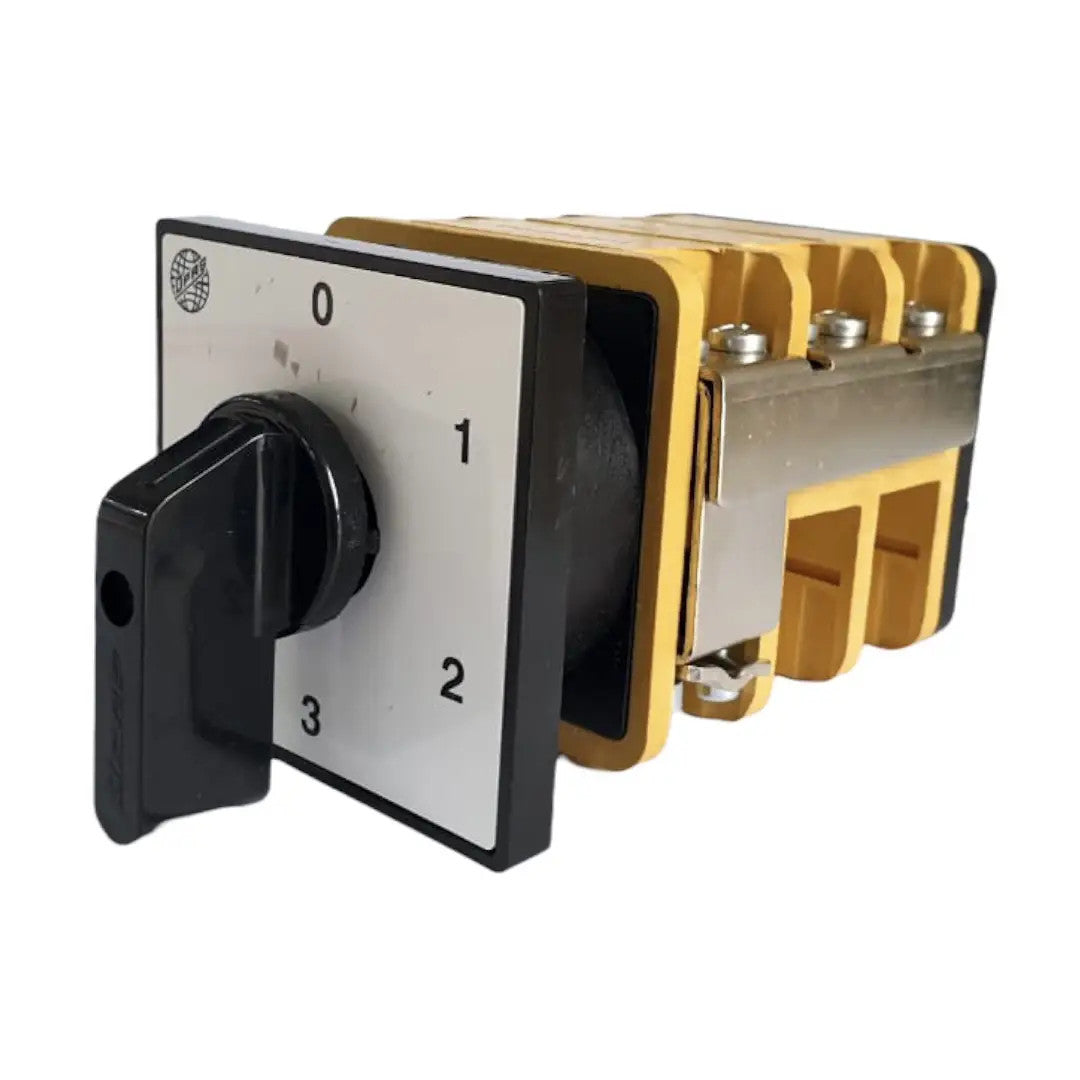

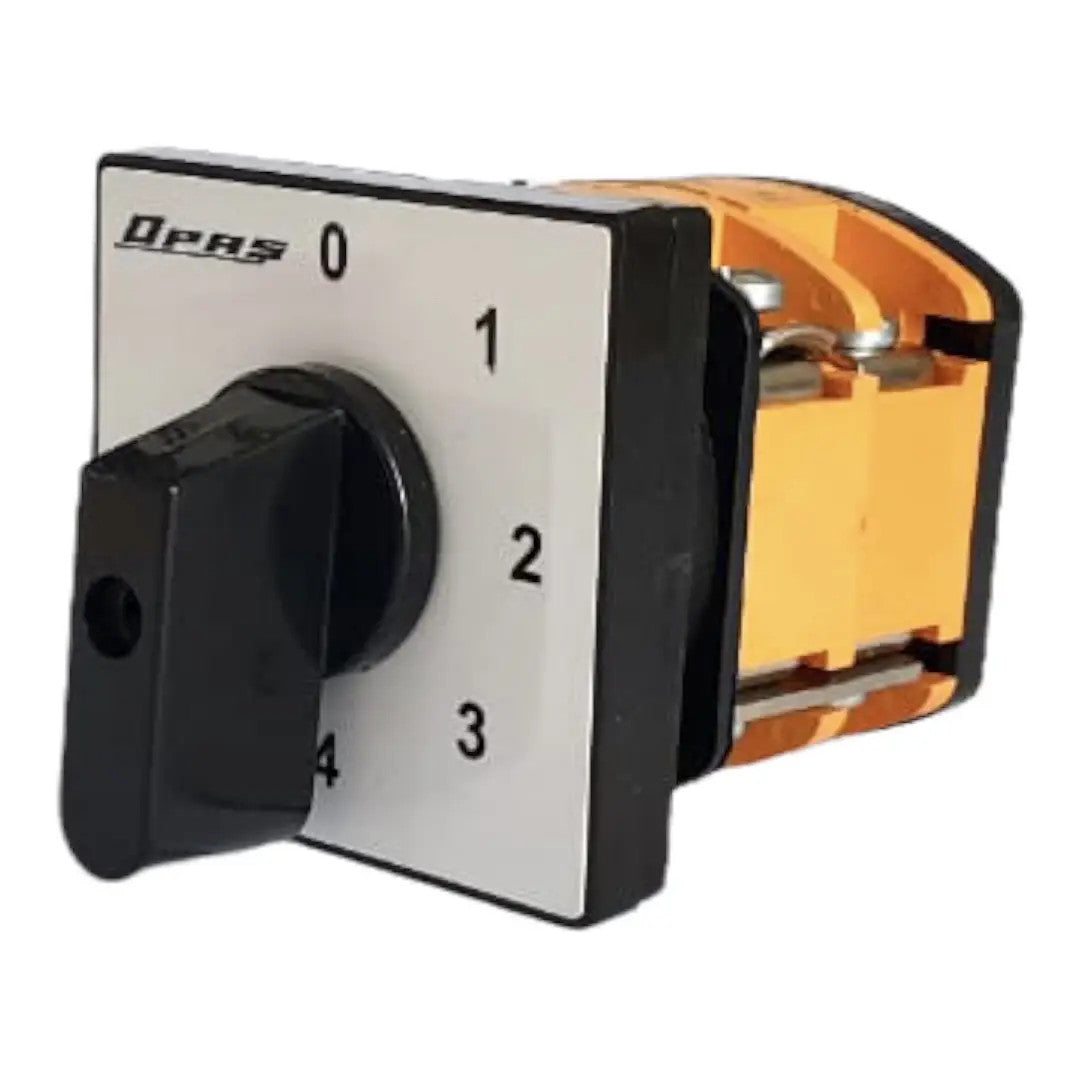

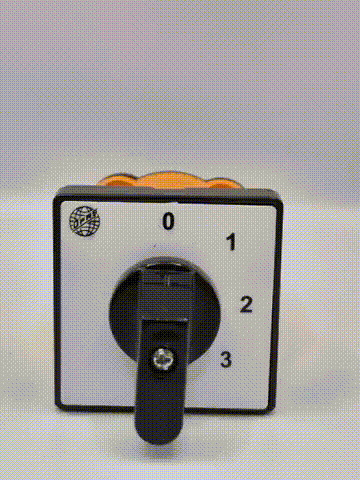

Name: Step switch 0-1-2-3-4 degree rotary switch, 1-2 poles, 10-160A
Brand: OPAS
SKU: YPT114010
Price: 15.68 EUR
Availability: InStock

Description
Payment methods
Warranty

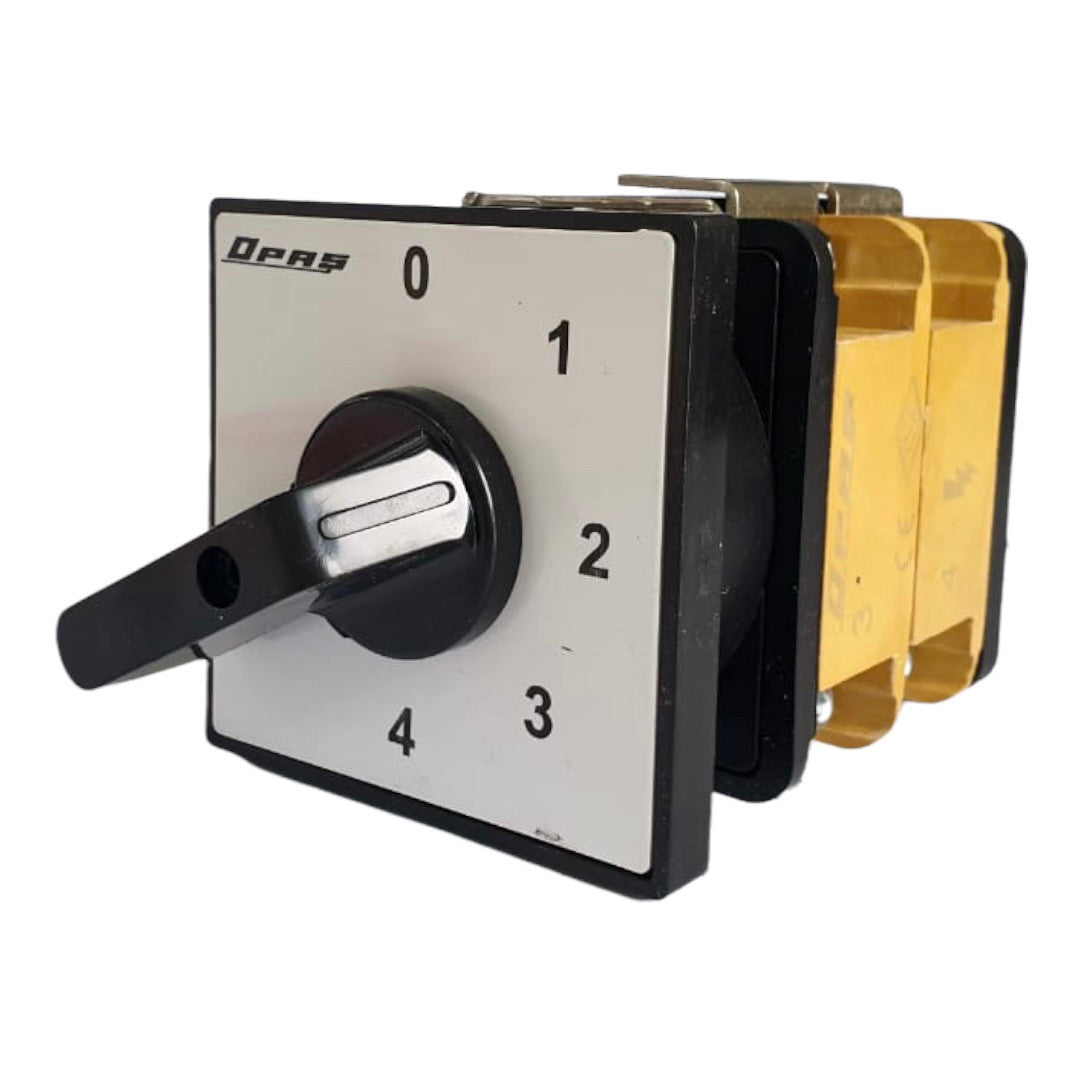

Step (step) switch 0-1-2-3-4, rotary switch, 1-2 poles, 10-160A, YPT114, manufacturer OPAŞ (Turkey)

10A, 16A, 25A, 32A, 40A, 63A, 100A, 125A, 160A

The 0-1-2-3-4 step switch can be used, for example, to select one of three phases and a generator to power single-phase electrical appliances or to switch on one of several appliances/modes/processing program steps, etc.

Packet switches are designed for manual switching of low voltage circuits. They are used for making main and control circuits, switching on and off electric motors and other low power devices. The advantages of this series of switches are compact size, electrical and mechanical resistance, as well as high on/off capabilities.

The multi-position scheme 0-1-2-3-4 is used for switching between different operating modes of the equipment (speed of movement, heating temperature).

Technical specifications:

Articulated design.
Type of device: Rotary switch

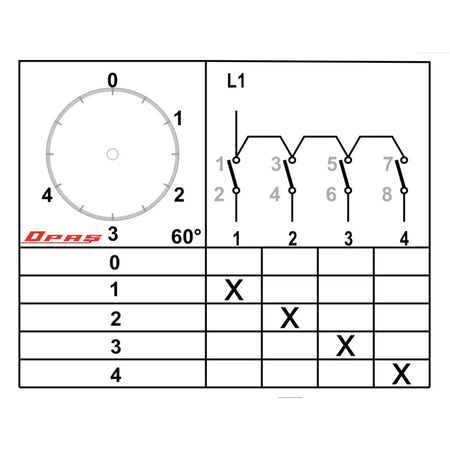

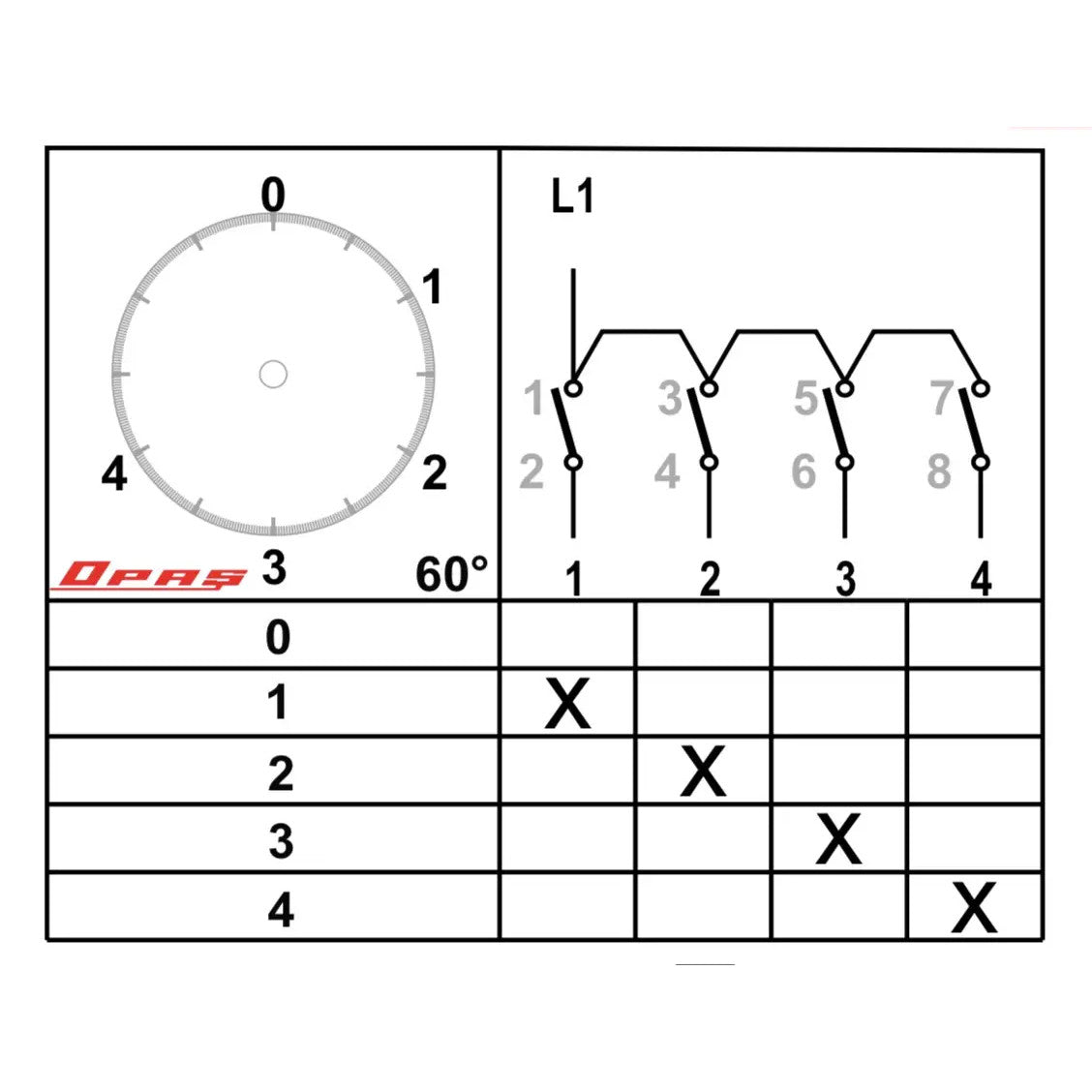

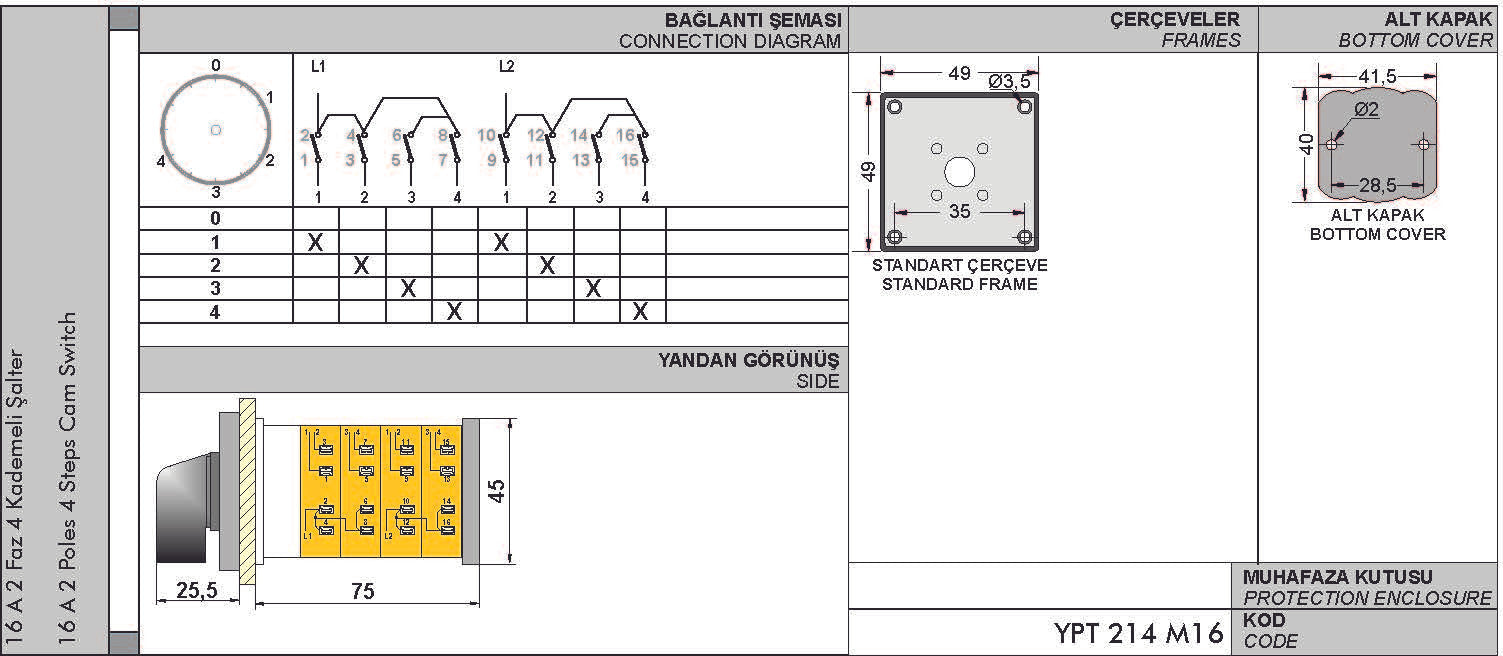

Switching scheme: 0 - 1 - 2 - 3 - 4
Number of poles: 1-2 poles
Type: Built-in
Number of Phases: Single Phase
Protection: No
Degree of protection against dust and water: IP20
Operating temperature range: -30 to +55°C
