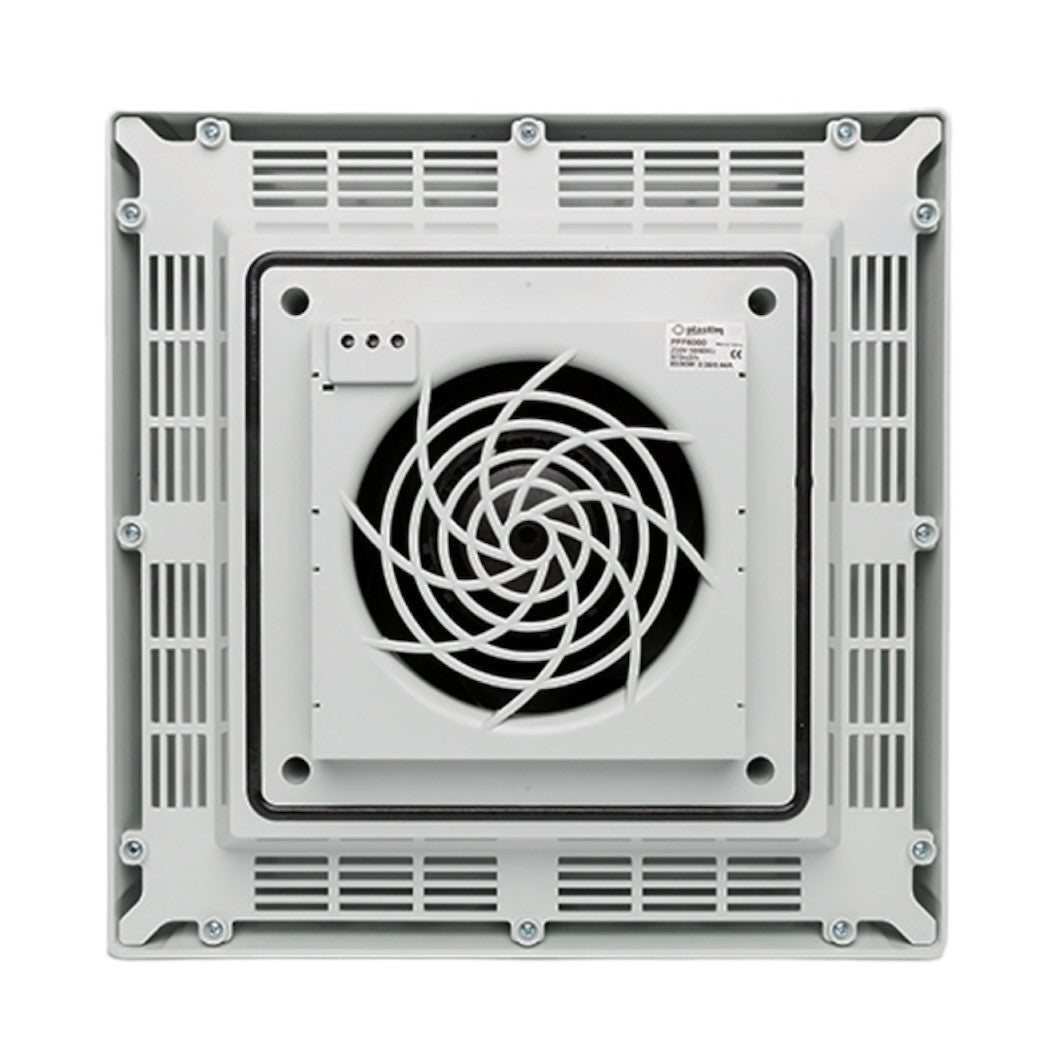

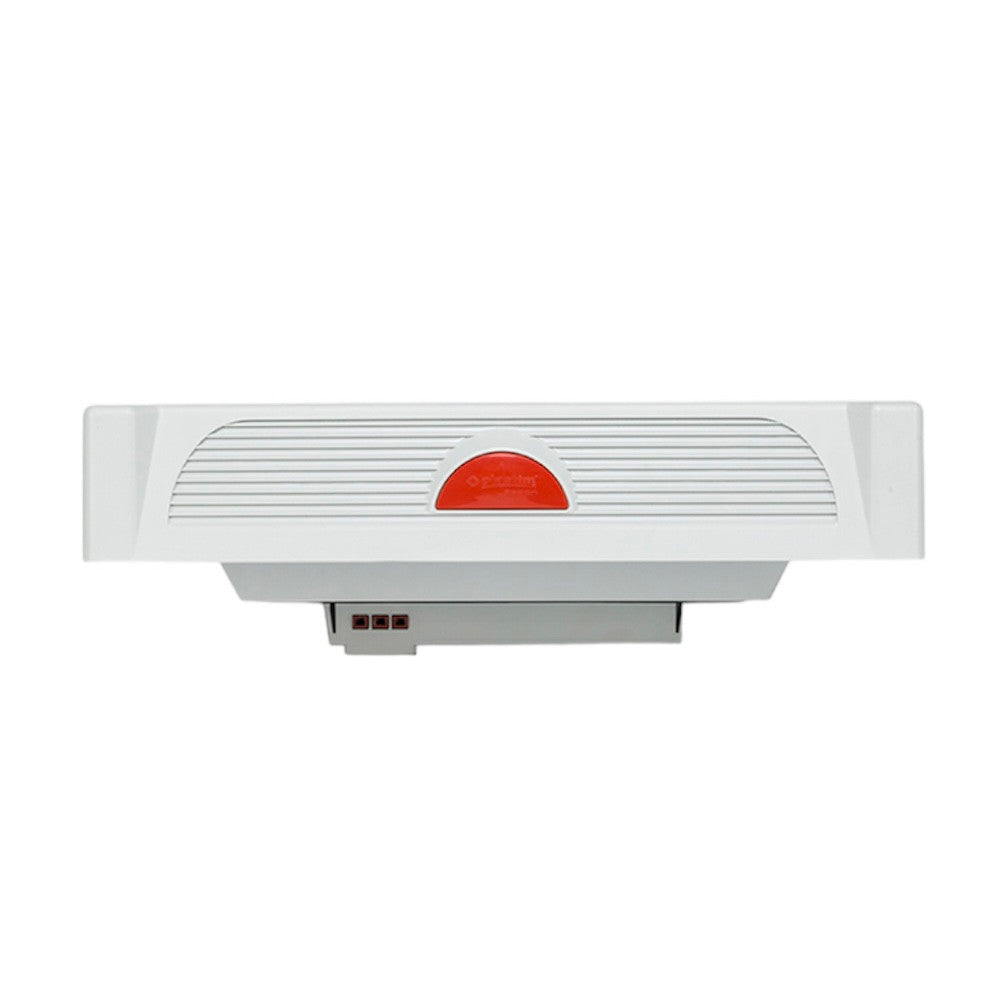

Fan in housing for installation on the roof of the switchboard, PTS4000, PLASTIM (Türkiye)
This fan is designed for use in a microclimate system in a distribution board or automation panel and is typically used with a PTVT or PTHVT thermostat. It is installed on the roof of the enclosure, allowing excess hot air to be extracted from the enclosure volume as efficiently as possible.
Although the fans have the same overall dimensions, they differ in the volume of air emitted and noise level.
- External dimensions: 364x364x107 mm
- Installation size: 178x178mm
- Volume flow rate: 400 m3/h
- Noise level: 62 (64) dB(A)
- Bearing: Ball bearing
- Lifetime: 50000 h
- Operating voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.11/0.15 A
- Rated power: 25/32 W
- Electrical connection: 3-pole 2.5 mm2 terminal
- Direction of flow: Air flow is directed from inside to outside of the cabinet
- Operating temperature: -10/+70 °C
- Degree of protection: IP54
- Plastic material: UL94 V0 ABS Flame retardant
- Seal: Polyurethane seal
- Colour: RAL 7035
- Weight: 2.6 kg
- Installation: Fast Clip-on
To provide automatic air exchange and temperature maintenance with this fan you will need either a simple bimetal thermostat or a more complex temperature controller, both devices can be purchased on our website.
