PTHVT Dual / double bimetal thermostat NC+NO switching, range 0-60°C Plastim
- Regular price
- €14,44
- Regular price
-
- Sale price
- €14,44
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

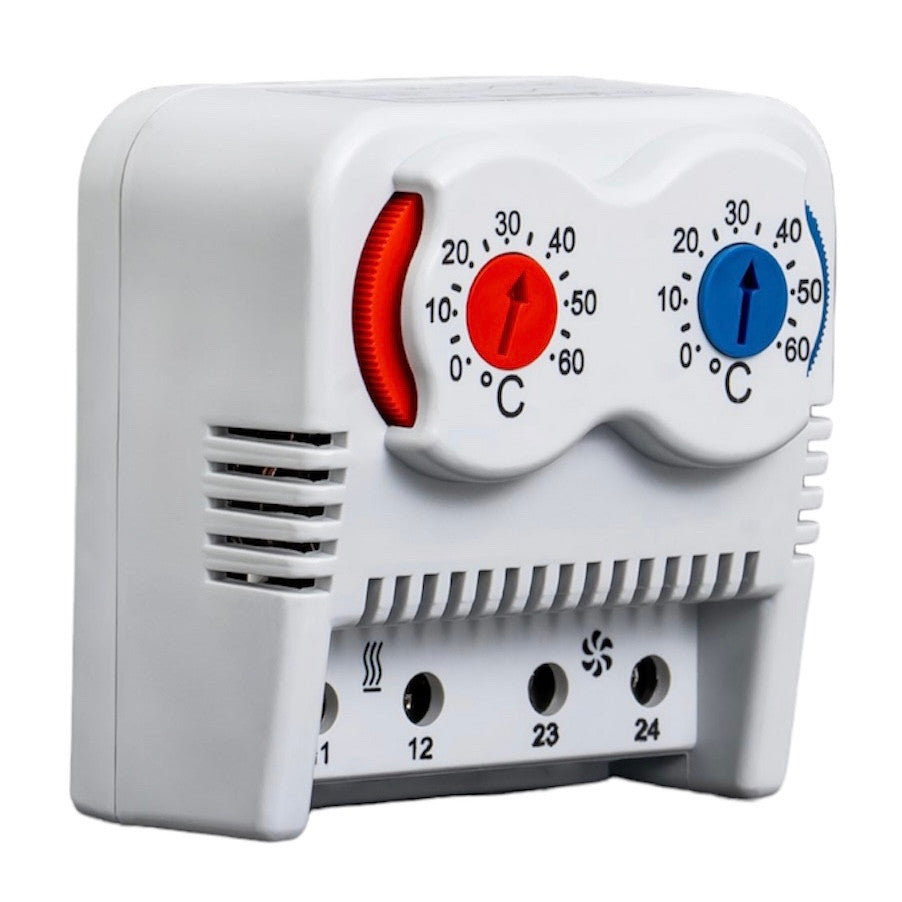

Dual bimetal thermostat PTHVT Dual thermostat NC+NO (cooling/heating), switching, 0-60°C, bimetal
Single thermostat. 220(250) V AC. Bimetal sensor with type, heating function. electrical connection with 4 terminals 2,5mm2. mounting mode on 35mm DIN rail, cross rails, on mounting panel.
Used to connect both fans (coolers/air conditioners) and heating elements - heating elements, panel heaters, heated floors, heating cables, heat fans.
Characteristics |
PTHVT |
Contact type |
NC+NO |
Setting range |
0-60 / 0-60 °C |
Potentiometer colour |
red / blue |
250V AC / 120V AC |
10 (2) 15 (2)A |
Sensor type |
Bimetal |
Contact Type |
Snap Action |
Lifetime |
> 100.000 |
Electrical connection |
4-pole terminal, screw terminals |
Plastic material |
UL94 V0 ABS Flame Retardant |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 /+80°C |
Installation |
DIN rail 35mm |
Dimensions HxWxD |
65x59x42 mm |
Weight |
80 g |
