Phase control relay FKV-11 | TENSE

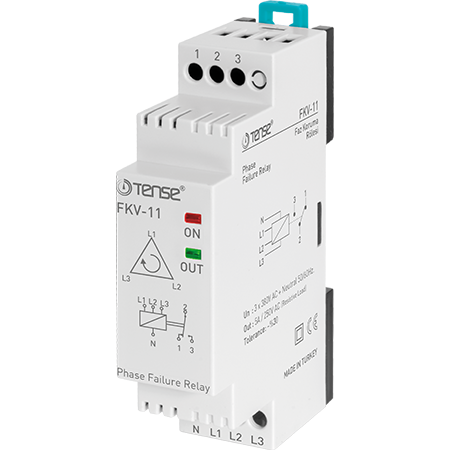

The FKV-11 phase control relay is designed to protect three-phase equipment against key faults in the power network - especially phase jamming (phase reversal), phase failure and phase asymmetry. The relay provides reliable operation of electric motors, pumps, compressors and other three-phase equipment.

The model features a fixed asymmetry of 30% and is designed for installation on a single DIN rail.

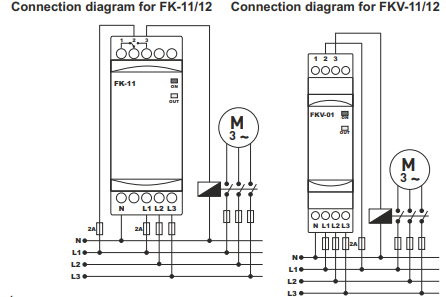

How the FKV-11 relay works (operating algorithm)

Normal operation

• All three phase voltages are present.

• The phases are connected in the correct order.

• Voltage is within the allowed range.

• Contacts 2-3 are switched, LED OUT → output active.

Asymmetry or voltage deviation

• If the voltage of one phase changes by more than 30%, or if the sum of the multidirectional value changes exceeds this limit:

  • the ASM LED (asymmetry indication) lights up,

  • contacts 2-3 will disconnect,

  • contacts 1-2 switch on,

  • OUT LED goes off.

Return to normal

• If the voltage returns to the allowed range,

• the relay will reactivate the output and the contacts will switch back to 2-3 closed.

Main features and benefits

• Protection against:

  • Phase failure,

  • incorrect phase sequence,

  • phase asymmetry (fixed 30%).

• Visual status indication by LED (OUT / ASM).

• Fast response to mains faults.

• Compact design - only 22.5 mm wide.

• Simple DIN rail mounting.

Technical parameters

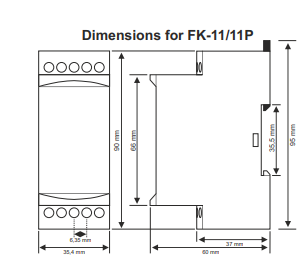

Dimensions

• Length: 85 mm

• Height: 77.6 mm

• Width: 22.5 mm
