Plastic transparent door 500x700x250mm IP65 PP3020
- Regular price
- €152,80
- Regular price
-
- Sale price
- €152,80
- Unit price
- per
Couldn't load pickup availability
Frequently bought together
– Lock for P-BOX cabinets
- Regular price
- €11,16
- Regular price
-
- Sale price
- €11,16
- Unit price
- per
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

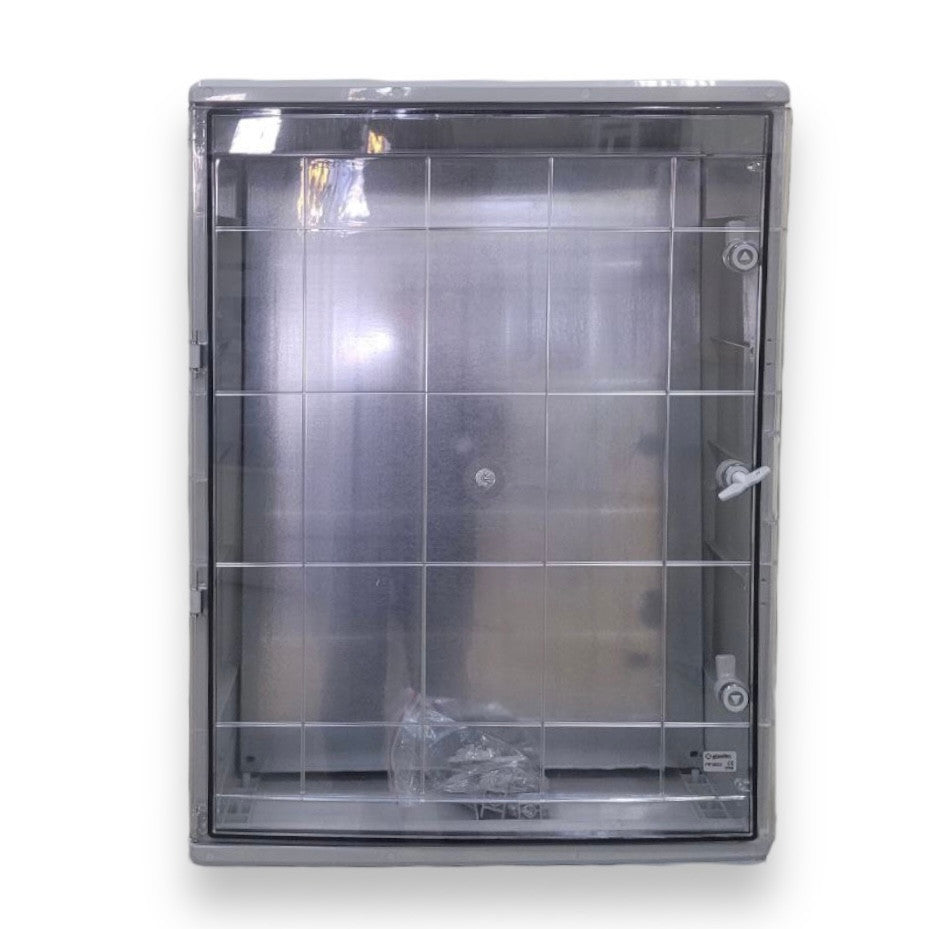

Plastic switchboard, transparent door, seam 500x700x250mm, IP65, PP3020 Plastim
The new plastic waterproof enclosures manufactured by the Turkish company Plastim open a new page in the use of plastic protective enclosures for automation and power distribution tasks.
-
Reinforced panties with metal pin
-
New enclosure design with corner reinforcements and increased thickness of the door and the whole product.
-
Extended temperature range in which the protector retains all of its improved properties -35/+60C
- Fully corrosion resistant lightweight solid galvanised metal mounting panel
- Can be fitted with transparent doors and DIN rails reinforced metal pin panties;
MAIN TECHNICAL FEATURES
- Mounting panel: made of 1 mm thick galvanised steel
- Material: HB ABS halogen-free + polycarbonate (door).
- Width: 500 mm
- Height: 700 mm
- Depth: 250 mm
- Colour: light grey
- Enclosure: IP65, IK08
- Rated voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
- Weight: 10.10 kg
