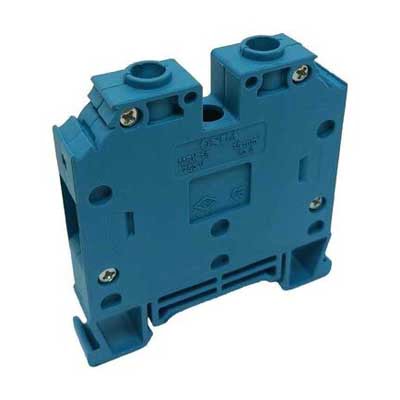

ONKA 35mm2 Screw rail connector terminal block DIN rail terminal 2-wire blue, 1010085

Threaded busbar rail connector / DIN rail terminal 2-wire blue, ONKA, made in Turkey

The ONKA coupler / terminal block is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made of high quality materials, the connector guarantees long term use and resistance to mechanical damage.

Technical parameters

Cross section of the connected single wire up to: 35mm2
Colour: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/Copper
Torque: 2.0 Nm
Connection position: lateral / side
Cable strip length: 18mm
Electrical connection type: screw clamp
Rated voltage: 750V
Rated current: 125A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
