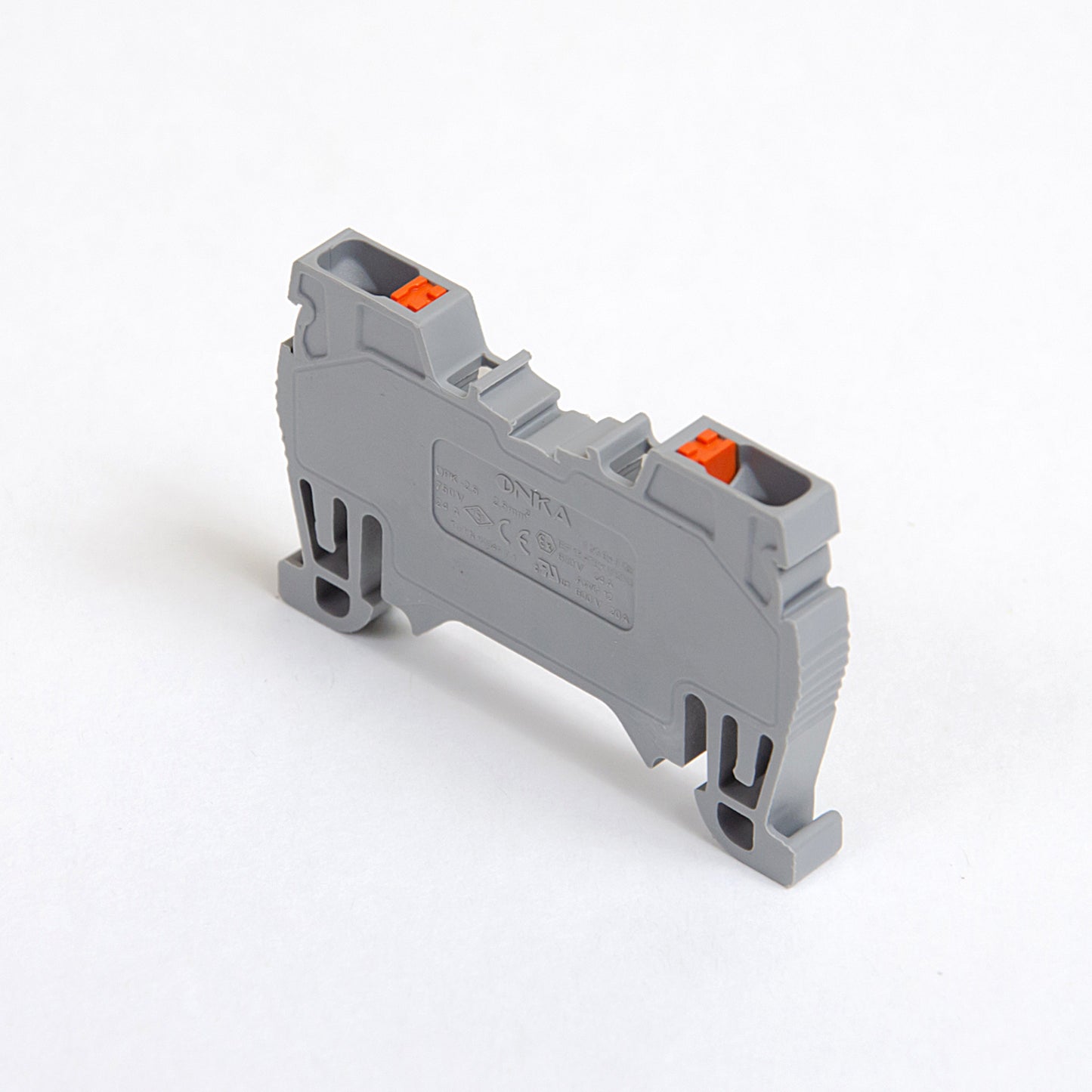

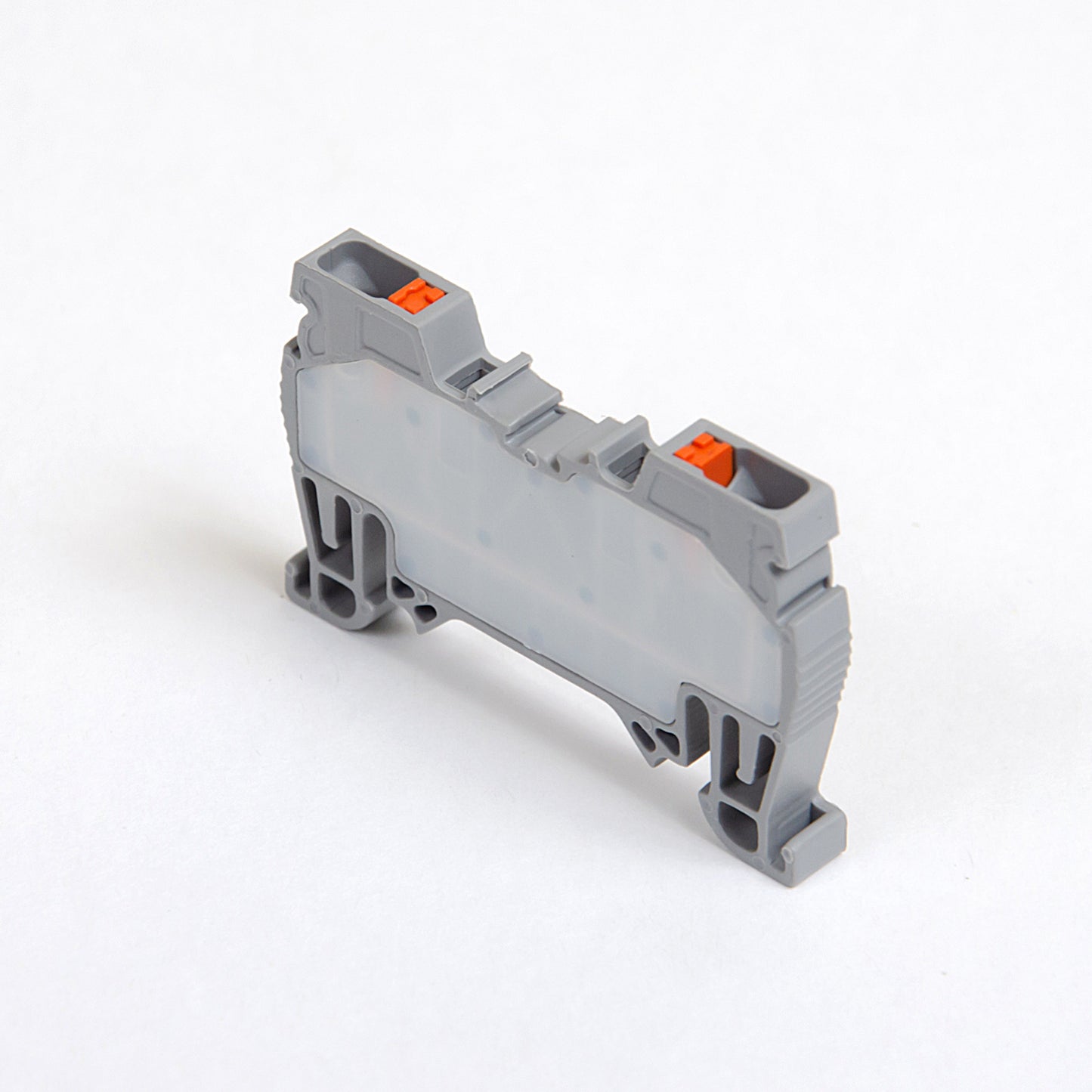

ONKA 2,5mm2 spring rail connector terminal block DIN rail terminal 2-wire grey, 1020013
- Regular price
- €0,52
- Regular price
-
- Sale price
- €0,52
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Spring busbar rail connector / DIN rail terminal 2-wire, retractable contact, grey, ONKA, made in Turkey
ONKA's compact installation rail couplers provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.
Technical parameters
Cross section of the connected single wire up to: 2.5mm2
Colour: grey
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: Top / top
Cable strip length: 9mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 24A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
Online card payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email
COD - you pay the payment according to the payment order to the driver of the transport company
By bank transfer- you will receive an advance invoice to your e-mail no later than the next working day, on which you will find the account number that you will enter during payment.
On invoice - this payment option is available to partners who have signed a framework agreement with our company.
If you would like to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty and meets all EU requirements.
We also have free shipping (for orders over 100 EUR), a flexible system of discounts and promotions. The technical knowledge and experience of our employees enable us to provide high-quality advice and, if necessary, offer alternatives to electrical products.
The electrical equipment we supply meets high quality standards, has a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of goods is not charged.
