Multifunctional time relay time range: 0.1 s - 30 h 12V-240V AC/DC
Failed to load pickup availability
Multifunction time relay (10 functions) 12V - 240V AC/DC with 1 switching contact.
The time relay is multifunctional, designed to control time processes in automation systems in production and household. This relay can be used in industrial equipment - coffee or seed roasting, cooking of meat products, packaging / wrapping lines, as well as in houses or apartments, for example, to control a fan on the toilet or lighting on the staircase.
The 10 built-in time functions cover a wide range of tasks: for example, to organize automatic ventilation processes, opening/closing windows, periodically switching on heating or ventilation, for lighting or rotating advertising signs, in washing machines, bouncing control inputs, rotation - delay on, delay off, delay on and off at the same time, etc.
It should be noted that this time relay is also versatile in terms of performance - it can operate with AC and DC current in the range of 12 to 240 volts!

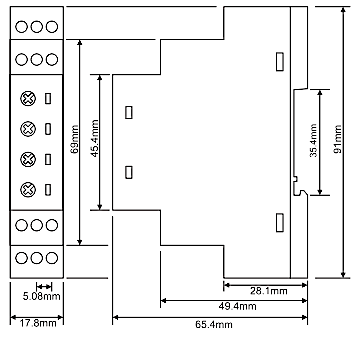

The time relay is mounted on a standard 35mm DIN rail

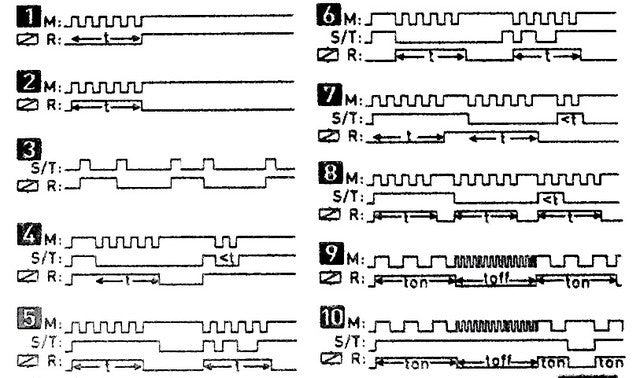

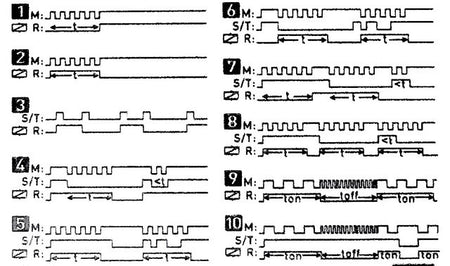

- Bistable relay 12v 24V 48v 110v 230 AC DC
- Delayed start 12v 24V 48v 110v 230 AC DC
- Delayed return 12v 24V 48v 110v 230 AC DC
- Gap start flasher 12v 24V 48v 110v 230 AC DC
- Delayed start-up after switching and delayed 12v 24v 48v 110v 230 AC DC
- Gap-start flasher 12v 24V 48v 110v 230 AC DC
- Delayed start after switching on and delayed return after switching off the control contact (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
- Pulse generator 12v 24V 48v 110v 230 AC DC
- SINGLE SHOT falling edge 12v 24V 48v 110v 230 AC DC
- Delayed return after SINGLE SHOT 12v 24V 48v 110v 230 AC DC

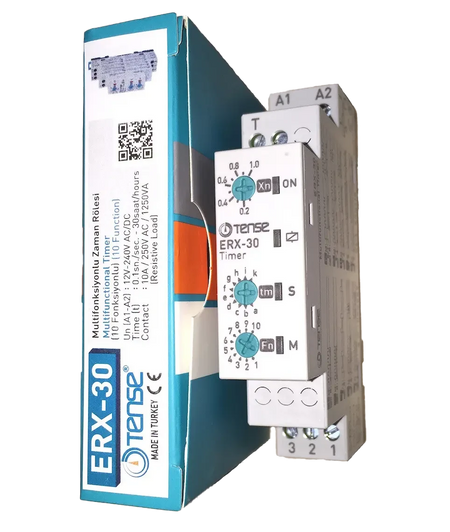

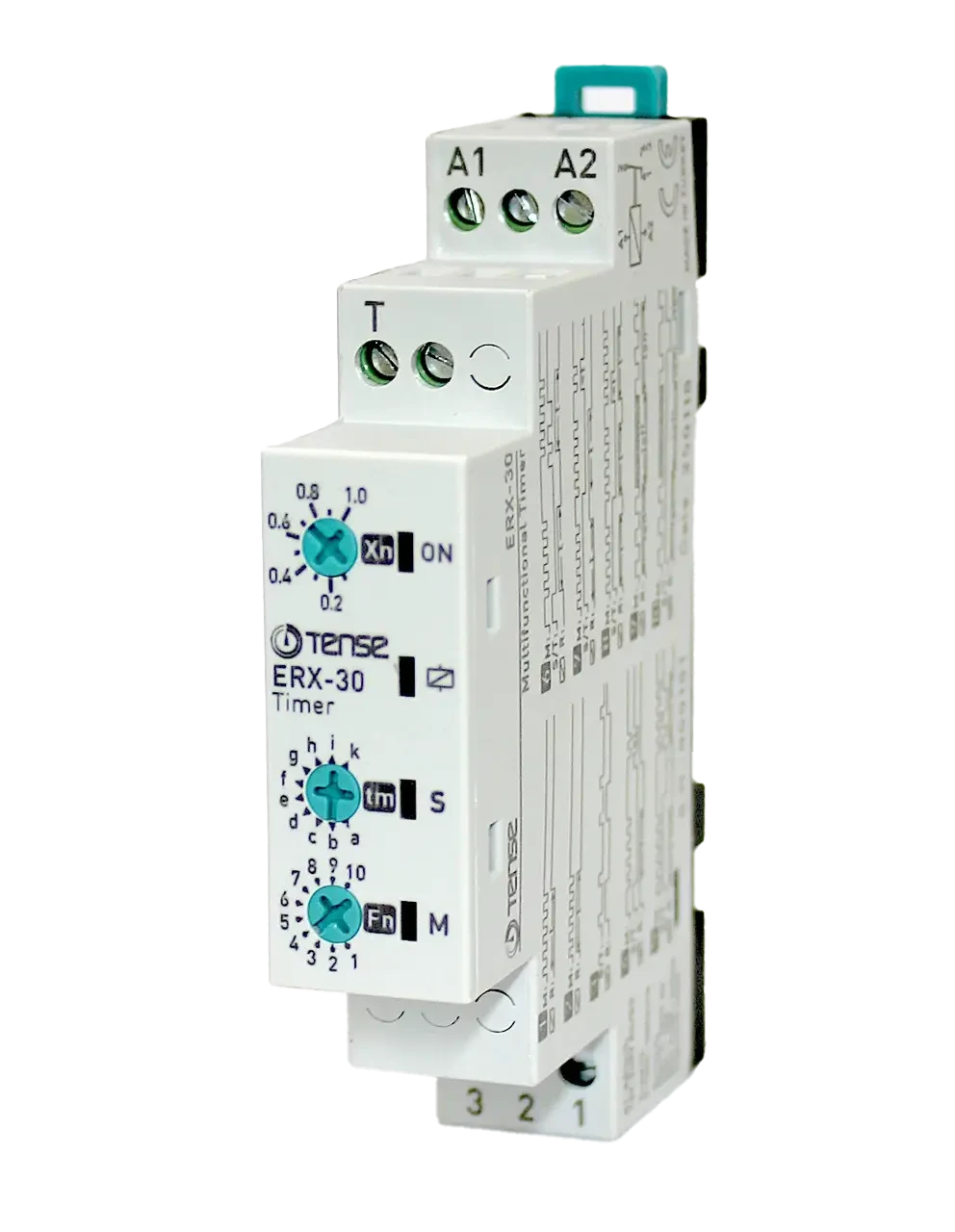

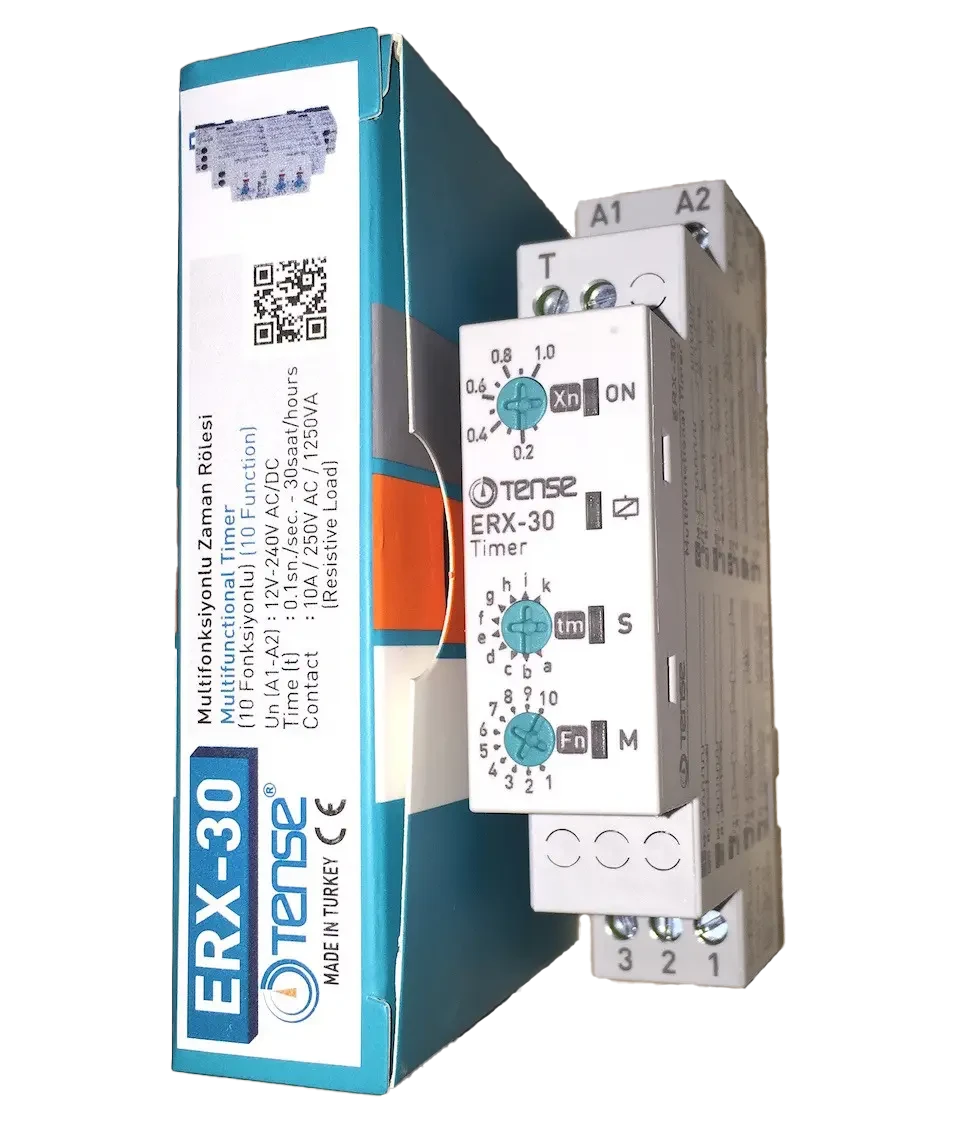

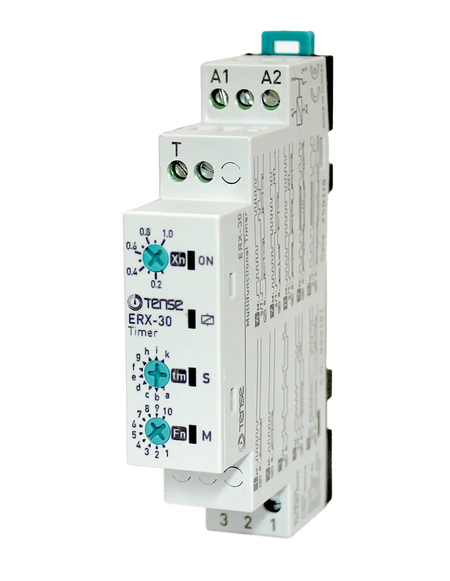

The ERX-30 universal time relay easily replaces more expensive analogs on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003
