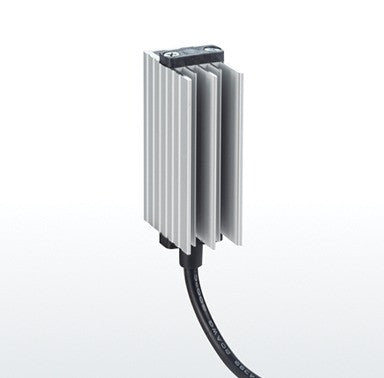

Mini switchboard heater PTC 15W, MPHT15, Plastim

Mini electric (PTC Body heater, post-tension heater) switchboard heater with anodized aluminum heat sink and overcurrent protection, for DIN rail installation with 15 watts, 110-220 volts AC or DC, MPHT15, Plastim - made in Turkey.

• Heating power: 15W

• Operating voltage: 100-250V AC/DC

• Maximum current: 2A

• Heating element type: Self-regulating PTC resistor

• Overcurrent protection: Electronic thermal overload relay

• Electrical connection: 30 cm lead wire, N-L-E

• IEC Protection Class: Class II

• Degree of protection: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Aluminium profile, anodized

• Mounting: 35mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 60x50x27mm

• Weight: 0.11 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously incandescent lamps were used for these purposes - but it is clear that this method does not ensure compliance with modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also guarantee safety and durability of operation.

All heaters are equipped with electronic surface overheating protection, which provides an additional guarantee of safe operation.

Due to the high demands on cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric.

Agree that this approach to supplier selection favourably differentiates Plastim's high quality heaters from cheap Chinese analogues.

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetal thermostat or a more complex temperature controller. Both devices can be purchased on our website.
