Fan with filter, 100 (140) m3/h, 160x160, 230V 50/60Hz IP54 PTF1500 Plastim

Barcode: PTF1500

Regular price: €34,00
Regular price
Sale price: €34,00
Unit price: per

excl. VAT: €28

98 in stock

Product variants

Description
Manuals
Payment methods
Warranty

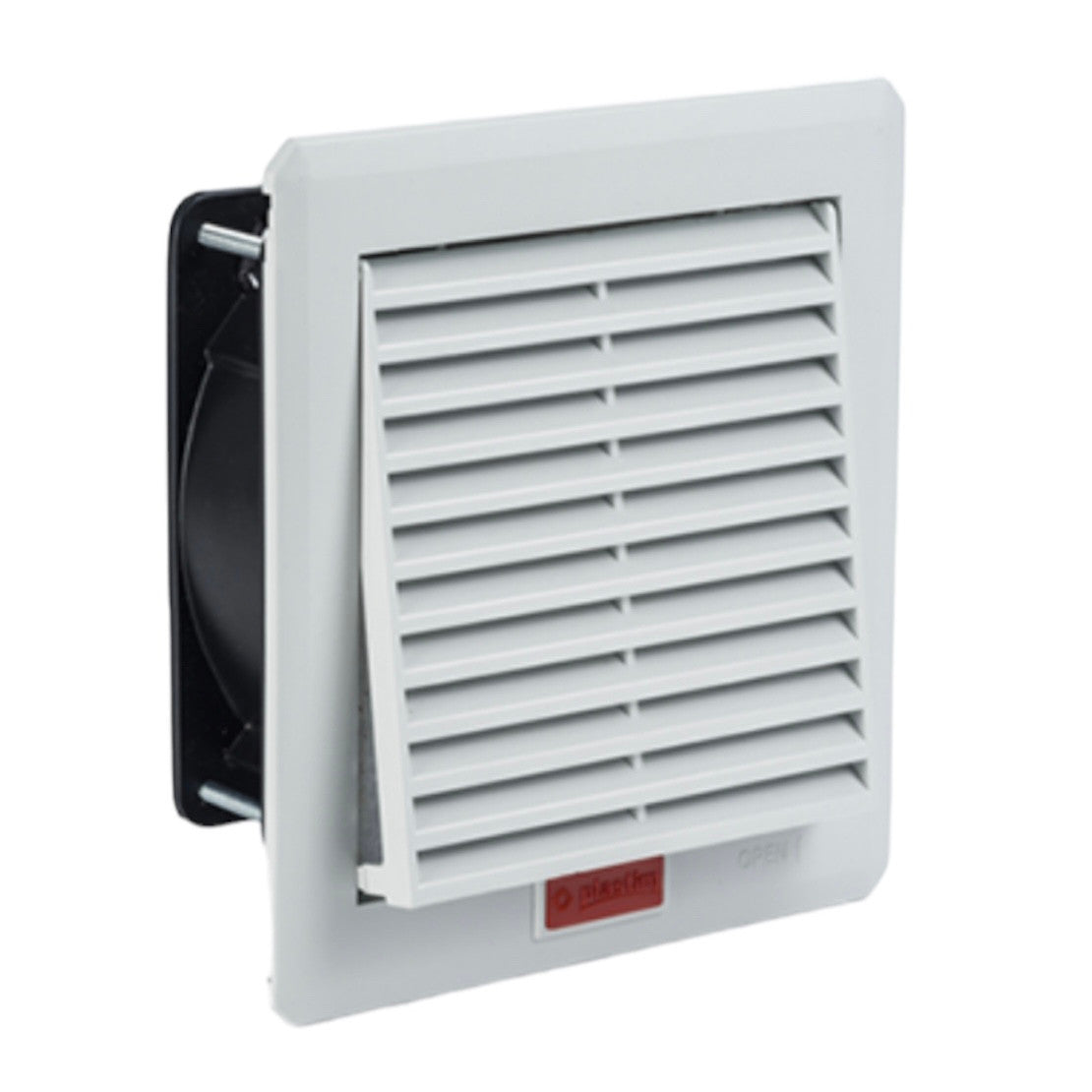

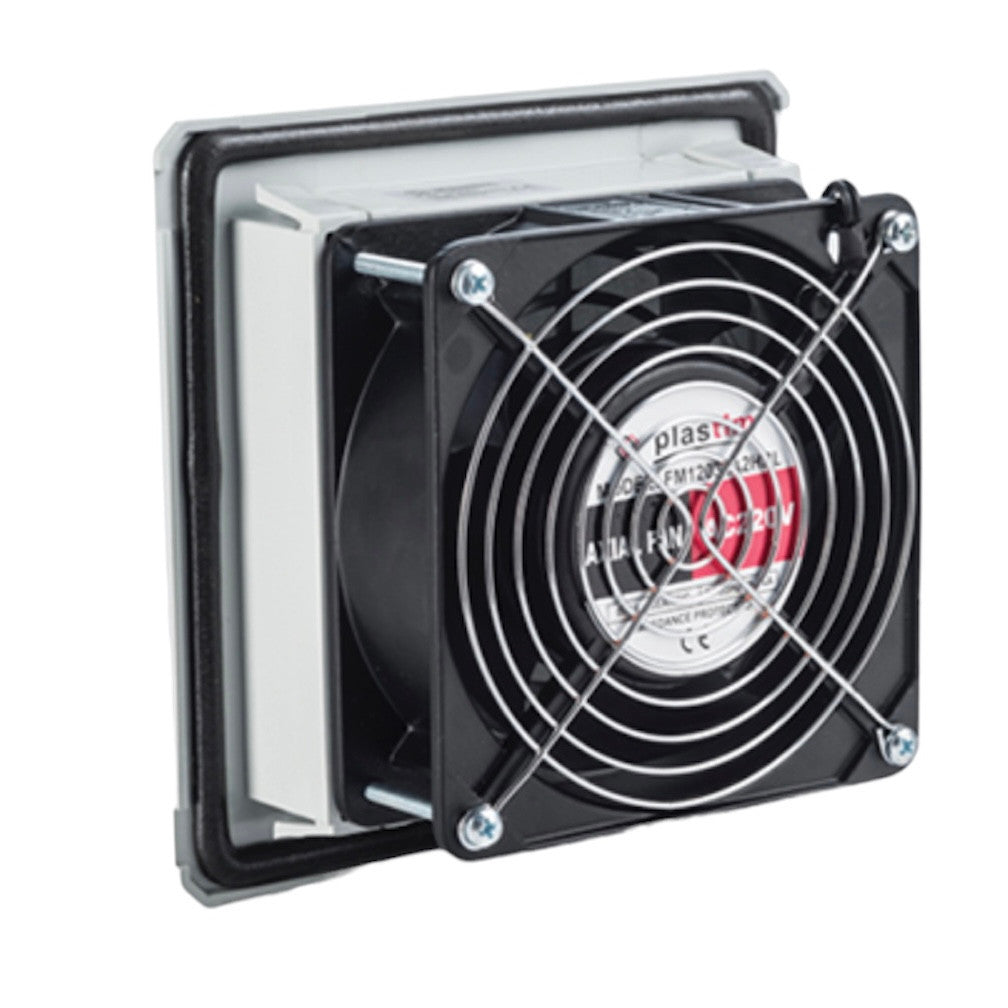

Ventilation grille with fan and filter, size 160x160 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF1500, manufacturer Plastim (Türkiye)

Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, petrol stations. Usually installed in side walls of boxes to maintain IP.

External dimensions: 160x160x69 mm
Installation size: 125x125mm
Volume flow rate: 100 (140) m3/h
Noise level: 42 (46) dB(A)
Bearing: Ball bearing
Operating voltage: 220-230VAC, 50/60Hz
Current consumption: 0.14(0.13) A
Rated power: 26 (23) W
Electrical Connection: Lead Wire
Direction of flow: Outside to inside (can be changed)
Operating temperature: -10/+70 °C
Degree of protection: IP54
Plastic material: UL94 V0 ABS Flame retardant
Seal: Polyurethane seal
Colour: RAL 7035 (RAL 7032 on request)
Weight: 0.68 kg
Installation: Fast Clip-on

To provide automatic air exchange and temperature maintenance with this fan you will need either a simple bimetal thermostat or a more complex temperature controller, both devices can be purchased from our website.
