Vendor: OPAS

Commutator group 0-1-2-3 stages step cam packet switch

Barcode: YPT113K32
Regular price
€24,80
Regular price
Sale price
€24,80
excl. VAT: €20
Low stock: 4 left
Number of poles: 1 pole
Mark: 32A
  • Description
  • Payment methods
  • Warranty

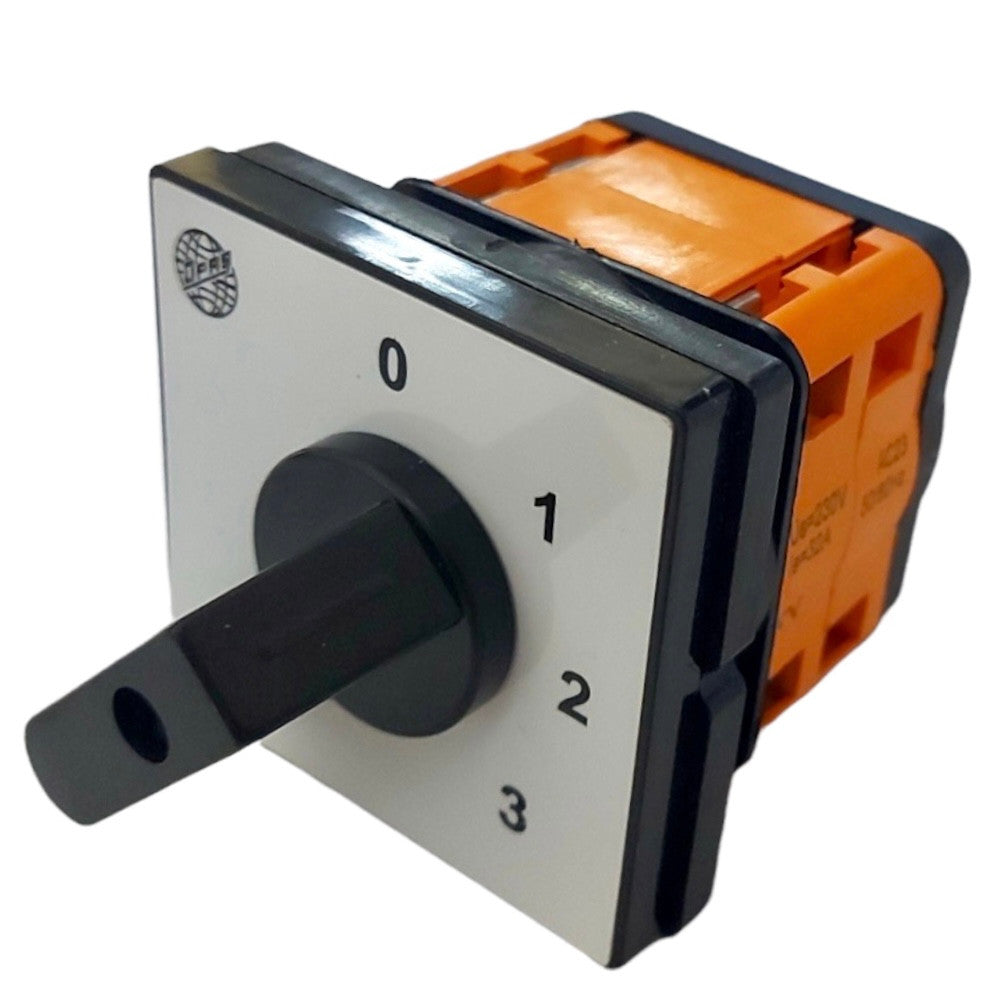

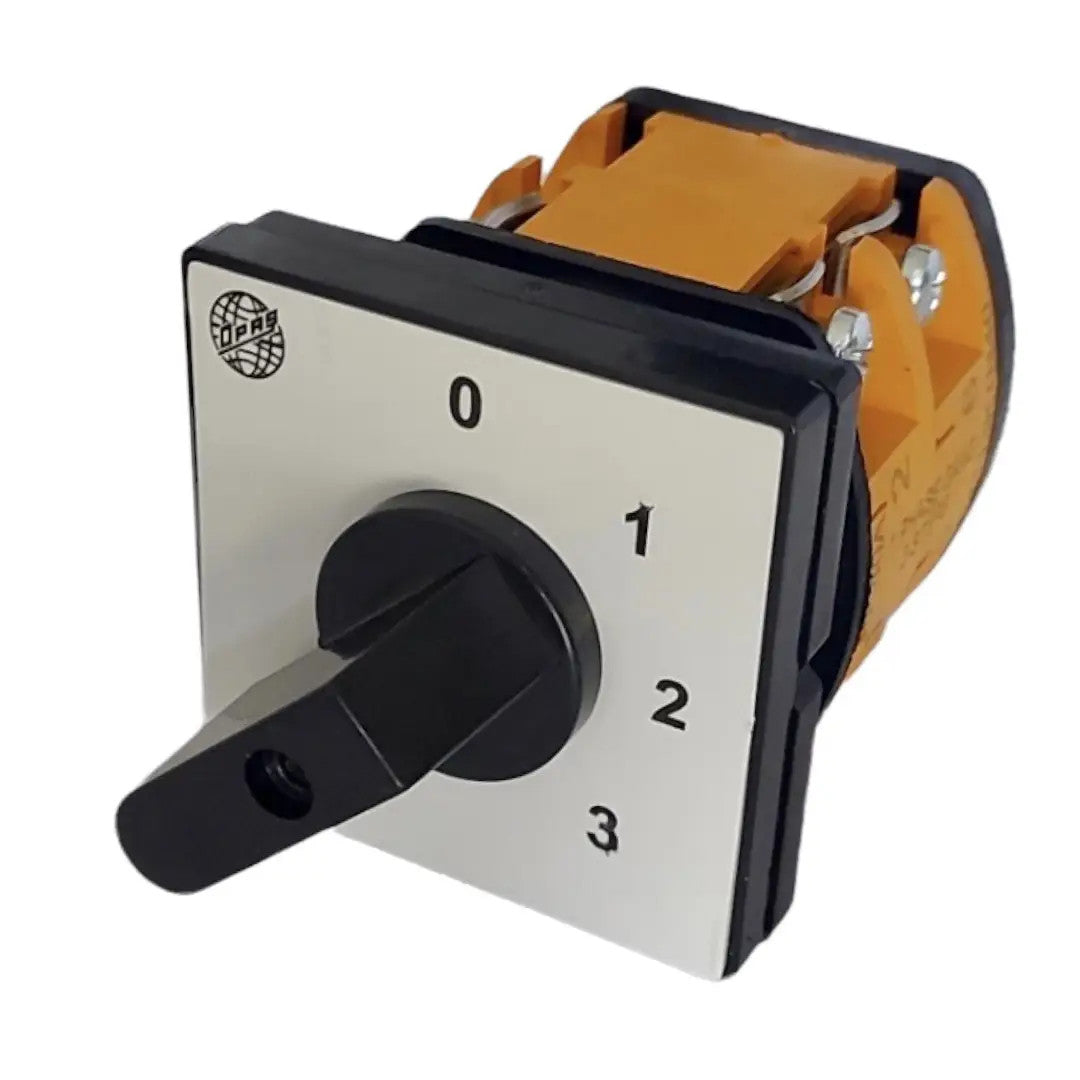

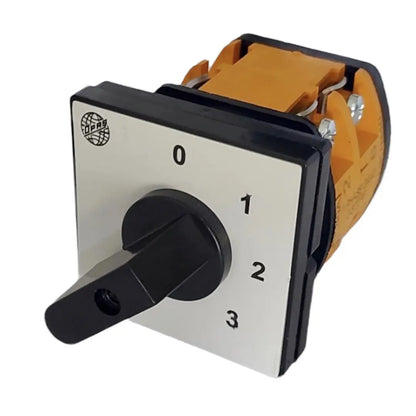

Cam packet switch 0-1-2-3 | OPAS (Turkey)

Product description

The cam packet switch is designed for manual control of low voltage electrical circuits. It is used in main and control circuits, for switching on and off electric motors or other low-power equipment.
OPAS switches are characterized by compact design, high electrical and mechanical resistance and reliable operation.

The 0-1-2-3 multi-position circuit model allows switching between several operating modes of the equipment, such as different power, speed or temperature levels.

Application example

The switch is suitable, for example, for the sequential control of three heaters of 1 kW each, where it allows power adjustment:

  • 1 kW,

  • 2 kW,

  • 3 kW.

Technical features

  • Design.

  • Type of device.

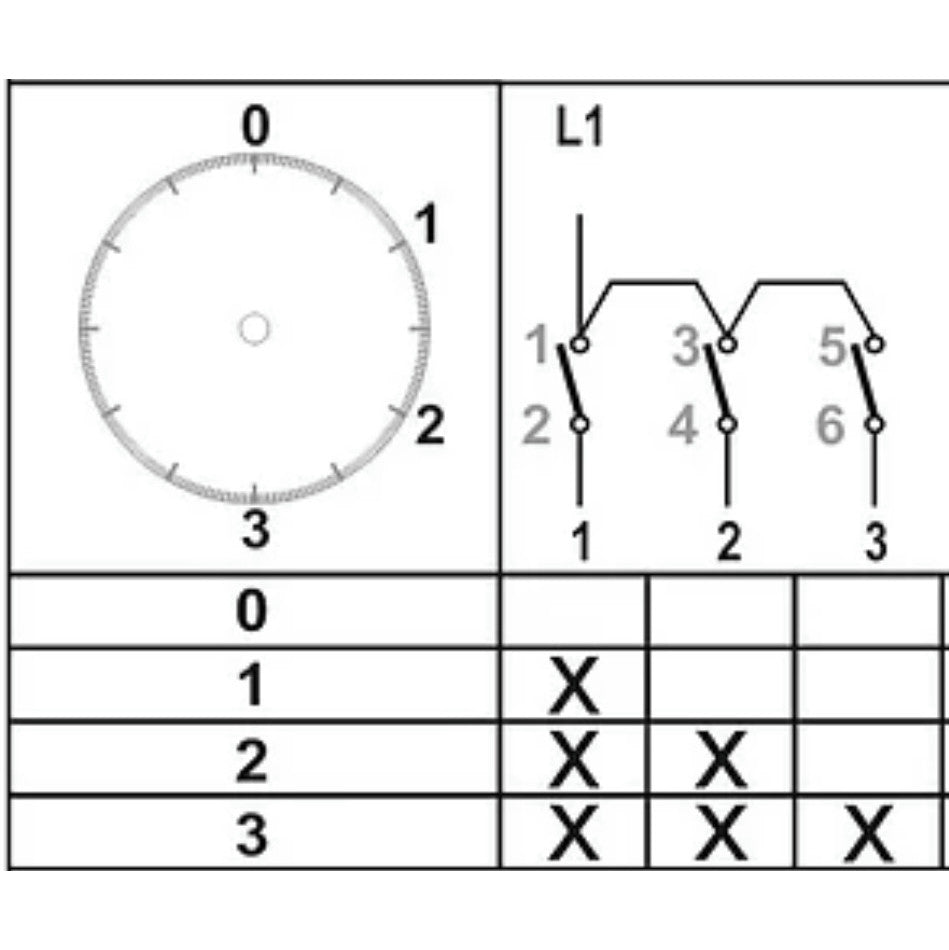

  • Switching scheme: 0 - 1 - 2 - 3

  • Number of poles: 1

  • Mounting type: Built-in

  • Number of phases: single phase

  • Arresting (blocking): No

  • Degree of protection: IP20

  • Operating temperature: -30 to +55 °C

Available current variants

  • 10 A

  • 16 A

  • 25 A

  • 32 A

  • 40 A

  • 63 A
