Commutator group 0-1-2-3-4-5-6-7 stepped cam packet switch

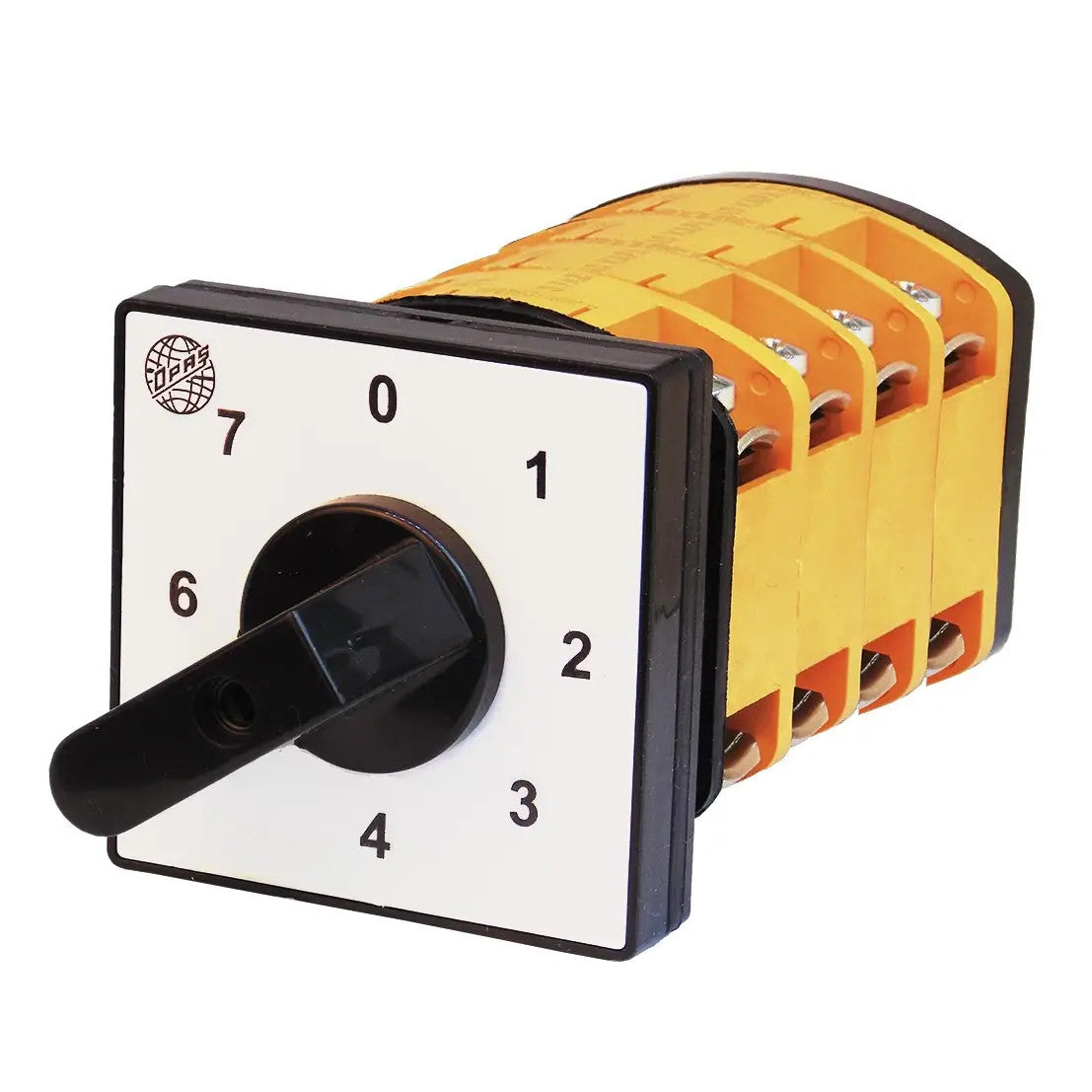

Step/step commutator switch of rotary cam packet group 0-1-2-3-4-5-6-7, YPT117K, manufacturer OPAŞ (Turkey)

Batch (group) switches are designed for manual switching of low voltage circuits. They are used for making main and control circuits, switching on and off electric motors and other low power devices. This series of switches is distinguished by its compact size, high electrical and mechanical resistance.

The group switch allows the gradual switching of individual stages while maintaining the previous ones already switched. Suitable, for example, for connecting three 1kW heaters - the sequential switching allows to create a heating output of 1 kW, 2 kW, 3 kW ... up to 7 kW.

Main features

• Rotary cam switch for low voltage circuits

• Multi-position scheme 0-1-2-3-4-5-6-7

• Sequential switching of power stages

• Built-in design

• Suitable for single-phase applications

Technical parameters

• Design: cam-operated

• Device type: rotary switch

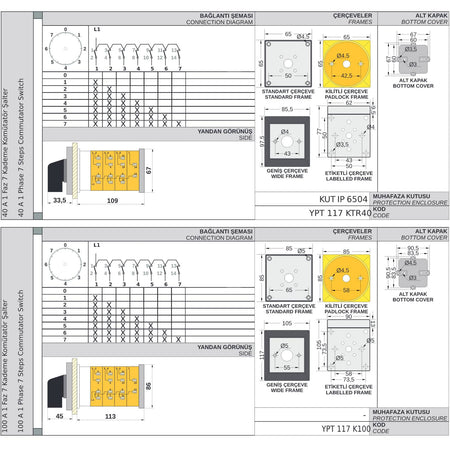

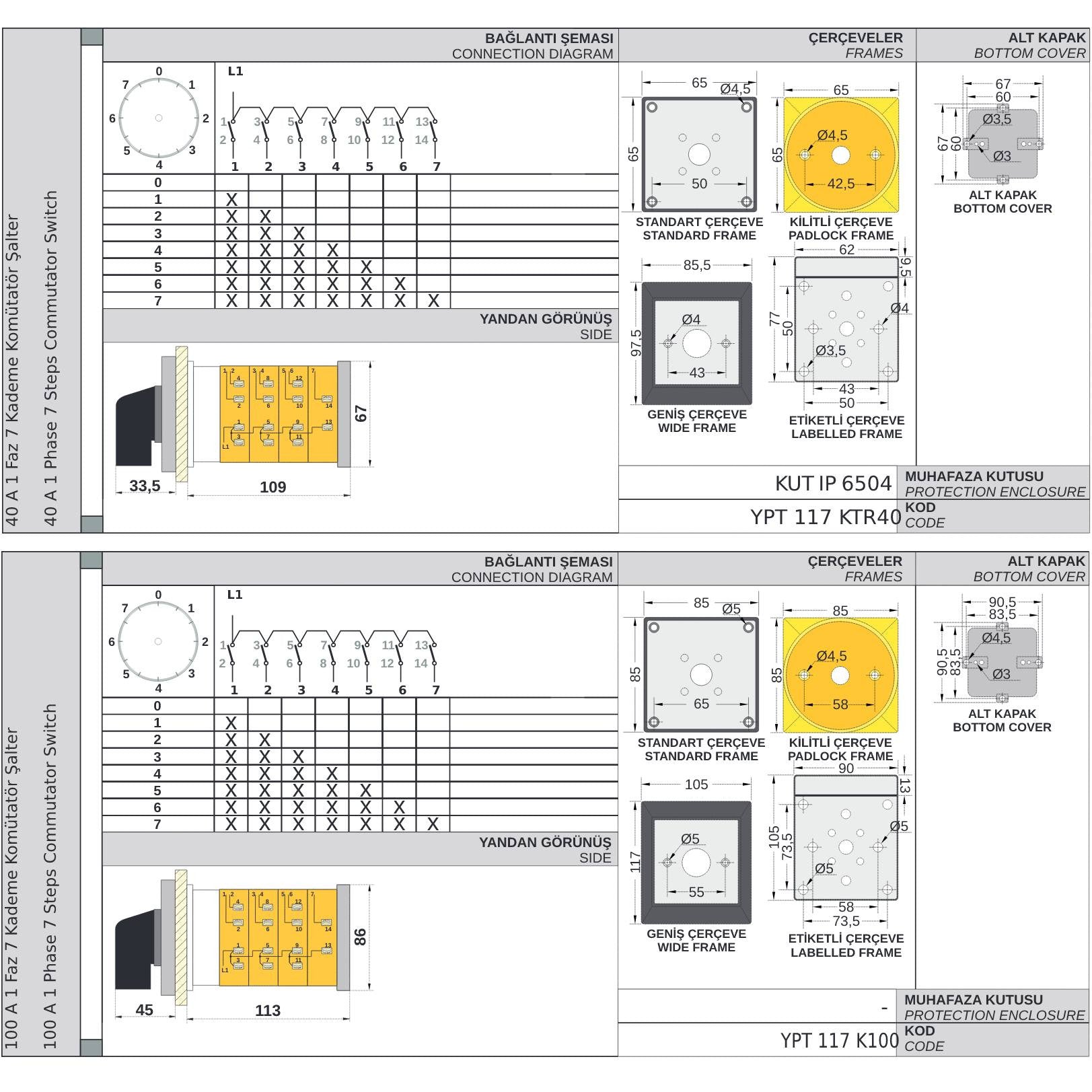

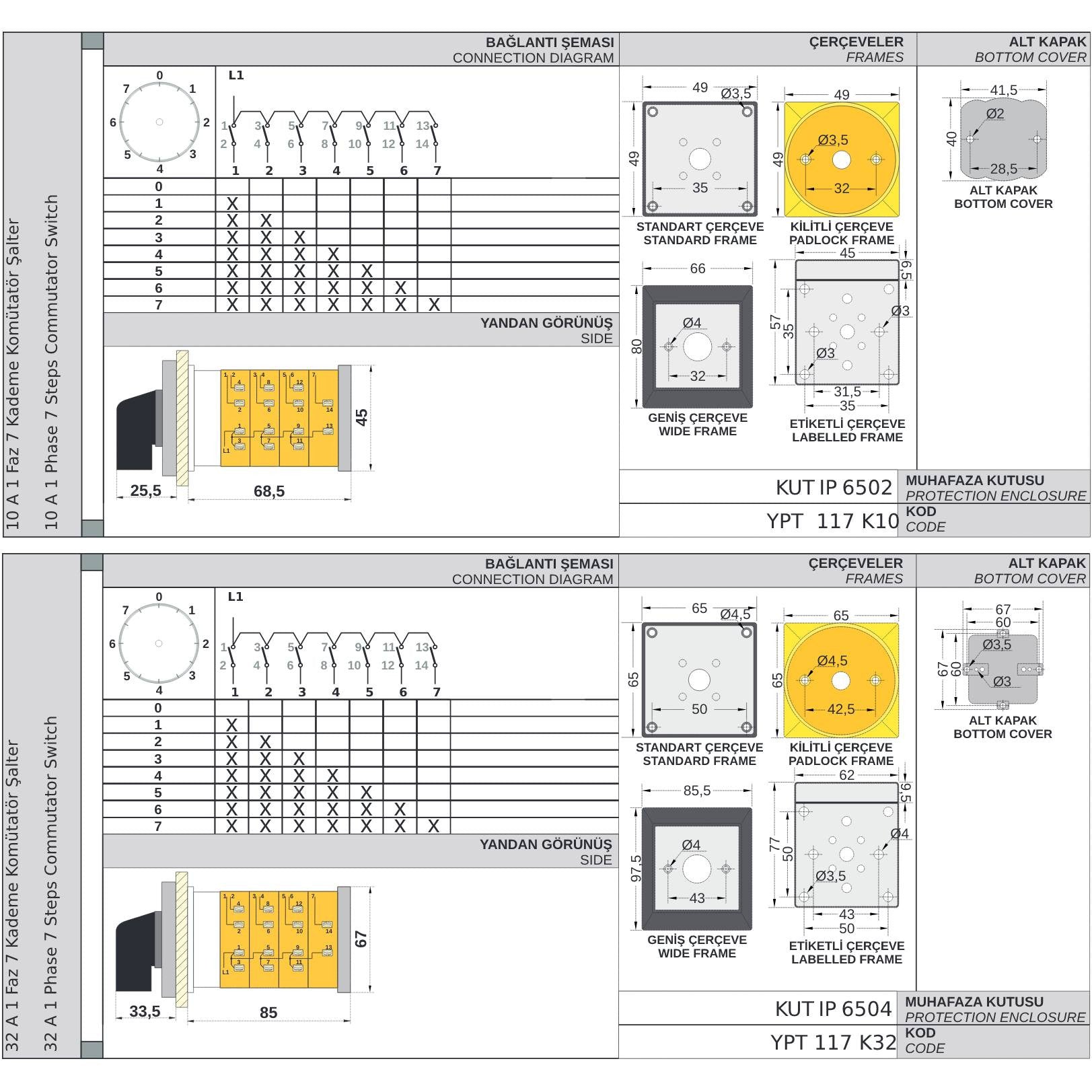

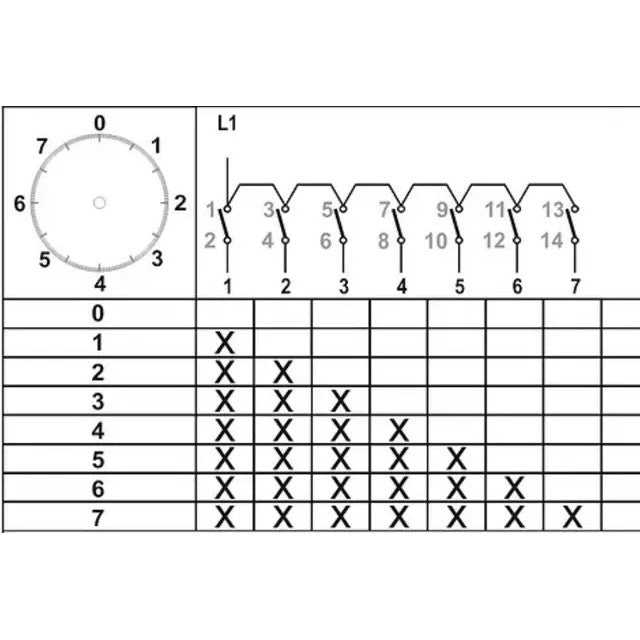

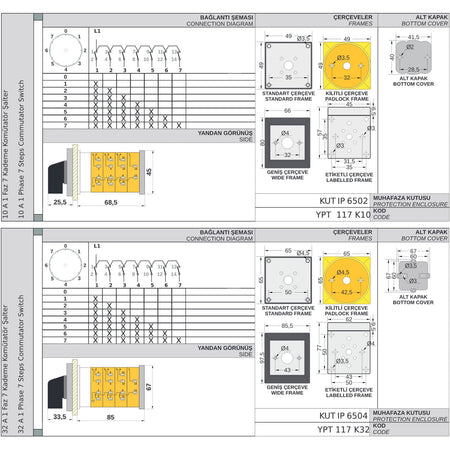

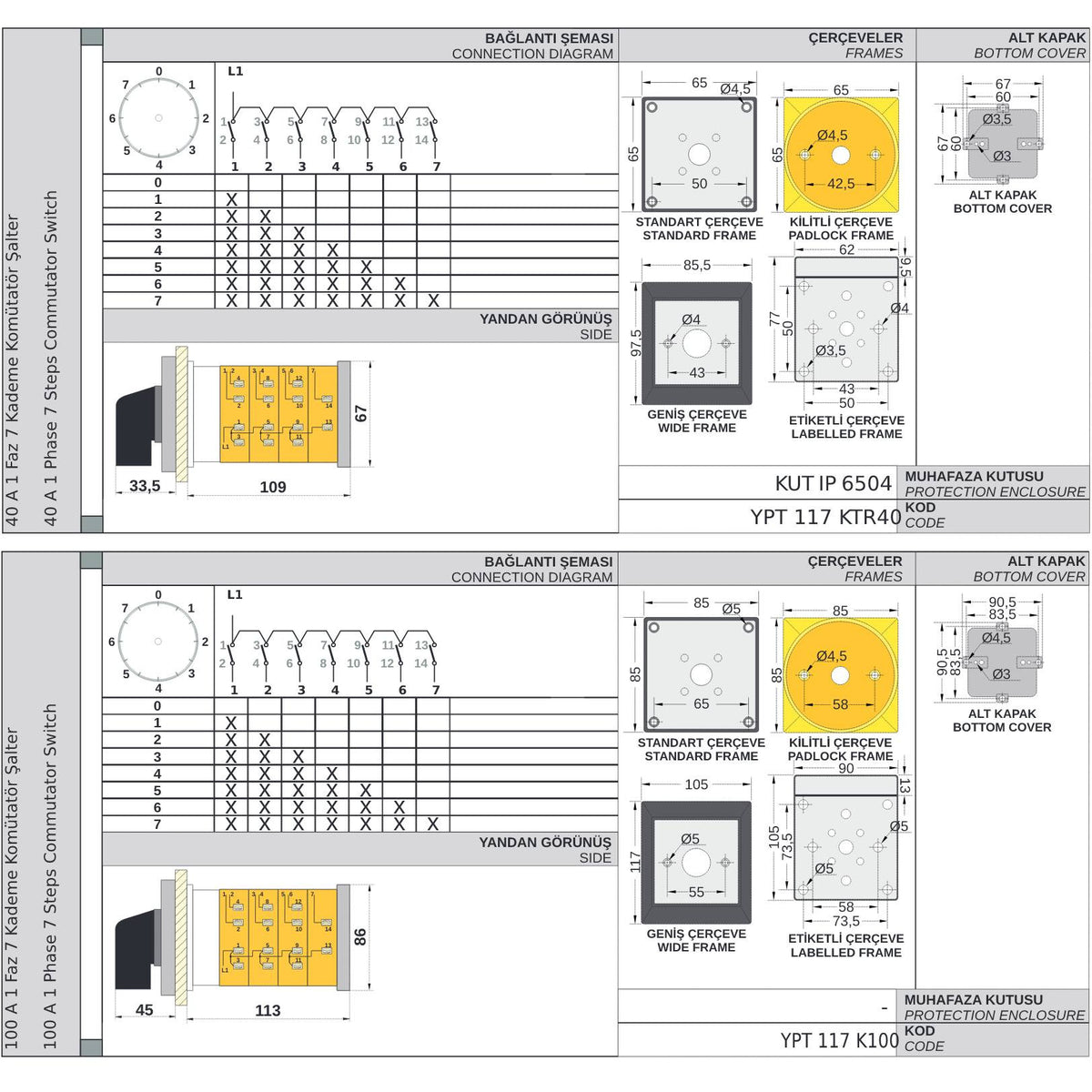

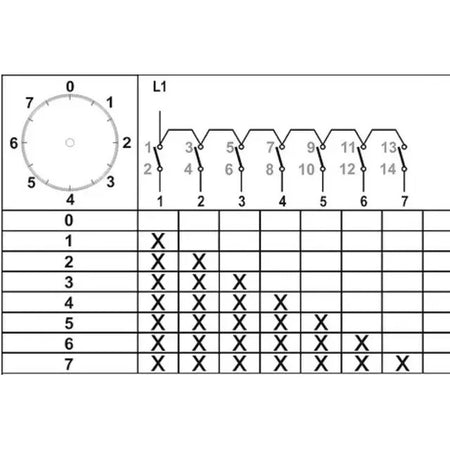

• Switching scheme: 0-1-2-3-4-5-6-7

• Number of poles: 1

• Number of phases: 1

• Blocking: no

• Degree of protection: IP20

• Operating temperature: -30 to +55 °C

• Rated currents: 10 A, 16 A, 25 A, 32 A, 40 A, 63 A

Usage

• Sequential switching of heating elements

• Switching multiple operating modes of the device

• Heating power control

• Single-phase low-voltage control circuits
