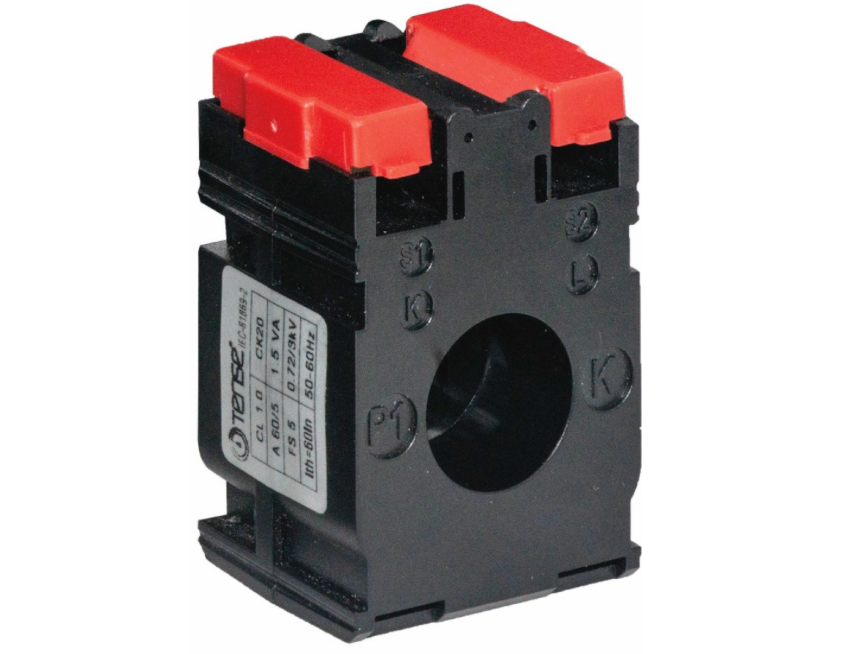

Measuring current transformer CK20 - TENSE

Product description:
The CK20 series current transformer is designed for indirect AC current measurement in low voltage electrical circuits. It is used to power ammeters, power meters and multimeters, or as an input for protective relays and monitoring devices.

The transformer allows safe and accurate measurement of high currents via a standardized 5 A secondary current.

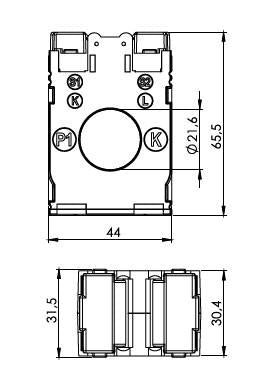

Technical specifications

• Conversion factor: 60/5 A

• Load: 1 VA

• Accuracy Class: 1

• Terminal block: Non-removable cover, suitable for high gauge conductors, made of brass

• Housing: Non-flammable self-extinguishing ABS

• Mounting: DIN rail (KK0003)

• Primary conductor: round wire Ø 20 mm

• Short-circuit current resistance (Ith): 60 × In

• Resistance to constant current (Id): 1.2 × In

• Operating temperature: -25 °C to +85 °C

• Rated frequency: 50-60 Hz

• Shock current limitation (FS): 5

• Insulation test voltage: 3 kV for 1 minute

• Standards: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN 57414, BS 3938, BS 7626, EN 61869-2

Further information

• Each current transformer is individually tested at the manufacturer's factory.

• The results of the measurements are recorded in the test report that accompanies the transformer.

• The transformer is suitable for industrial applications, switchgear, measurement and protection systems.
