Air conditioning for switchboards / Cooler 2500W, PAD2550.01, Plastim
Failed to load pickup availability

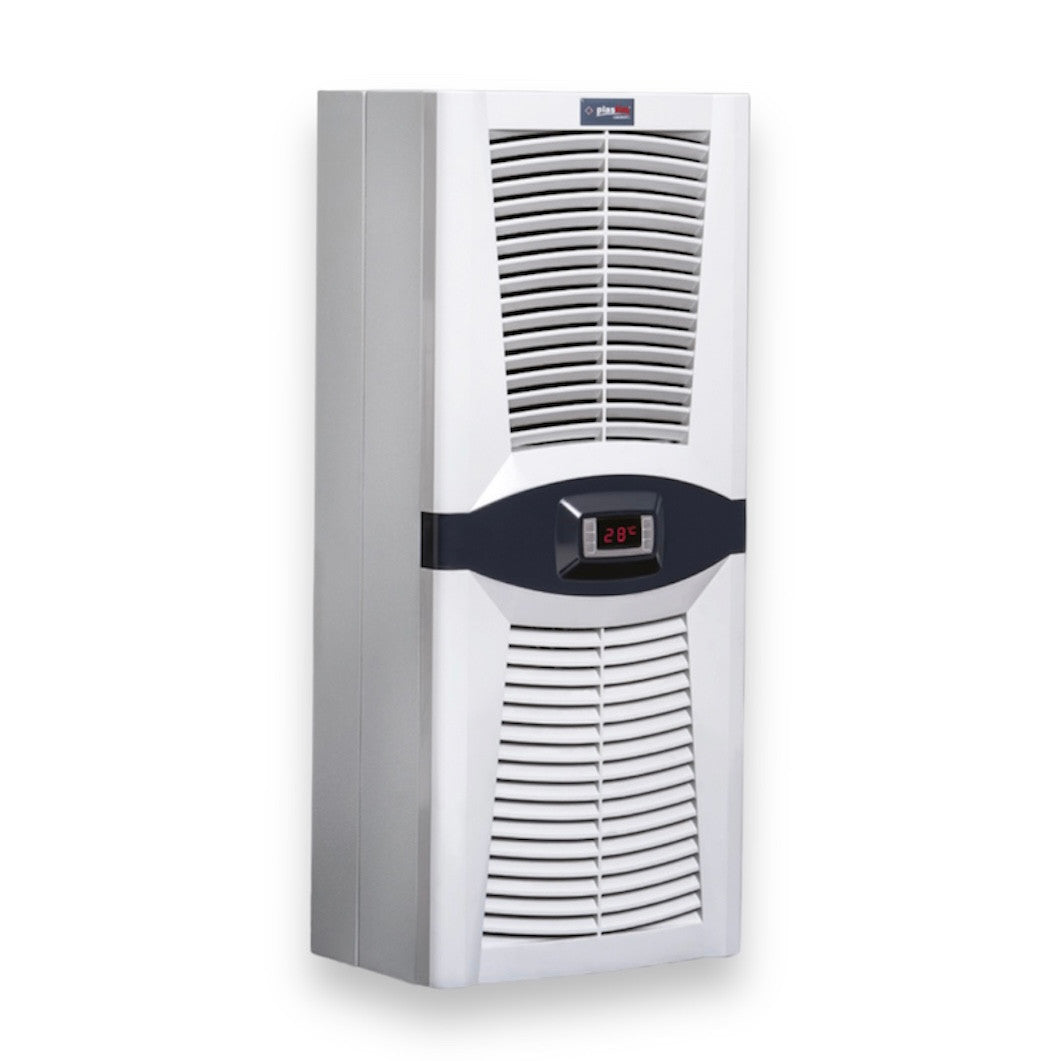

"Design Series" air conditioner for switchboard / chiller 2500 Watt / 8550BTU for switchboard and automation board side or wall mounting.
The PAD2550.01 (PLASTIM) air conditioner for switchboards features HIGHLY's state-of-the-art open type rotary compressor, Dixell thermostat, condensate evaporator and limit switch for controlling switchboard door opening.
Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.
TECHNICAL DETAILS |
PAD2550.01 |
Cooling Capacity L35 / L35 |
2500W / 8550BTU |
Operating Voltage |
230VAC |
Frequency |
50/60 Hz |
Starting Current |
11A |
Operating Current |
3.8A |
Fuse |
16A |
Power Consumption |
800W |
Operational Range |
0-55 °C |
Thermostat Factory Setting |
35 °C |
Differential |
4 °C |
Max. Air Volume Internal Circuit |
510 m³/h |
Max. Air Volume External Circuit |
625 m³/h |
Type of Refrigerant |
R134a |
Amount of Refrigerant |
750gr |
Dimensions |
980x430x270mm |
Weight |
47kg |
Sound Level |
82dB |
Protection Degree (Internal Circuit) |
IP 54 |
Protection Degree (External Circuit) |
IP 34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor Type |
Rotary |
Fans |
EBMPAPST |
Mounting Method |
Wall Mount |
