3-Phase Digital Panel Multimeter DIN Current, Voltage and Frequency Indicator
- Regular price
- €69,16
- Regular price
-
- Sale price
- €69,16
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

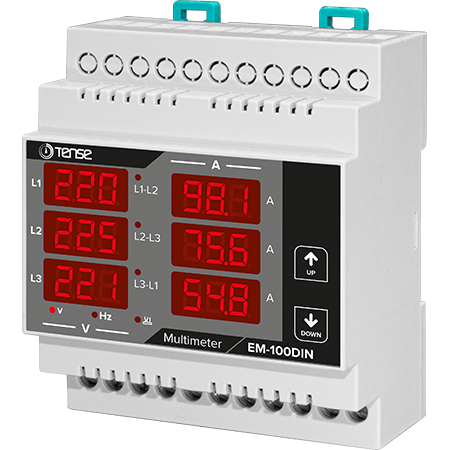

TENSE 3-phase multifunction panel multimeter
Description
The TENSE digital 3-phase multimeter is a multifunction panel meter designed for monitoring electrical parameters in 3-phase systems. The instrument displays voltage, current and frequency and allows monitoring of individual phases.

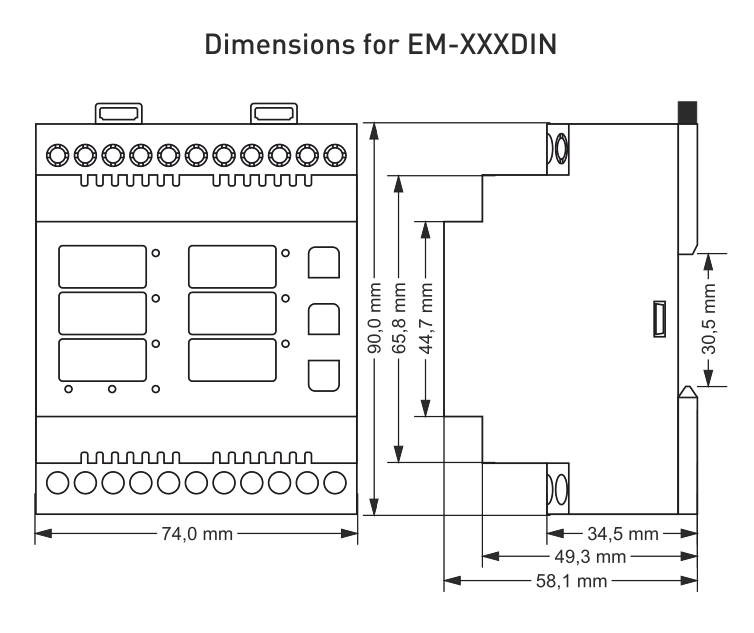

The multimeter is designed for mounting on a standard 35mm DIN rail.
Main advantages
Multifunctional measurement of 4 quantities:
Current (I)
Voltage (U) - L-L and L-N
Frequency (Hz)
Single phase monitoring
Precise measurement with current transformer
Included measuring transformer on EM-100DIN and EM-250DIN models
Easy mounting on standard DIN rail
Technical specifications
| Parameter | Value |
|---|---|

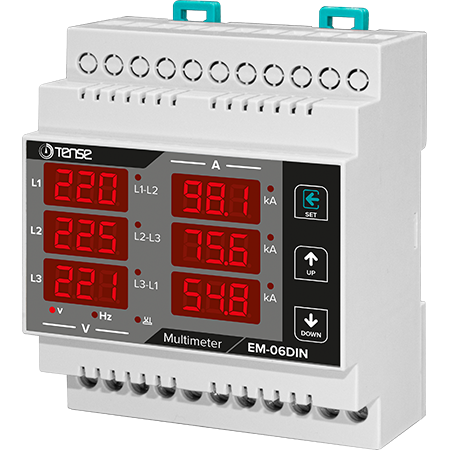

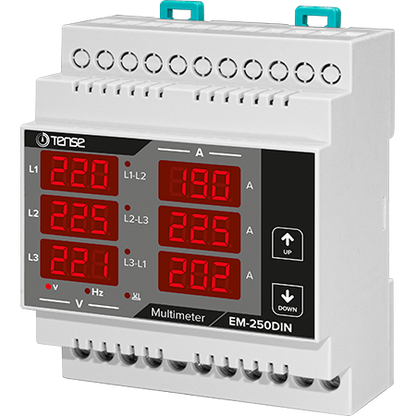

| Current measurement range | EM-06DIN: 5/5 ... 9995/5 A (indirect measurement) EM-100DIN: 1 - 100 A EM-250DIN: 2 - 250 A |
| Voltage measuring range | L-N: 1 - 300 V AC L-L: 1 - 500 V AC |
| Frequency | 40 - 60 Hz |
| Installation | 35 mm DIN rail |
| Application | Industrial and domestic 3-phase networks |
Recommendations

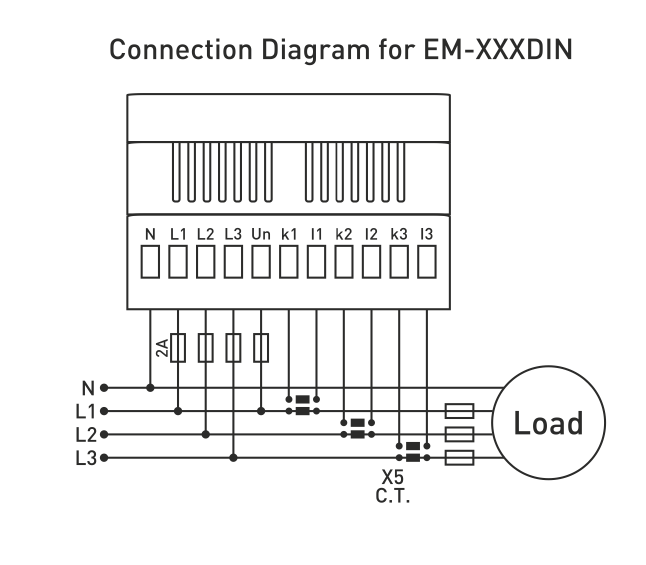

For accurate current measurement, we recommend using compatible current transformers:
60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5Transformers can be purchased directly in our e-shop.
