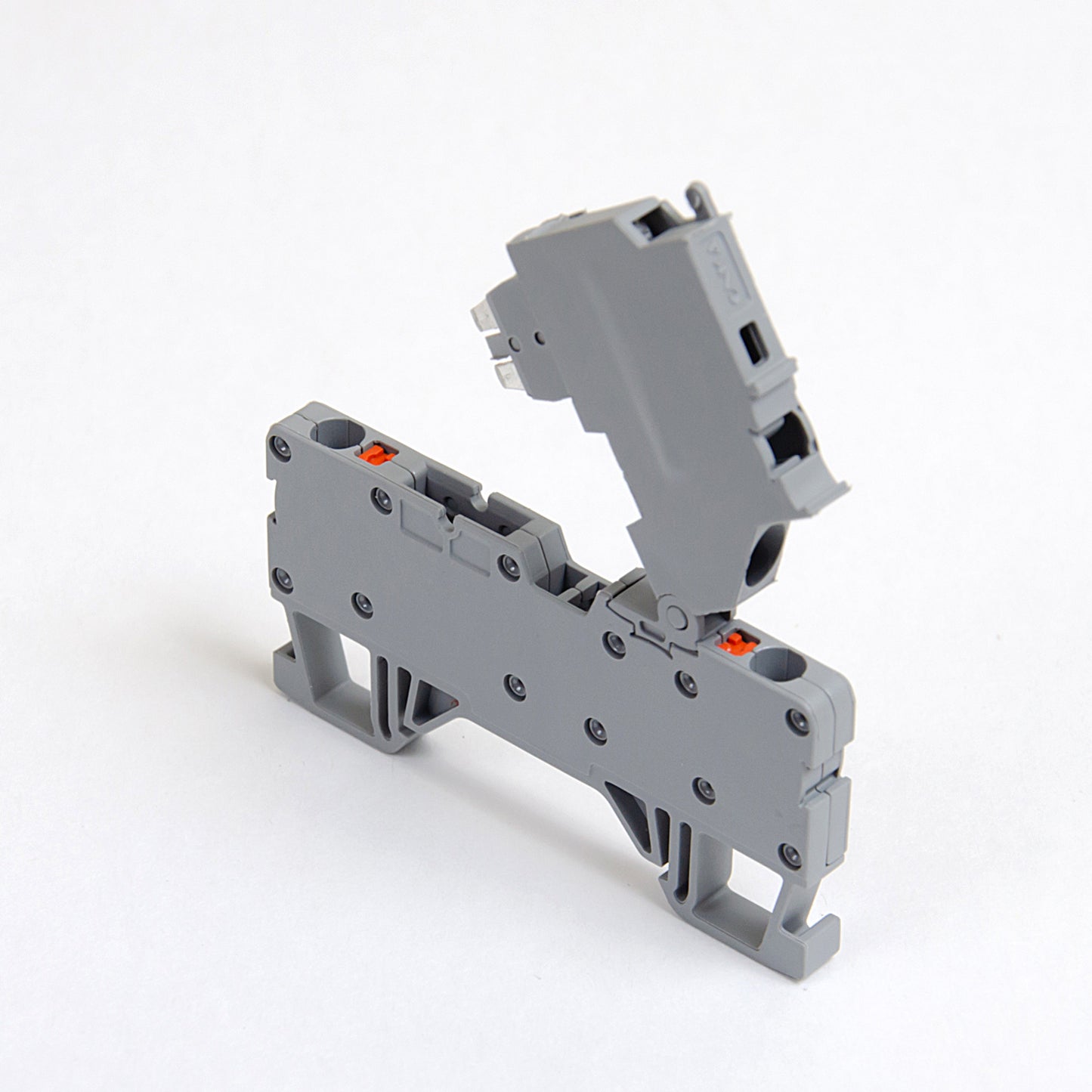

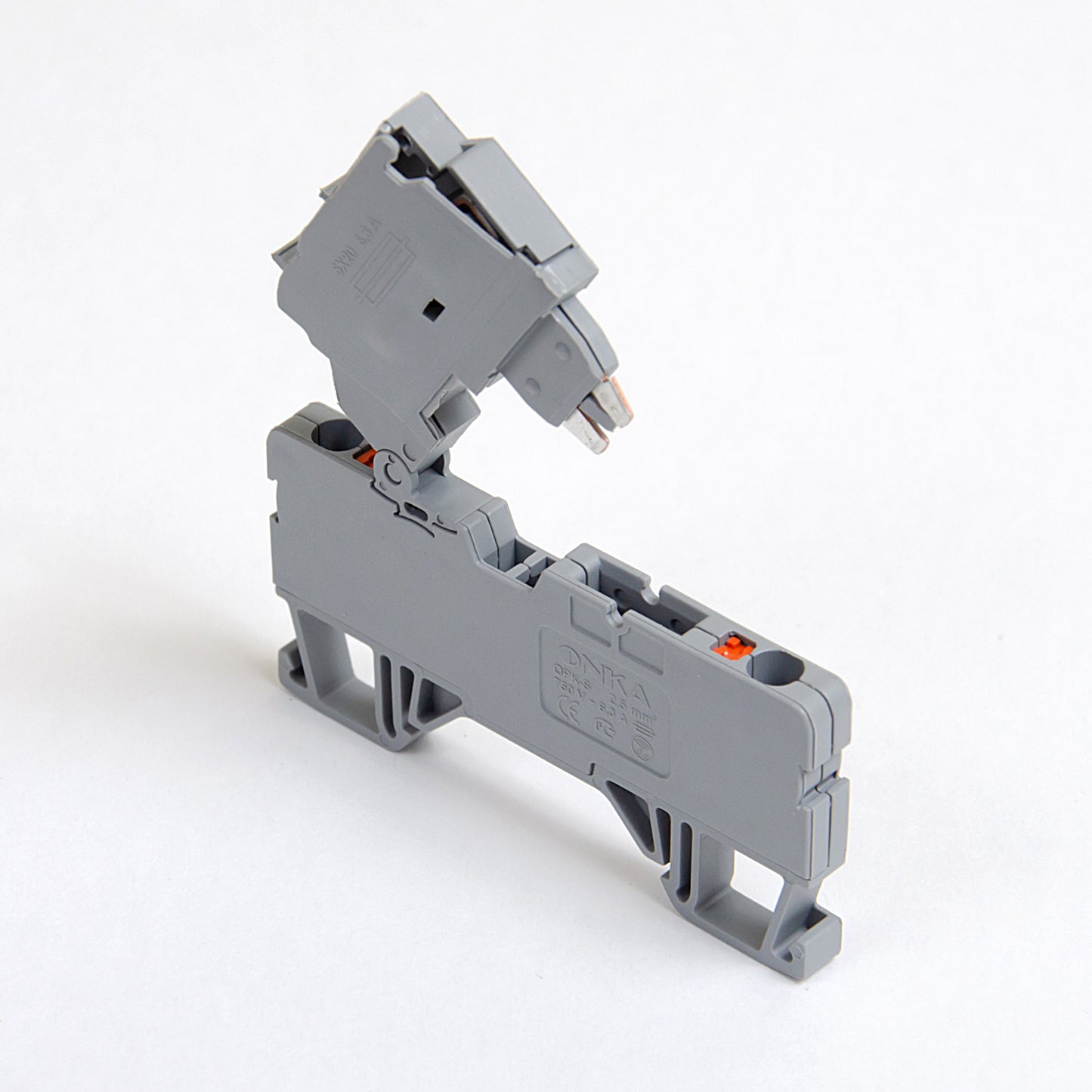

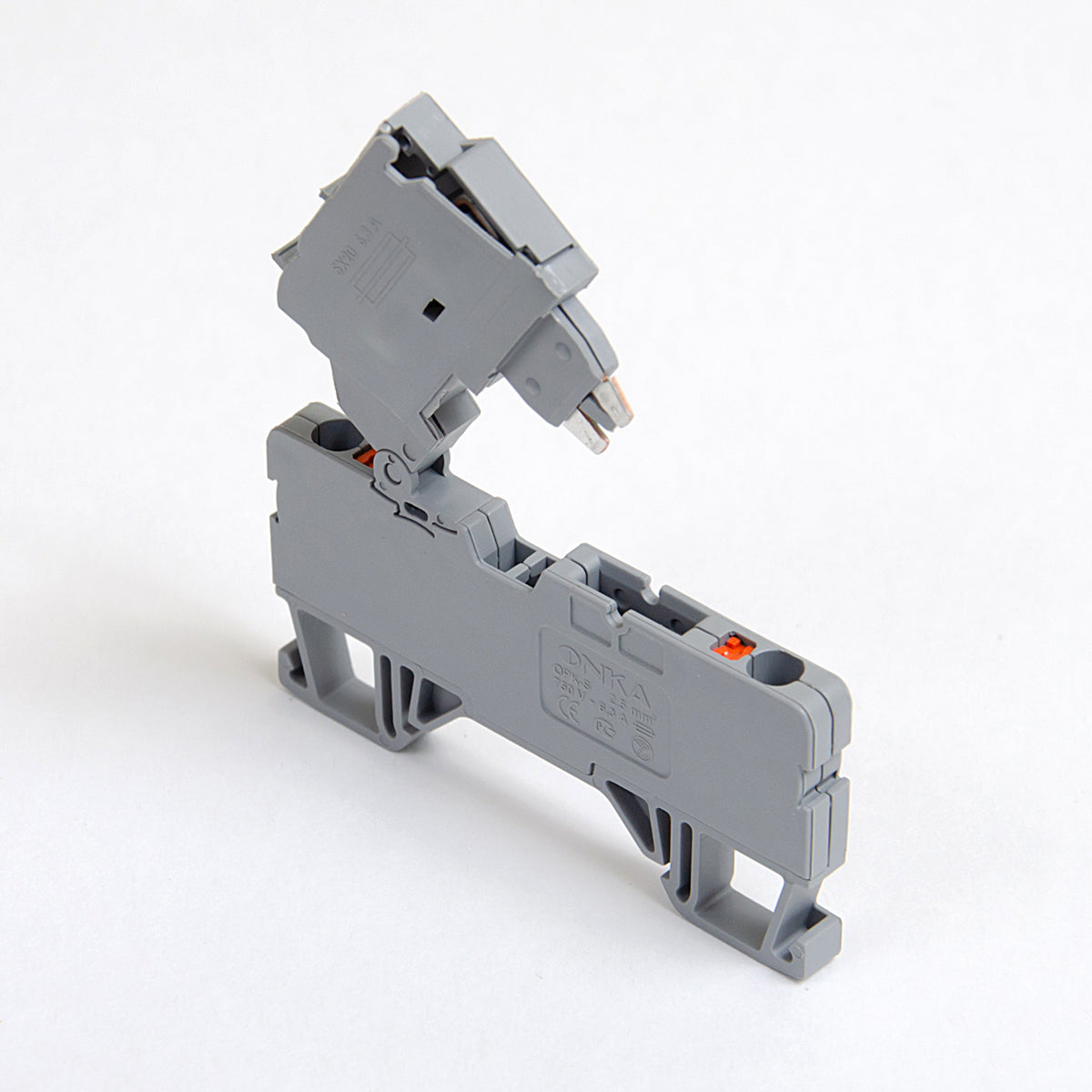

ONKA 2.5mm2 screw connection fuse terminal block (fuse not included) grey, 1020223

Spring screw connection fuse terminal block (fuse not included) 2-wire, grey, ONKA, made in Turkey

Used to protect low current AC or DC circuits. A 5x20 mm fuse is installed in the terminal with current setting up to 6.3 A. The fuse is not included and must be ordered separately.

Technical parameters

Cross section of the connected single wire up to: 2.5 mm2
Colour: grey
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: Top / top
Cable strip length: 9mm
Electrical connection type: screw clamp
Rated voltage: 750V
Rated current: 6.3A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
