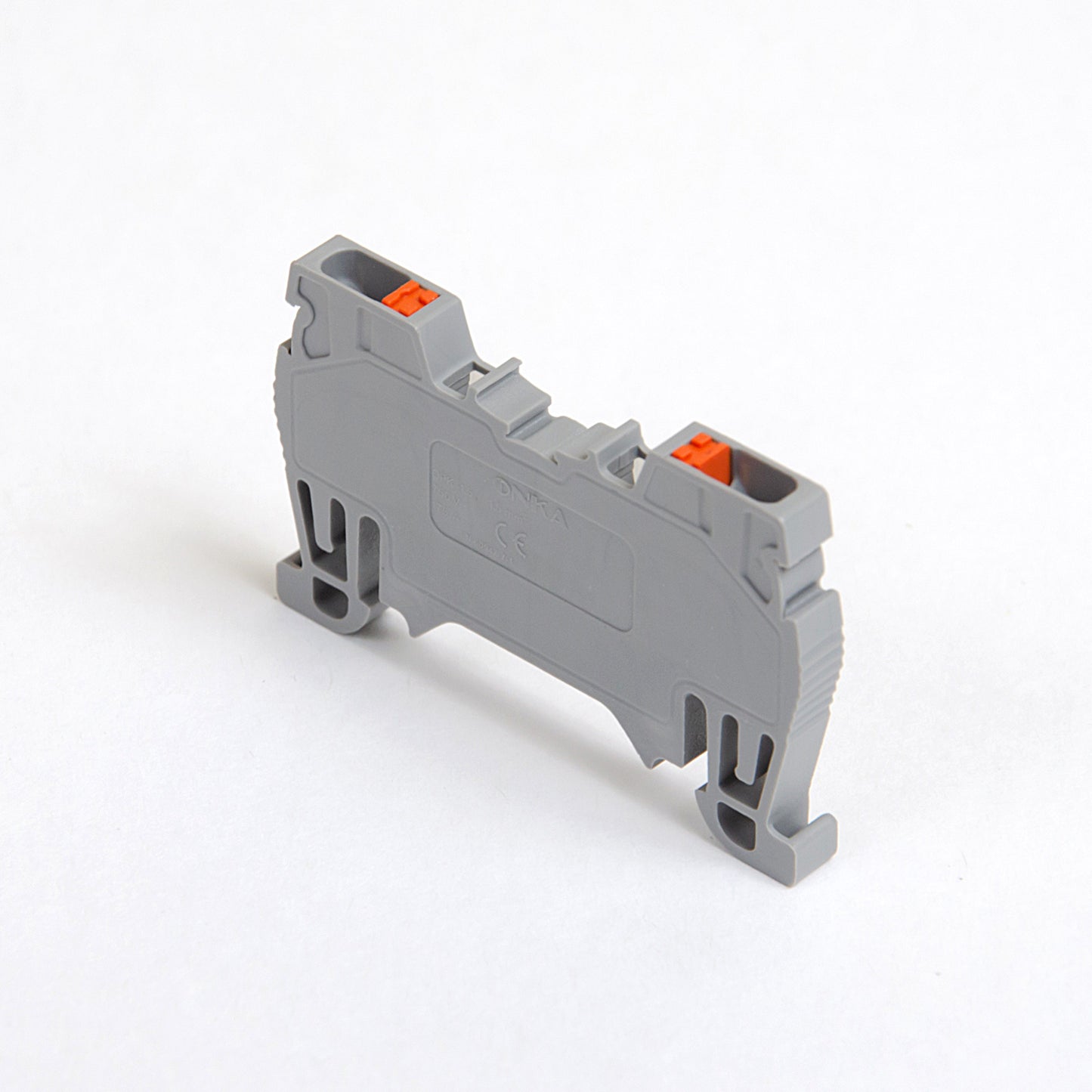

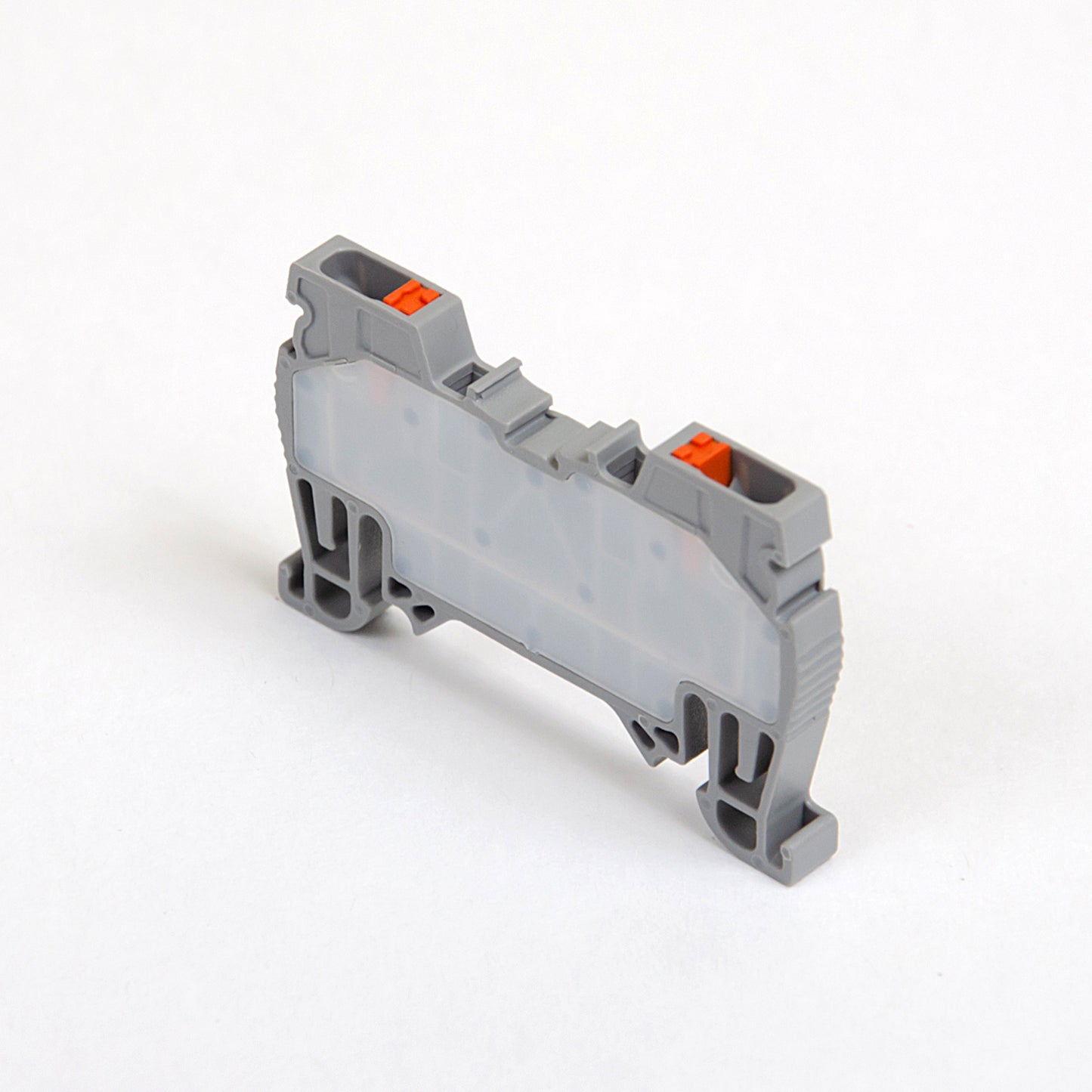

ONKA 1.5mm2 spring rail connector terminal block DIN rail terminal 2-wire grey, 1020002

Spring busbar rail connector / DIN rail terminal 2-wire, retractable contact, grey, ONKA, made in Turkey

ONKA's compact installation rail couplers provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.

Technical parameters

Cross section of the connected single wire up to: 1.5mm2
Colour: grey
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: Top / top
Cable strip length: 9mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 17.5A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
