Air conditioning for switchboards / Cooler 2100W, PAD2100.01, Plastim

Only 3 left
SKU: PAD2100.01
Common price €2.284,96 including VAT

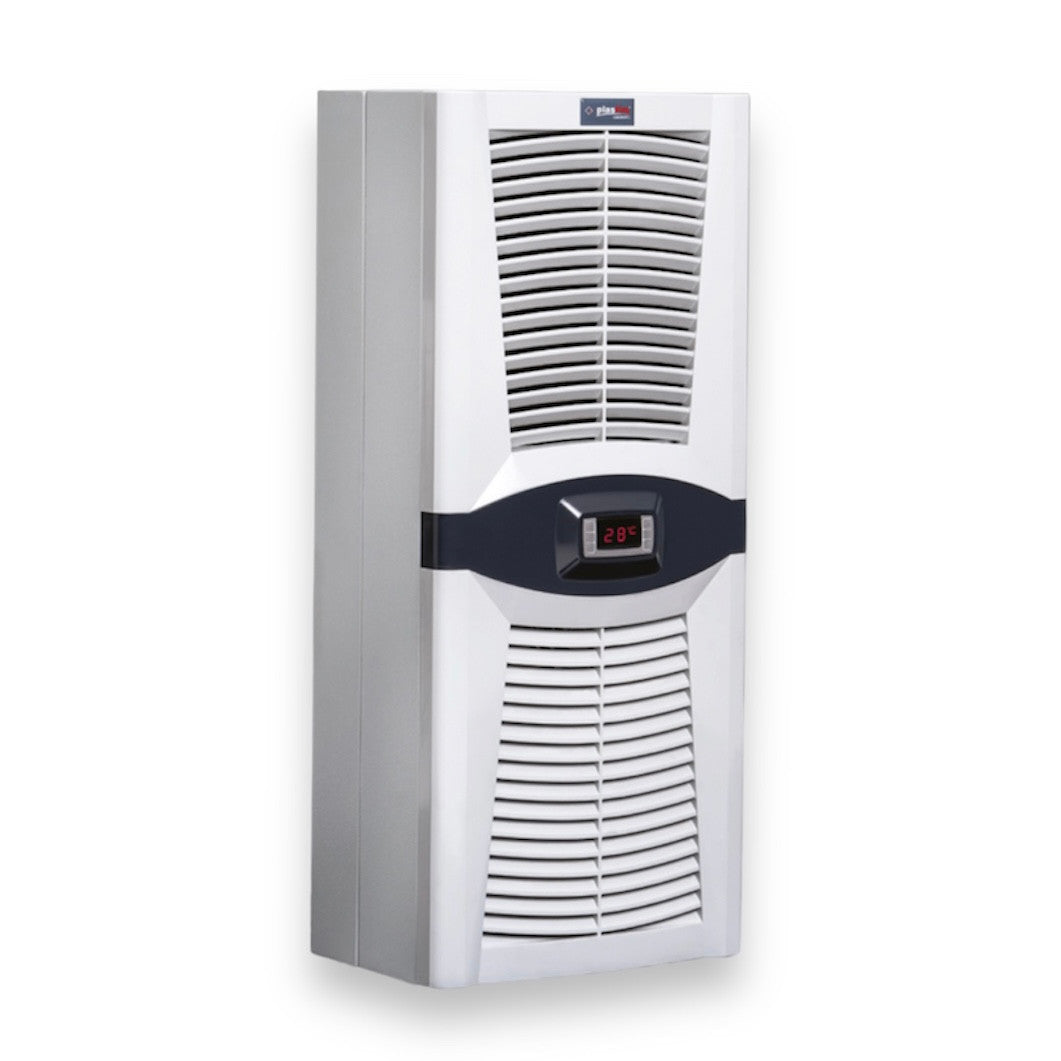

"Design Series" air conditioner for switchboard / chiller 2500 Watt / 8550BTU for switchboard and automation board side or wall mounting.

The PAD2550.01 (PLASTIM) air conditioner for switchboards features HIGHLY's state-of-the-art open type rotary compressor, Dixell thermostat, condensate evaporator and limit switch for controlling switchboard door opening.

Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.

TECHNICAL DETAILS

PAD2100.01

Cooling Capacity L35 / L35

2100W / 7200BTU

Operating Voltage

230VAC

Frequency

50/60 Hz

Starting Current

10A

Operating Current

3.8A

Fuse

16A

Power Consumption

800W

Operational Range

0-55 °C

Thermostat Factory Setting

35 °C

Differential

4 °C

Max. Air Volume Internal Circuit

510 m³/h

Max. Air Volume External Circuit

625 m³/h

Type of Refrigerant

R134a

Amount of Refrigerant

700gr

Dimensions

980x430x270mm

Weight

46kg

Sound Level

80dB

Protection Degree (Internal Circuit)

IP 54

Protection Degree (External Circuit)

IP 34

Color

RAL7035

Compressor

HIGHLY/HITACHI

Compressor Type

Rotary

Fans

EBMPAPST

Mounting Method

Wall Mount
