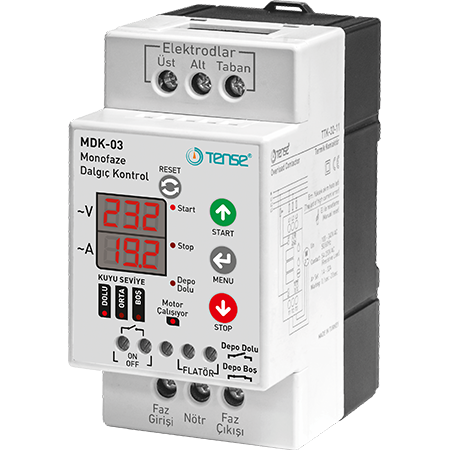

TENSE MDK-03 single-phase submersible pump controller, 150-270 V AC, 30 A

Product description

The TENSE MDK-03 control unit is designed to protect and control single-phase submersible pumps up to 4 kW.
It provides protection against:

• overvoltage and undervoltage

• overcurrent and pump overload

• lack of water in the well or borehole

Built-in features provide tank level monitoring, time delay settings, start-up interval control and remote pump on/off capability.

Key features

• Single-phase power supply: 150-270 VAC, 50 Hz

• Max. current: 30 A

• Microprocessor control with LED display for voltage, current and electrode status

• Protection functions: overvoltage, undervoltage, overcurrent, undercurrent, water level control

• Adjustable operating parameters: P1-P12 (e.g. voltage, current, response delay, start-up intervals, number of automatic resets, upper sensor delay)

• Operating modes: START / STOP

• Memory of last device state before shutdown

• Indication of electrode immersion in water (upper - red display, lower - yellow display)

Technical parameters

• Operating voltage: 150-270 V AC

• Frequency: 50 Hz

• Current range: 1-30 A

• Power consumption: < 6 W

• Liquid sensitivity: < 50 kΩ

• Protection class: IP20

• Operating temperature: -20 °C to +55 °C

• Cable cross-section: Max. 10 mm² (power supply), electrodes up to 2.5 mm²

• Weight: 0.25 kg

• Installation altitude: < 2000 m

Application

• Protection of submersible pumps against dry running and overload

• Water level control in wells and tanks

• Real-time monitoring of voltage and current

• Remote pump on/off

Important notifications

• Electrodes / water level sensors are not included - must be ordered separately

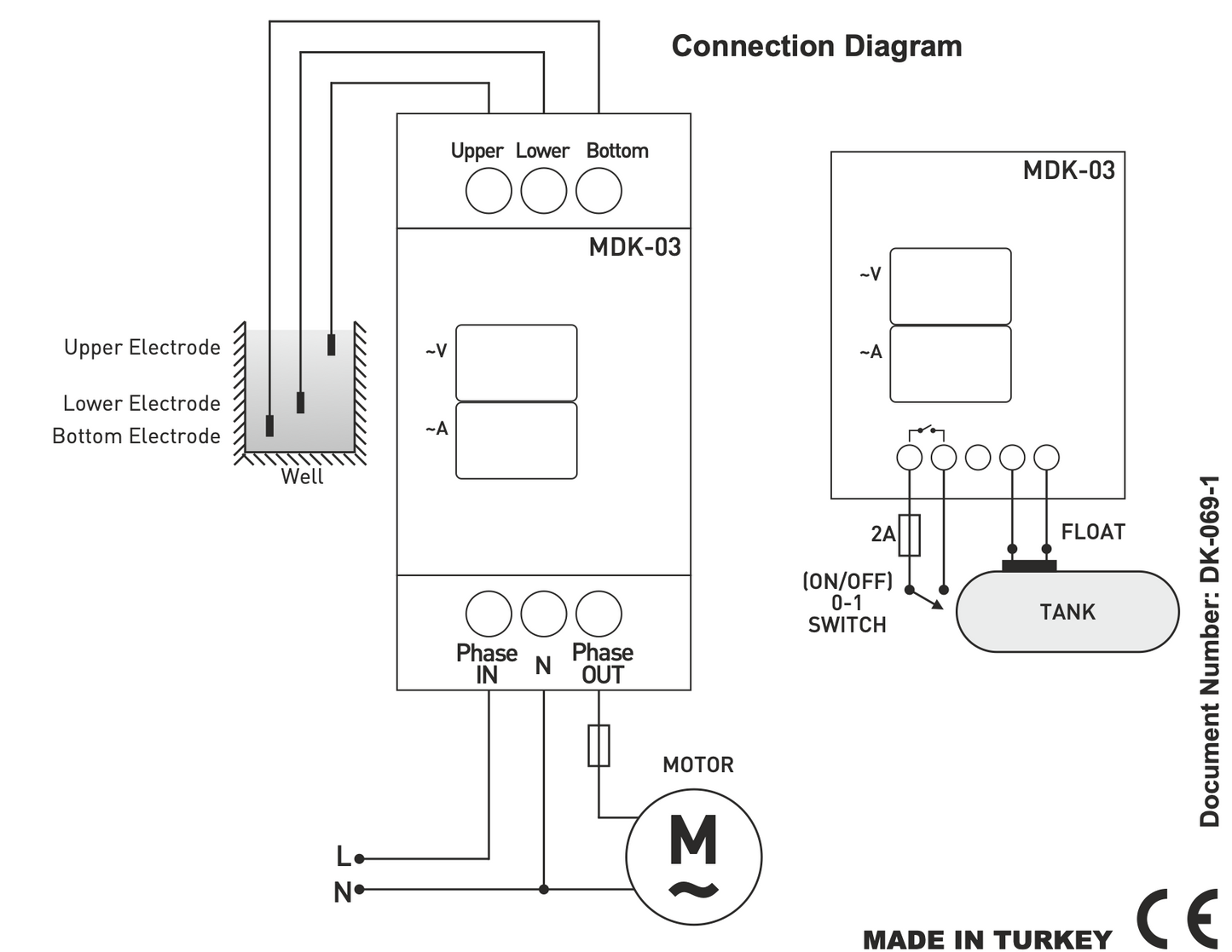

• Controller must be connected according to manufacturer's diagram

• Liquid must not be flammable or explosive

• Installation temperature must be > 0 °C

• Pump must be earthed

• Correct wiring of the inputs for the level relay and remote switch is necessary for correct operation of the device
