TK30S - Current measuring transformer 100/5 150/5 200/5 250/5 300/5 400/5 500/5
- Regular price
- €10,00
- Regular price
-
- Sale price
- €10,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

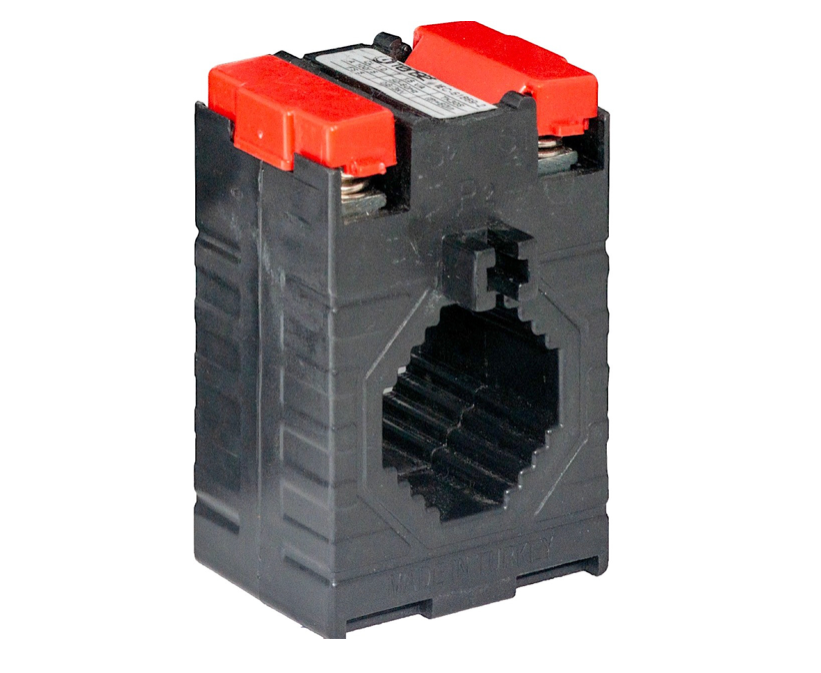

TENSE TK30S - Current transformer
Product description
The TENSE TK30S (100/5) current transformer is designed to convert high current from the power part of an electrical circuit to a standardized secondary current suitable for measuring, monitoring and protecting equipment.
It is used for indirect AC current measurement in low-voltage installations and serves as an interface between the power circuit and measuring equipment such as ammeters, power meters, monitoring modules or protective relays.
The through-core design allows installation without breaking the conductor - the cable simply slides through the window. This ensures fast, safe and economical installation.
Key features
-
Precise measurements thanks to accuracy class 0.5 - stable transmission and minimal losses.
-
Easy installation - compact design, can be installed in limited space, wide range of applications.
-
High insulation resistance - test voltage 3 kV / 1 minute.
-
Wide temperature range: -25 °C to +85 °C.
-
Universal use - suitable for switchgear, industrial systems, power applications and measurement systems.
-
Compatible with IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN 57414.
Specifications
| Parameter | Value |
|---|---|
| Rated primary current | 100 A |
| Rated secondary current | 5 A |
| Rated power (load) | 2.5 VA |
| Accuracy class | 0,5 |
| Insulation test voltage | 3 kV / 1 min |
| Operating frequency | 50 / 60 Hz |
| Window diameter | up to 26 mm |
| Installation | DIN rail or mounting feet |
| Operating temperature | -25 °C ... +85 °C |
| Housing material | Self-extinguishing thermoplastic |

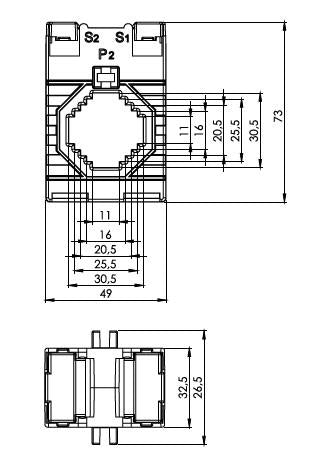

| Dimensions (W × H × D) | 73 × 49 × 26.5 mm |
| Weight | approx. 150 g |
| Manufacturer | TENSE (Turkeye) |
Usage
-
Electrical switchboards and cabinets
-
Industrial automation and control systems
-
Low-voltage power plants and distribution systems
-
Load monitoring and equipment protection systems
-
Motor Control Panels (MCC)
-
Energy measurement and engineering systems
Design and Materials
The current transformer enclosure is made of self-extinguishing, heat-resistant plastic with high mechanical strength.
The transformer core is made of low-loss ferromagnetic alloy, which ensures stable and accurate transmission even under variable loads.
The secondary winding terminals are provided with a protective cover to enhance connection safety.
Proper installation minimizes the risk of short circuits or faults.
