Time reversal reverse cyclic relay 230V AC
- Regular price
- €40,12
- Regular price
-
- Sale price
- €40,12
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

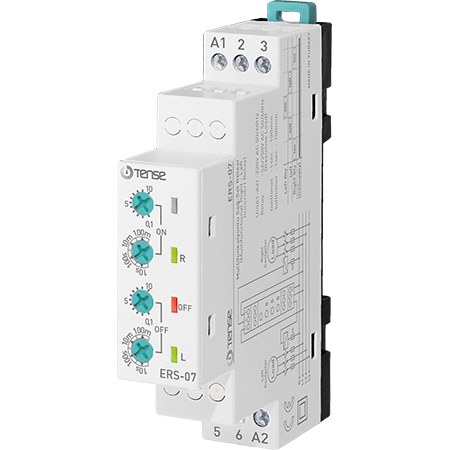

Time reversal reverse cyclic relay - "left-right / up-down / forward-backward"
Product description
The inverse reverse cyclic time relay is designed for alternating switching of two independent loads. It allows operation in left-right, up-down, forward-backward modes and is also ideal for reversing electric motors with a safety delay between switching.
Typical applications are automatic cycles in dishwashers, washing machines, door operators, lifting mechanisms, conveyors or motion systems.
Main functions
-

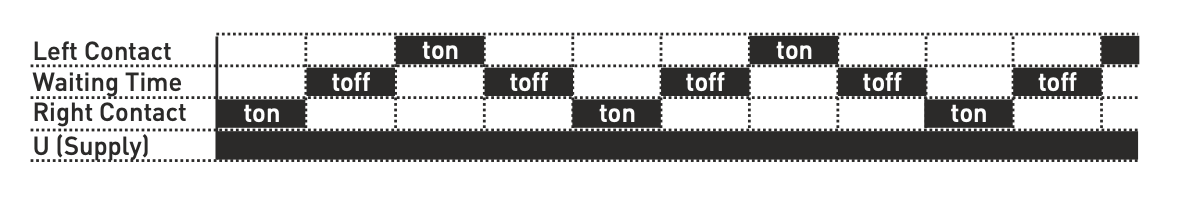

Cyclic switching of two outputs according to set times
-
Modes:
-
left - right
-
up - down
-
forward - reverse
-
-
Built-in safety delay between switches
-
Ton and Toff timing independently selectable
-
Setting range 0.1 s to 100 minutes for both times
-
Suitable for controlling motors, actuators, valves, drives and AC loads
Application
-

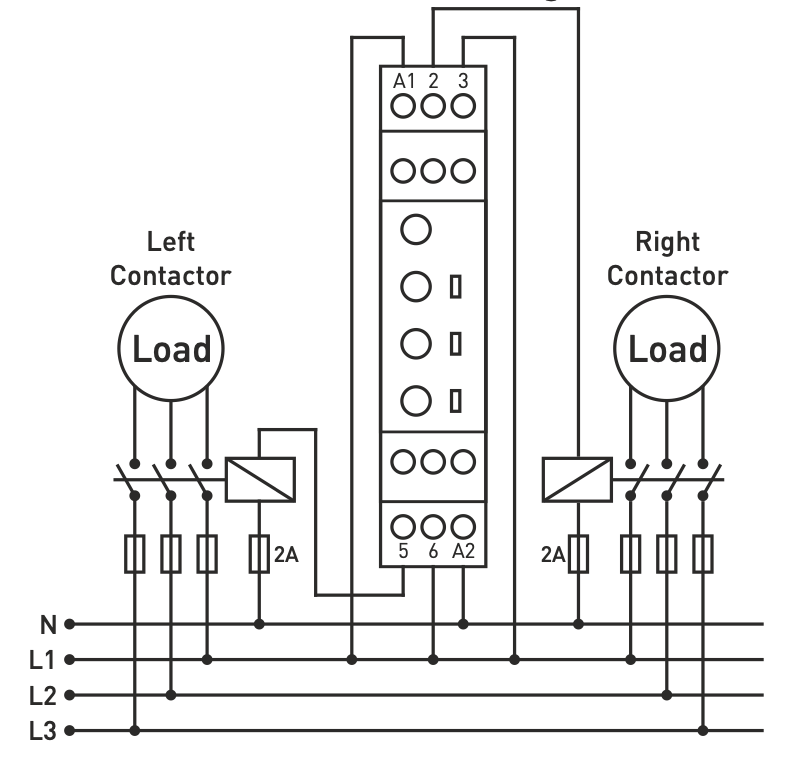

Reverse operation of electric motors
-
Automatic "back and forth" cycles
-
Sliding mechanisms, lifting systems
-
Dual mode ventilation and pumping systems
-
Equipment for dishwashers, washing machines, conveyors
-
Control of motion advertising elements or rotating devices
Assembly
-

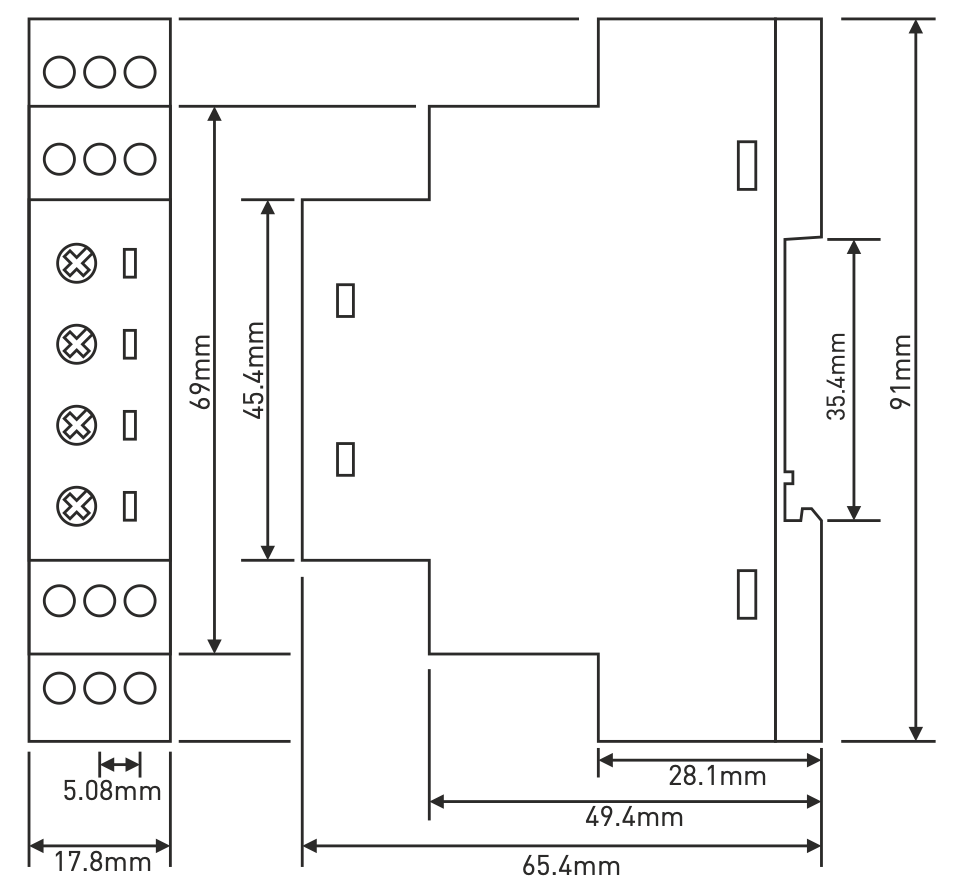

Installation on standard 35mm DIN rail
-
Suitable for control cabinets, industrial enclosures and automation systems
