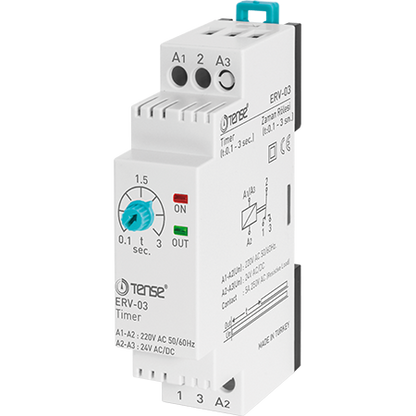

Time relay / ON-DELAY 24 V/AC/DC, 230 V/AC
Failed to load pickup availability

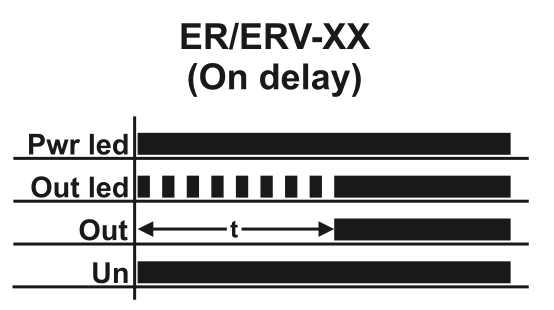

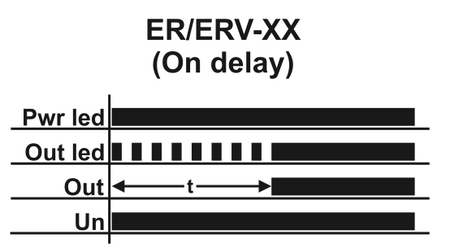

ON-DELAY / delay / time delay monofunction relay with delayed arrival 24 V/DC, 24 V/AC, 230 V/AC with 1 switching contact.
The delay relay is used to switch loads in stages: electric boilers, furnaces, heaters, etc. and thus prevents current surges in the network and tripping of circuit breakers due to large overvoltages.
It can also be used to coordinate the switch-on time of several devices in machines, appliances or other equipment.
Time range:
ERV-03 - 0-3 s
ERV-12 - 0-12 sec.
ERV-30 - 0-30 sec.
ERV-60 - 0-60 sec.
ERV-03D - 0-3 min.
ERV-12D - 0-12 min.
ERV-30D - 0-30 min.
ERV-60D - 0-60 min

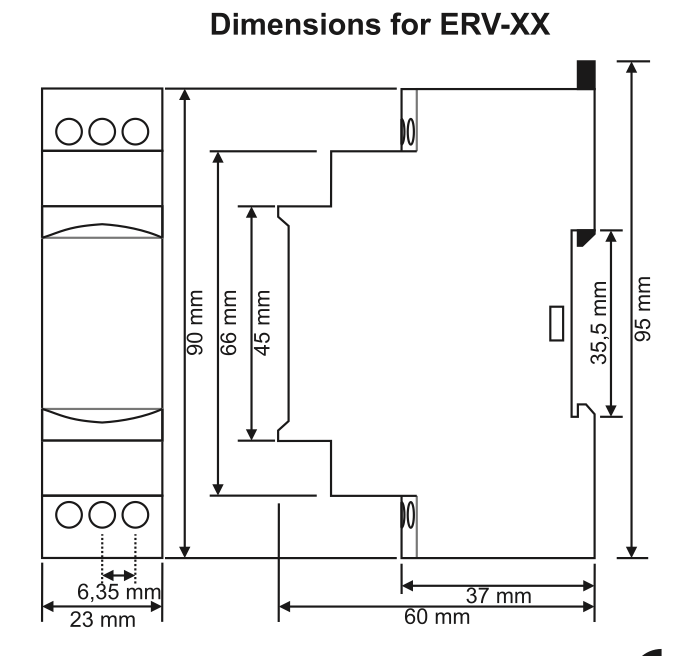

The time relay is mounted on a standard 35mm DIN rail.
