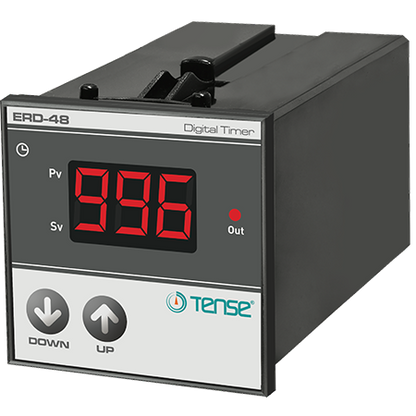

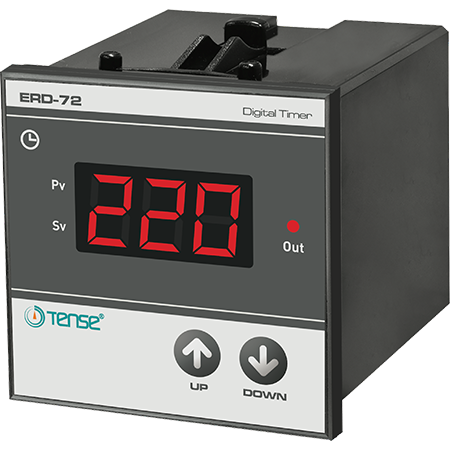

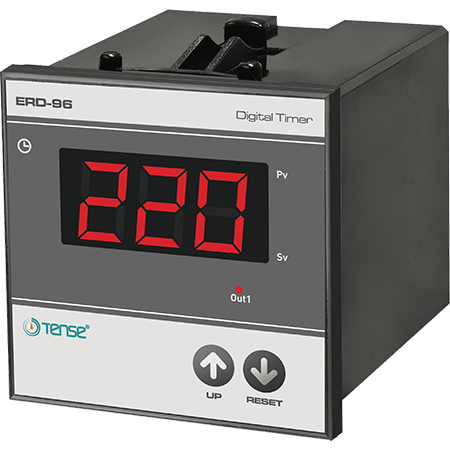

Time relays ERD-96 ERD-48, ERD-72 - TENSE

On-delay timer / cyclic pulse relay / symmetrical and asymmetrical pulse generator

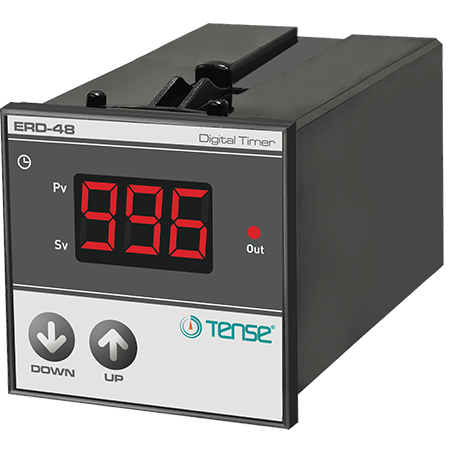

The ERD-96 ERD-48, ERD-72 timer relay is designed to create a time delay on or generate cyclic pulses to control various processes in automation and control systems (ACS).
It is particularly suitable for use in:

• AC systems,

• control of swimming pools and technology,

• emergency and security systems,

• general automation and sequential plant control.

Main features

• Two basic functions

  • On-delay timer

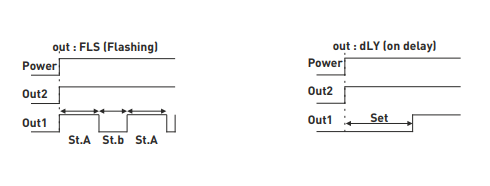

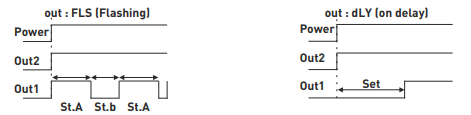

  • Cyclic relay (pulse generator - symmetrical/asymmetrical pulses)

• Wide time range:
  0.1 s to 999 minutes

• Time countdown indication - digital display of remaining time (cooling time)

• Simple connection via terminal block

• Suitable for universal use in AC networks 100...240 V

Technical specifications

Mechanical and display parameters

• Display: 3-digit 7-segment LED display

Functions

• Immediate output after start-up (Out2)

• Delayed output after start-up (Out1)

Inputs

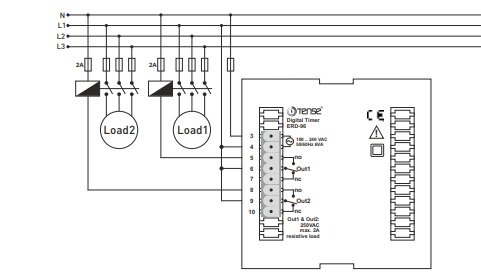

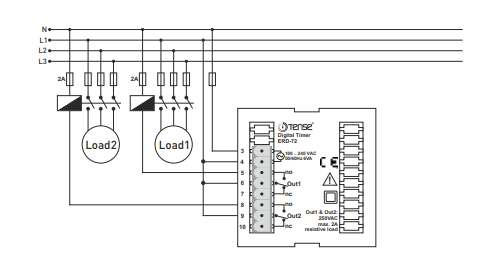

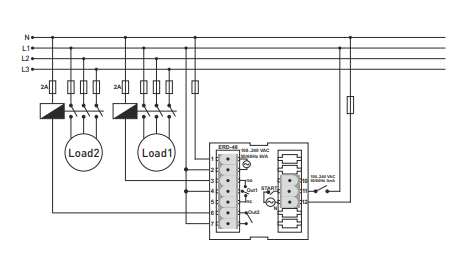

• START input: contacts 11-12

  • 100...240 V AC, 50/60 Hz

  • Consumption max. 3 mA

  • Timing

• Ranges:

  • 99,9 s

  • 999 s

  • 99.9 min

  • 999 min
    (optional)

• Resolution:

  • 0.1 s / 1 s / 0.1 min / 1 min

• Accuracy: ±1.5% of set value

Outputs

• Out1 - Delayed output:

  • NO-O-NC relay

  • 250 V AC, 2 A (resistive load)

• Out2 - Immediate output:

  • NO-O relay

  • 250 V AC, 2 A (resistive load)

Power supply

• Supply voltage: 100...240 V AC, 50/60 Hz

• Power consumption: < 5 VA

Ambient conditions

• Operating temperature: -20 °C to +55 °C

• Operating altitude: up to 2000 m
