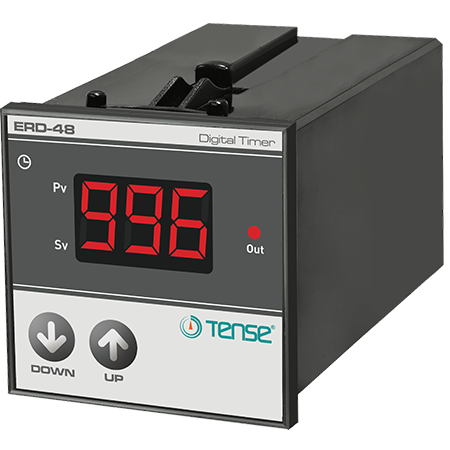

Time cyclic + ON-DELAY relay with LED display - TENSE ERD-48K (230 VAC)
Product description
The TENSE ERD-48K time relay combines two functions in one device - delayed ON-Delay and cyclic control. It is designed for panel or cabinet door mounting and features an easy-to-read LED display that allows easy time setting and current status checking.
The device is suitable for automatic control of lighting, ventilation, motors, signalling and other loads where sequential or repetitive switching is required.

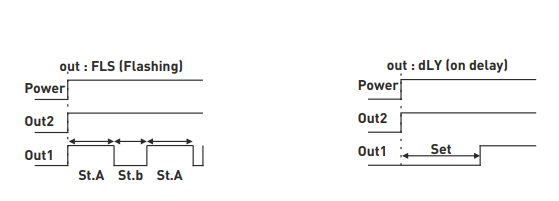

Main functions
-
ON-Delay - activates the output after a set time has elapsed
-
Cyclic mode (blinker) - periodically turns loads on and off
-
Modes:
-
Blinkr at the beginning of the pulse
-
Blinkr at start of pause
-
-
LED display for convenient setting and display of remaining time
-
Suitable for 48×48 mm panel mounting
Time setting
Four selectable ranges:
-
0-99.9 seconds
-
0-999 seconds
-
0-99.9 minutes
-
0-999 minutes
Range selection is made directly on the front panel.
Using
-
Automatic lighting on/off
-
Ventilation with cyclic operation
-
Control of heating and cooling devices
-
Control of signal lights or audible warnings
-
Industrial time processes and automation
Power supply and installation
-
Operating voltage: 230 VAC
-
Mounting: panel / cabinet door (48×48 mm)
