Three-phase monitoring relay with PTC control phase trip/asymmetry/sequence

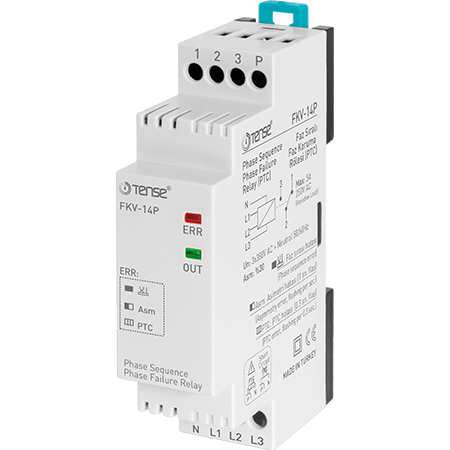

Three-phase relay for phase control with trip protection and winding temperature control, TENSE - FKV-14P

Product description

The FKV-14P three-phase phase control relay is designed to protect three-phase electric motors and equipment against critical faults in the power supply network. It provides comprehensive control of phase presence, phase failure, phase jamming, asymmetry (fixed 40%), phase missequence and excessive motor winding temperature. Equipped with a neutral conductor and designed for DIN rail mounting.

Main functions

• Checks the presence of all three phases

• Phase failure protection

• Detection of phase jamming (kinking)

• Fixed voltage asymmetry control 40%

• Protection against incorrect phase sequence

• Motor winding temperature control

• Optical status indication (LED OUT)

• Automatic restoration of operation when parameters return to the permitted range

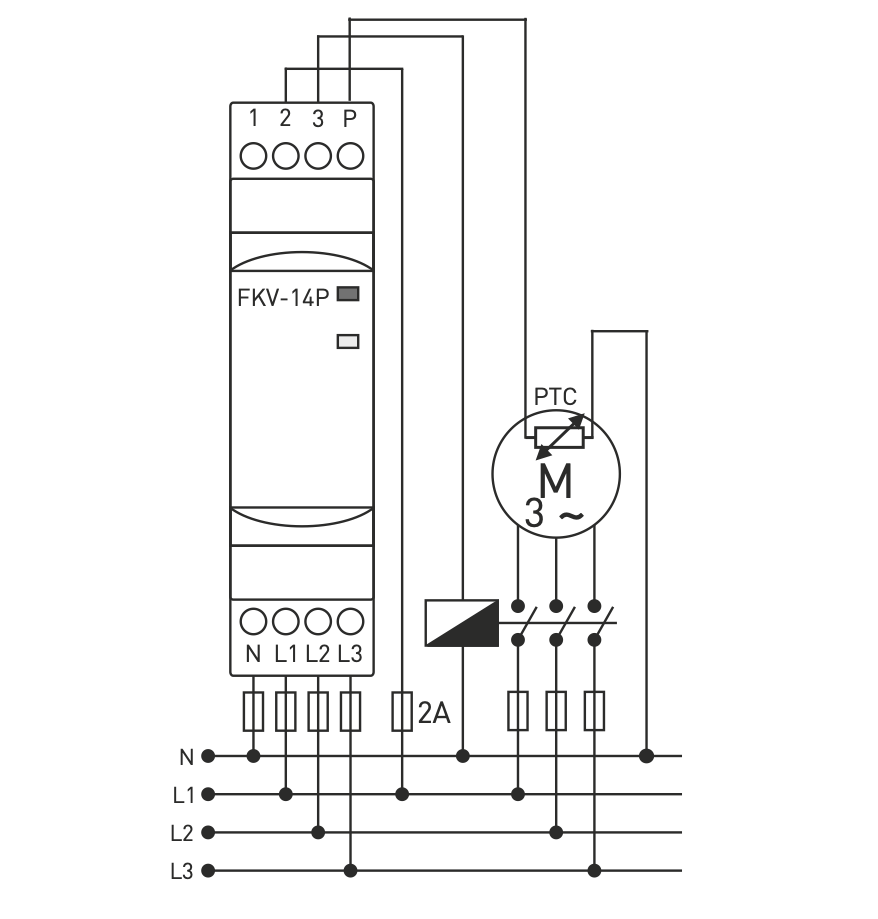

Operating principle

• Normal operation: if all three mains voltages are present, the phase sequence is correct and the winding temperature does not exceed the limits, the relay switches on (contacts 15-18 are closed) and the OUT LED lights up.

• Voltage error or asymmetry: If the voltage of any phase deviates by more than 40%, contacts 15-18 will open and contacts 15-16 will energize; the OUT LED will be off.

• Phase sequence error: the relay responds by opening the contacts and turning off the OUT LED.

• Winding temperature exceeded: Relay disconnects output until temperature returns to allowable limits.

• Restore Operation: The relay automatically returns to the operating state after the parameters have been normalized.

Technical specifications

• Device type: Phase monitoring relay

• Number of phases: 3 + N

• Asymmetry: 40% (fixed)

• Temperature protection of winding: Yes

• Output contacts: 15-18 (closed in operation), 15-16 (closed in fault)

• Indication: LED OUT

• Mounting: DIN rail

• Manufacturer: TENSE (Turkey)

Benefits

• Comprehensive motor and wiring protection

• Stable operation due to fixed asymmetry of 40%

• Easy installation on DIN rail

• Automatic restoration of function without operator intervention

• Reliable protection under harsh industrial conditions

Typical applications

• Three-phase electric motors

• Industrial pump systems

• Compressors

• Fans

• Machinery with sensitivity to voltage sequence and quality
