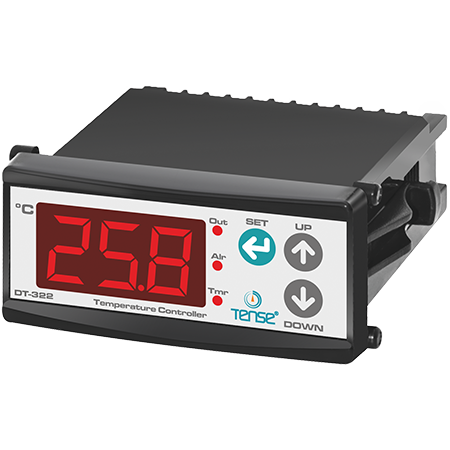

Thermostat / 2-point temperature controller DT-322 - TENSE (Turkey)
Description:
2-point temperature controller for panel mounting with ON-OFF mode. Designed for control and monitoring of thermal processes in heating, air conditioning, ventilation systems, building automation and industrial applications.
Main functions
-
Sensor type: NTC
-

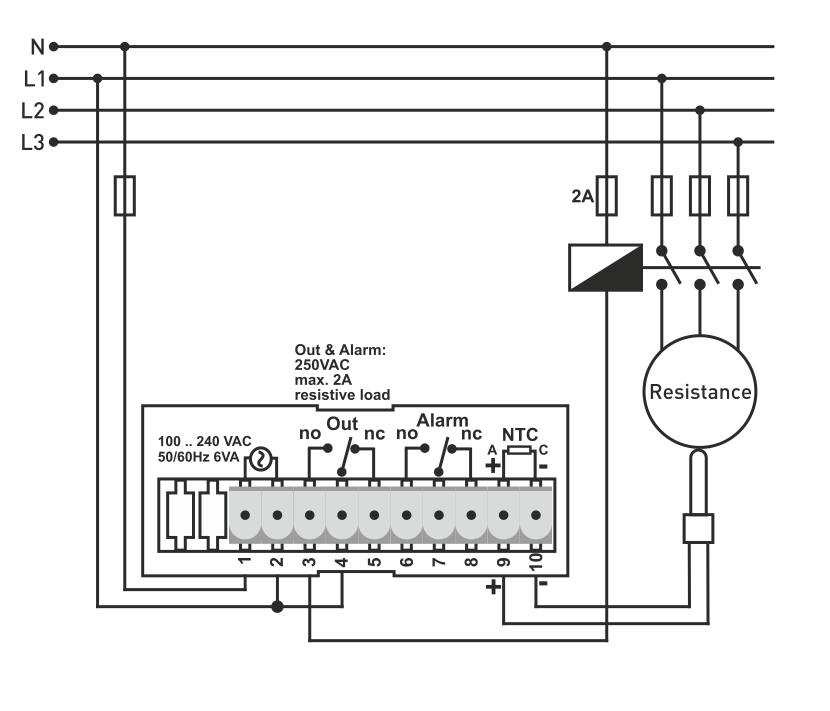

Outputs: Relay OUT and ALARM (NO+NC), 250 VAC, 2A
-
Optional function: Heating / Cooling
-
Adjustable hysteresis for SET and ALARM
-
OUT output ON delay for cooling mode
-
Adjustable ON/OFF timers for OUT output on sensor failure
-
Upper and lower limits for SET and ALARM settings
-
EEPROM memory for storing settings
-
Password protection against unauthorized parameter changes
-
High measurement accuracy
Technical parameters
-
Measuring range: -19.9 °C ... +99.9 °C
-
Resolution/step: 0.1 °C
-
Power supply and operation: standard panel mounting format
-
Relay outputs: 250 VAC / 2 A
Application
-
Temperature control in industrial equipment, air conditioning and heating
-
Temperature process monitoring
-
Equipment protection and process automation
