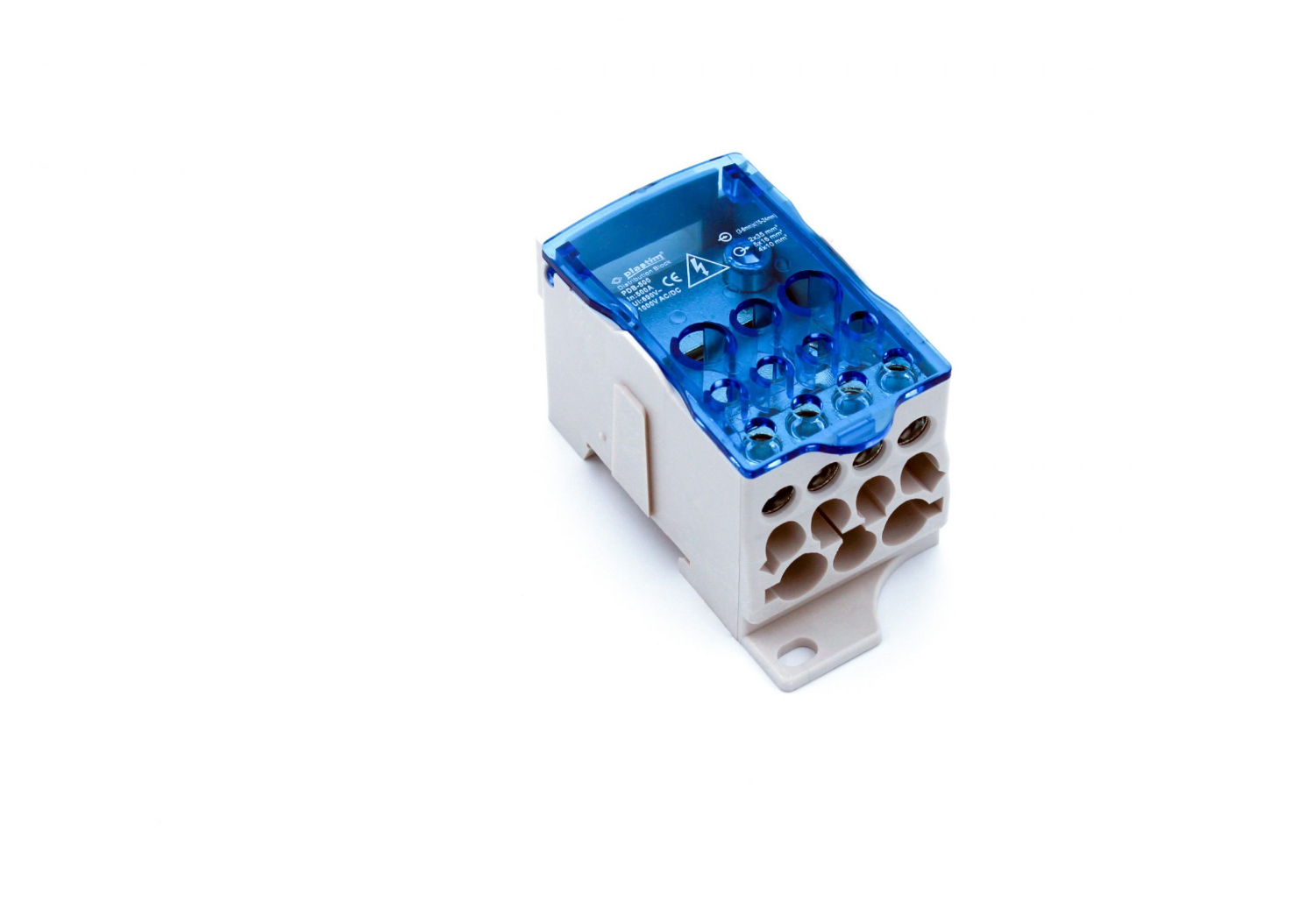

PDB500 phase separation terminal block
- Regular price
- €39,96
- Regular price
-
- Sale price
- €39,96
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Terminal block for phase separation on DIN rail, Plastim
Plastim's high-performance industrial distribution block is used for safe, structured and clear branching of phase or neutral conductors in main power points and large switch cabinets. This robust module is rated for extreme current loads of up to 500 A, with an input section suitable for connecting a massive supply conductor or busbar strip of up to 8×24 mm².
The block enables reliable and space-saving distribution of high power into 11 separate output branches of three different capacities. The durable plastic housing guarantees safe housing and protection against accidental contact, while the universal base allows quick mounting on a standard DIN 35 mm support rail or fixed mounting with screws on a mounting plate.
Technical parameters
Product type.
Rated current: 500 A
Number of inputs: 1
Number of outputs: 11
Input busbar size: 8 × 24 mm²
-
Output wire cross section:
4 × 2.5 - 10 mm²
5× 2.5 - 16 mm²
2× 6 - 35 mm²
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
