PDB415 phase separation terminal block
- Regular price
- €23,16
- Regular price
-
- Sale price
- €23,16
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

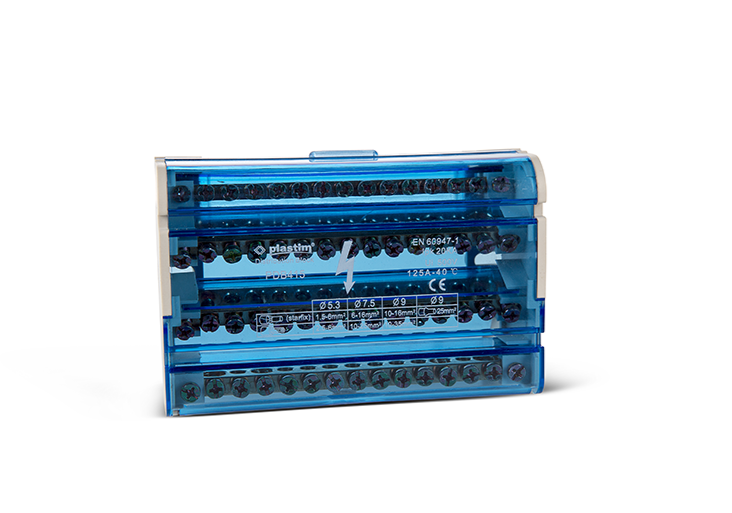

Terminal block for phase separation on DIN rail, Plastim, made in Turkey.
The Plastim four-pole distribution block is used for safe, clear and space-saving branching of the three phases and neutral conductor (3P+N) in switchboard cabinets. The assembly comprises four separate, galvanically isolated brass busbars (4 poles), each with 15 connection points of three different diameters for an optimal combination of main supply and a large number of terminal outlets. A transparent hinged cover allows immediate visual inspection of the connections while providing reliable protection against accidental contact. The block is designed for quick snap-on to a standard DIN 35 mm support rail or for fixed fixing with screws to a mounting plate.
Technical parameters
Product type.
Number of poles: 4 (suitable for three-phase networks with zero conductor)
Rated current: 125 A
Number of terminals per pole: 15
Total number of terminals: 60 (4×15)
Terminal configuration per pole: 9× ø 5.3 mm + 2× ø 7.5 mm + 2× ø 9.0 mm
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Length: 132.0 mm
Width: 89.5 mm
Height: 51.0 mm
