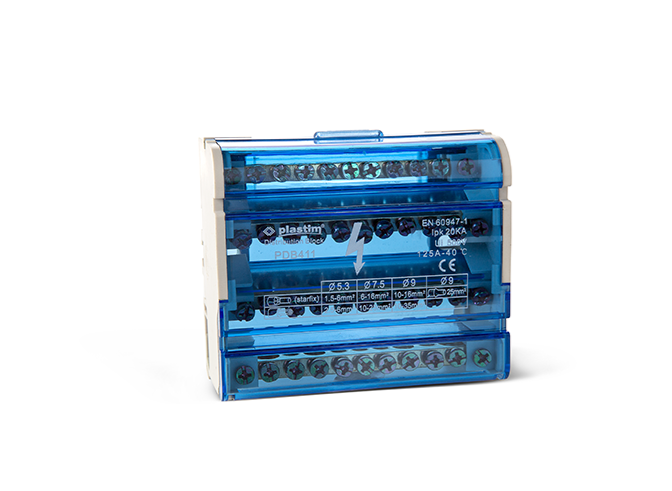

PDB411 phase separation terminal block
- Regular price
- €18,00
- Regular price
-
- Sale price
- €18,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Terminal block for phase separation on DIN rail, Plastim
The Plastim four-pole distribution block is used for safe, clear and space-saving branching of three phases and the neutral conductor (3P+N) in switchboard cabinets. The assembly contains four separate, galvanically isolated brass busbars (4 poles), each with 11 connection points of three different diameters for optimum combination of main supply and terminal outputs. A transparent hinged cover allows immediate visual inspection of the connections while providing reliable protection against accidental contact. The block is designed for quick snap-on to a standard DIN 35 mm support rail or for fixed fixing with screws to the mounting plate.
Technical parameters
Product type.
Number of poles: 4 (suitable for three-phase networks with zero conductor)
Rated current: 125 A
Number of terminals per pole: 11
Total number of terminals: 44 (4×11)
Terminal configuration per pole: 7× ø 5.3 mm + 2× ø 7.5 mm + 2× ø 9.0 mm
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Length: 100.0 mm
Width: 89.5 mm
Height: 50.0 mm
