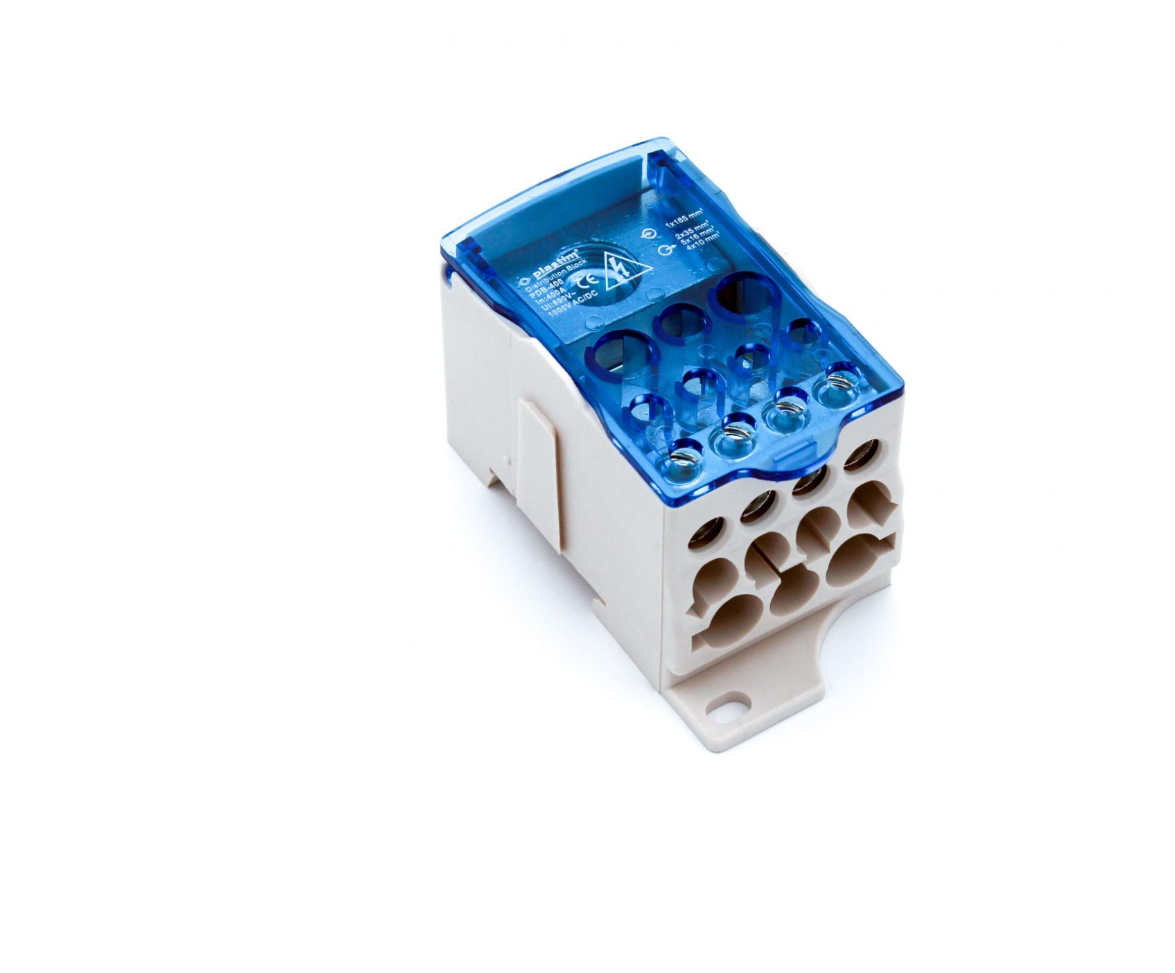

Terminal block for phase separation on DIN rail, Plastim
Plastim's high-performance distribution block is used to safely and clearly split phase or neutral wires in industrial switchgear and main power points. This compact module allows one large cross-section main supply cable (up to 185 mm²) to be connected and reliably divided into 11 separate output branches of three different capacities. The robust construction and high-quality conductive core guarantee minimum transient resistance and 100% stability at full current load of 400 A. The plastic housing ensures safe housing and protection against accidental contact. The block is designed for mounting on a standard DIN 35 mm support rail or for mounting with screws on a mounting plate.
Technical parameters
Product type.
Rated current: 400 A
Number of inputs: 1
Number of outputs: 11
Input wire cross section: 1×95 - 185 mm²
-
Output wire cross section:
4× 2.5 - 10 mm²
5× 2.5 - 16 mm²
2× 6 - 35 mm²
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
