Phase separation terminal block PDB215
- Regular price
- €12,40
- Regular price
-
- Sale price
- €12,40
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

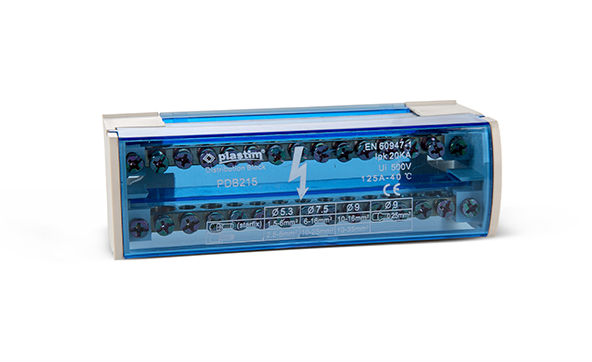

Terminal block for phase separation on DIN rail, Plastim
The Plastim two-pole phase separation block is used for safe, structured and clear branching of phase and neutral conductors in electrical distribution. The assembly consists of two separate, galvanically separated brass busbars (2 poles), each with 15 connection points of three different diameters for optimum combination of main supply, connection and termination circuits. The transparent protective cover allows visual inspection of the condition of the connections while providing reliable protection against accidental contact. The block is adapted for quick fixing to a standard DIN 35 mm support rail or for fixed fixing with screws on the mounting plate.
Technical parameters
Product type: Network block.
Number of poles: 2
Rated current: 125 A
Number of terminals per pole: 15
Total number of terminals: 30 (2 × 15)
Terminal configuration per pole: 11 × ø 5.3 mm + 2 × ø 7.5 mm + 2 × ø 9.0 mm
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Length: 132.0 mm
Width: 45.5 mm
Height: 51.0 mm
