Phase separation terminal block PDB 160
- Regular price
- €13,40
- Regular price
-
- Sale price
- €13,40
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

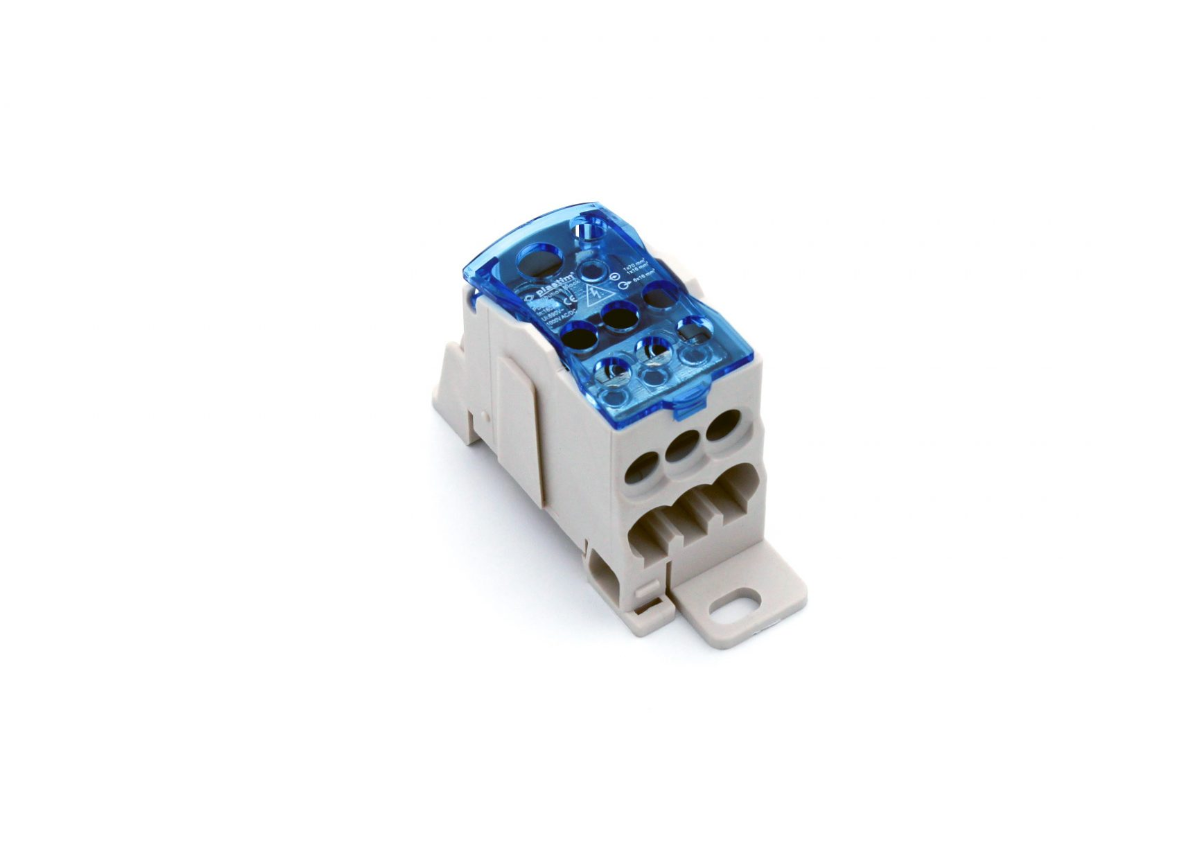

Terminal block for phase separation on DIN rail, Plastim.
The Plastim PDB 160 compact distribution block is used for safe and clear branching of phase or neutral conductors in switchboards. It allows one large cross-section main supply conductor to be connected and branched into seven output circuits. The robust brass bridge ensures perfect conductivity and low transient resistance, while the plastic cover guarantees protection against accidental contact. The block is designed for quick mounting on a standard 35 mm DIN rail or for mounting with screws on a mounting plate.
Technical parameters
Product type.
Rated current: 160 A
Number of inputs: 1
Number of outputs: 7 (6 standard outputs + 1 jumper)
Input wire cross-section: 10 - 70 mm²
Output wire cross section: 6× 2.5 - 16 mm²
Bridge cross-section: 1× 6 - 16 mm²
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
