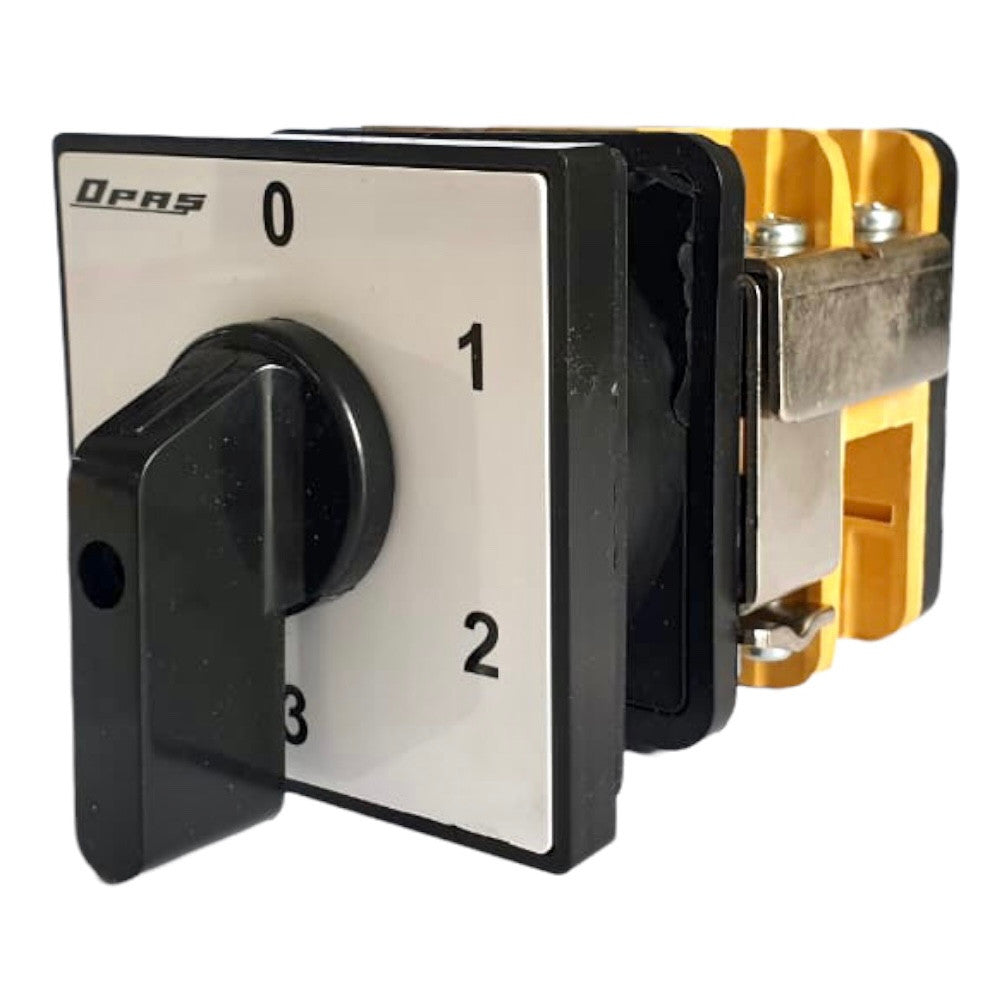

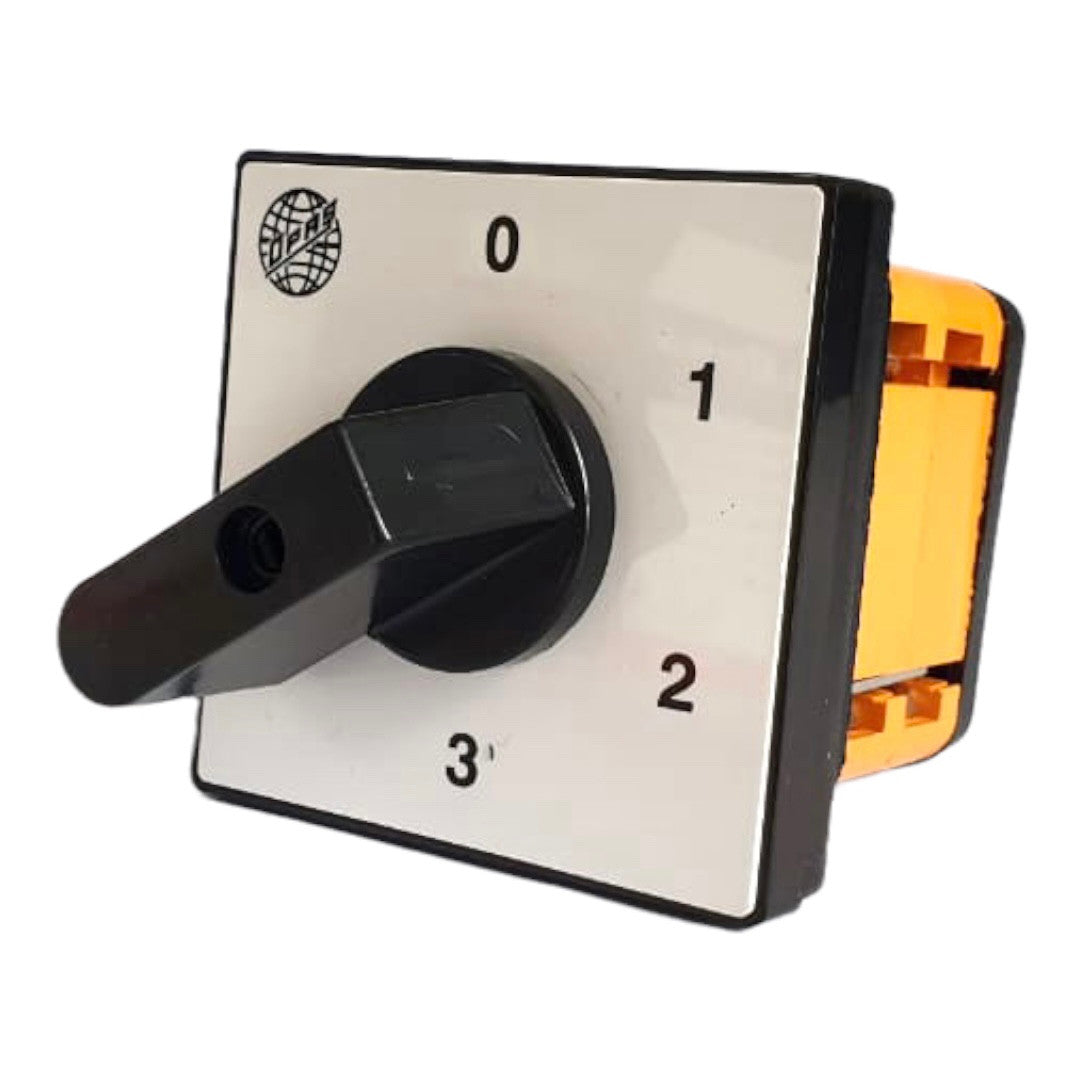

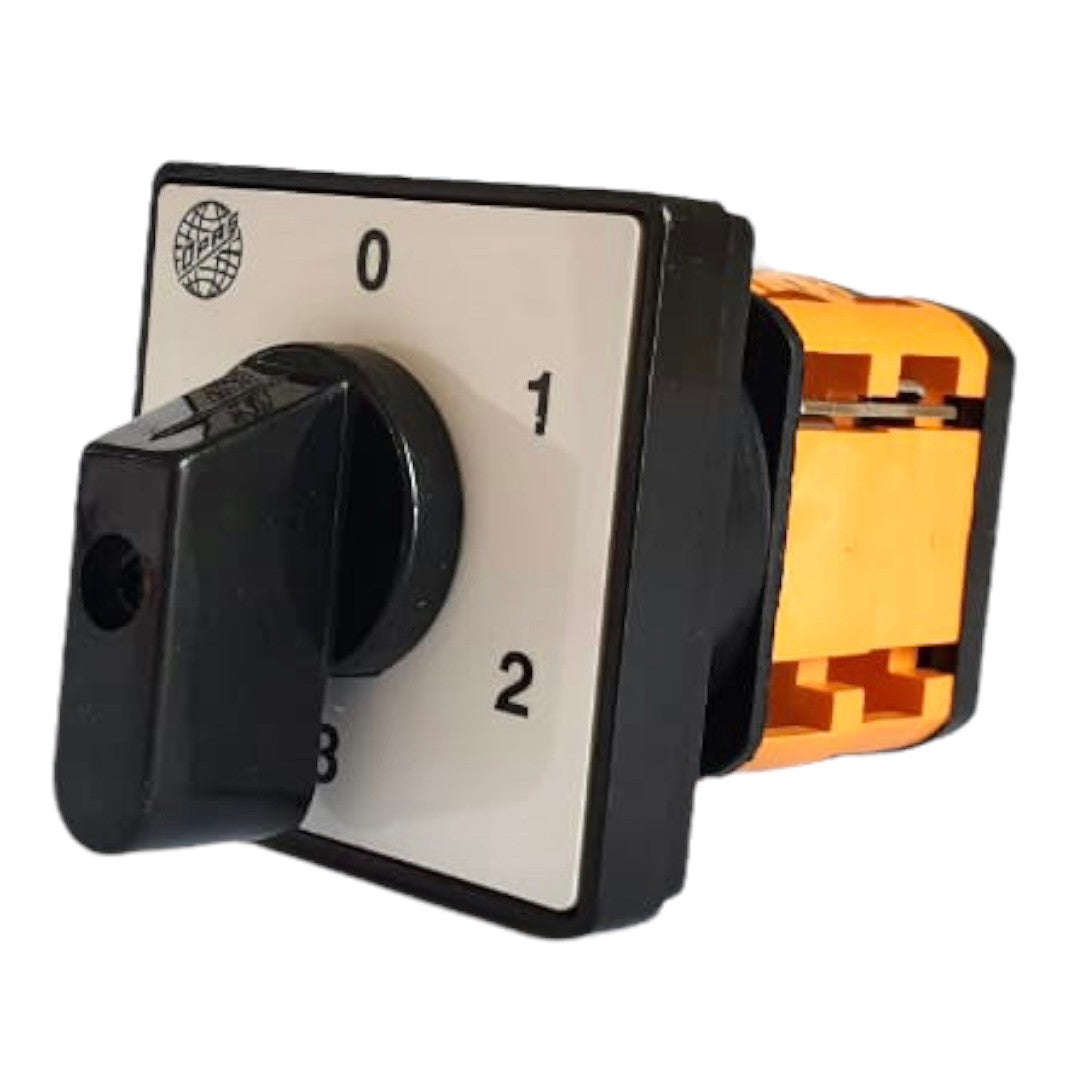

Name: Step switch 0-1-2-3 degree rotary switch
Brand: OPAS
SKU: YPT213032
Price: 14.72 EUR
Availability: OutOfStock

Description
Payment methods
Warranty

Step switch 0-1-2-3, rotary switch, 1-2 poles, 10-160A, YPT113 / YPT213, manufacturer OPAŞ (Turkey)

OPAŞ cam switches are designed for manual switching of low voltage circuits. They are used to create main and control circuits, to switch on and off electric motors and other low-power electrical equipment. They are distinguished by their compact size, high electrical and mechanical resistance.

Main features

Rotary cam switch for low voltage circuits

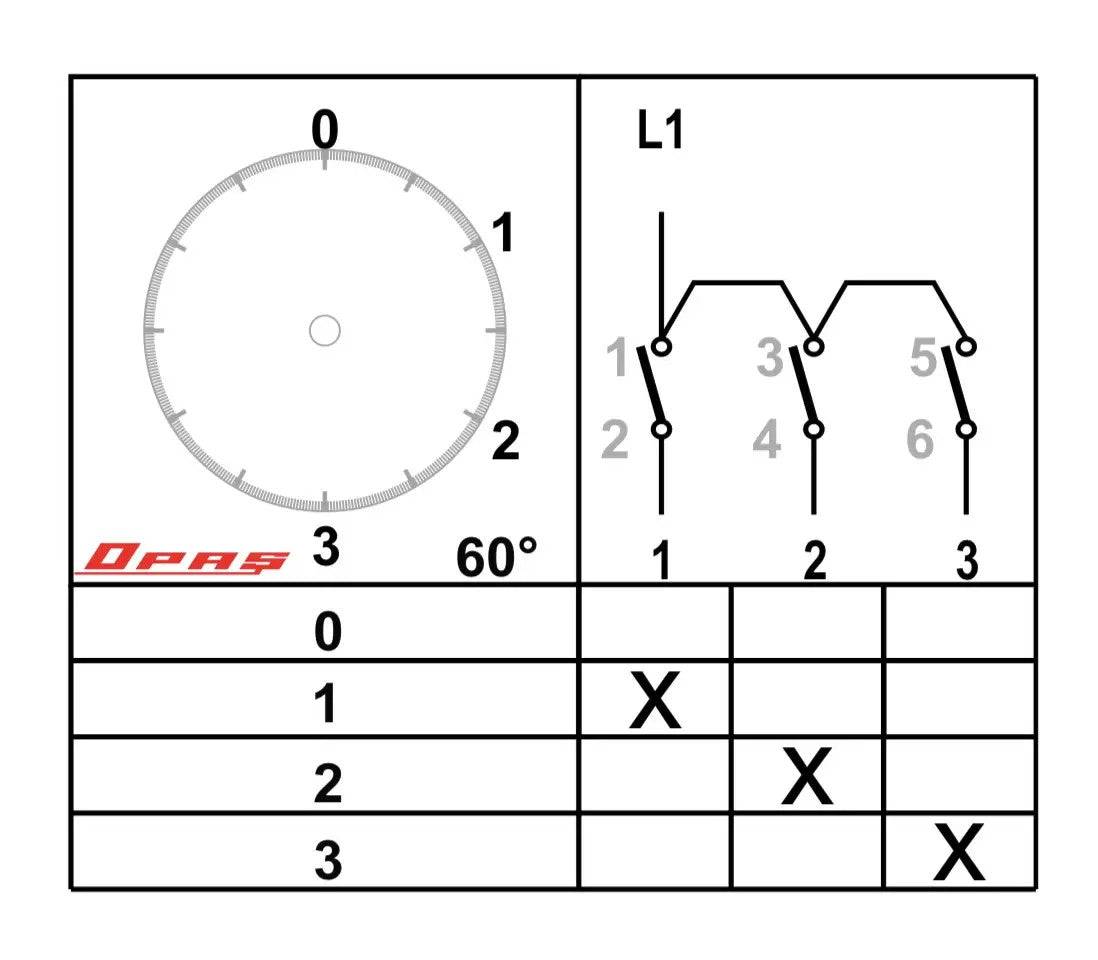

Switching scheme 0-1-2-3 (multiple operating modes - e.g. speed, heating temperature)
Designed for built-in installation
Suitable for single-phase applications

Technical parameters

Design: cam-operated
Device type: rotary switch

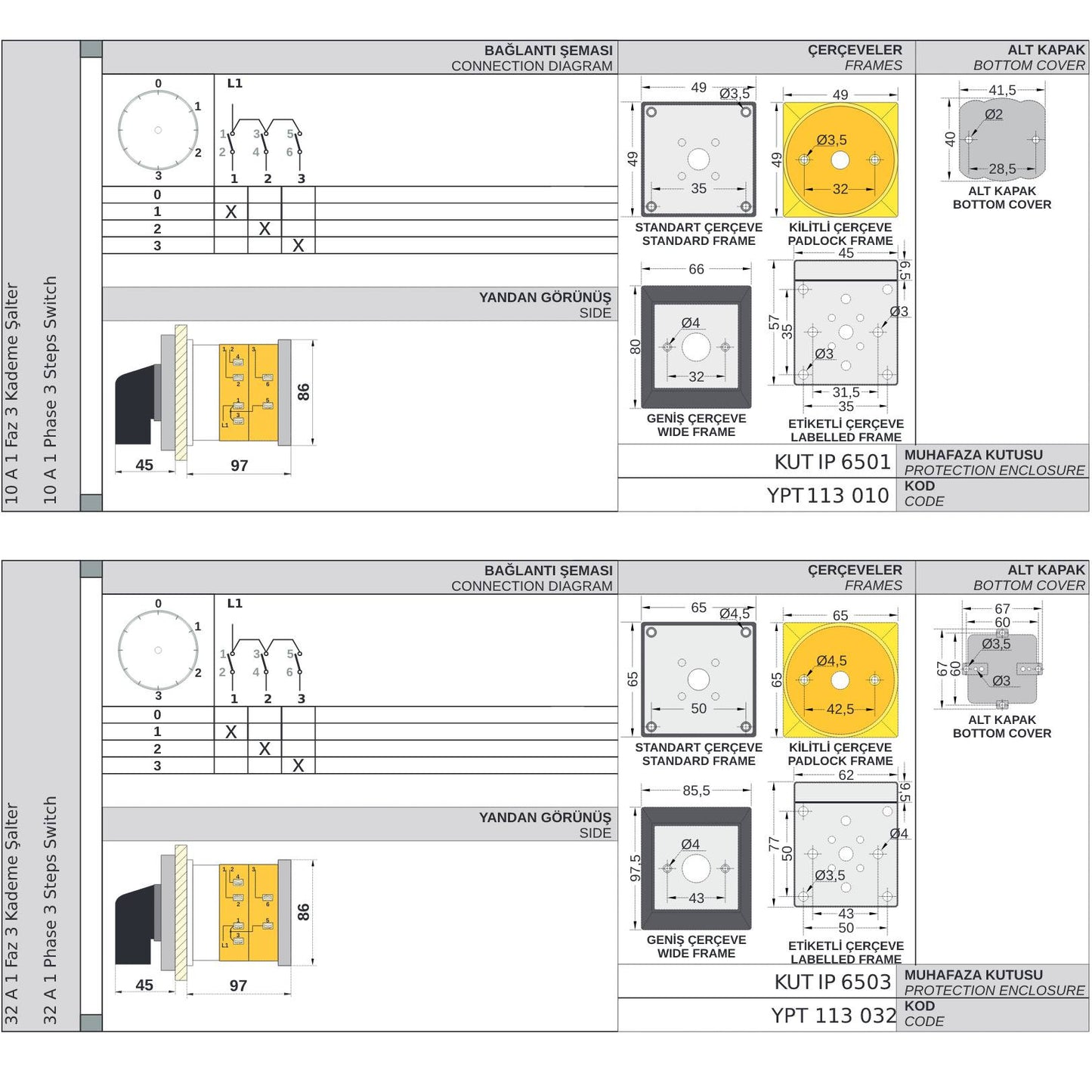

Switching scheme: 0-1-2-3
Number of poles: 1 (two-pole version also available)
Number of phases: 1
Blocking: no
Degree of protection: IP20
Operating temperature: -30 to +55 °C
Rated currents: 10 A, 16 A, 25 A, 32 A, 40 A, 63 A, 100 A, 125 A, 160 A

Usage

Switching and switching of operating modes of machines and equipment
Motor speed control
Control of heating and other electrical appliances
Low power circuits in industrial and technical installations
