Single-phase voltage and current protection relay, 1–63 A, for DIN rail mounting, GKE-63E
- Regular price
- €38,00
- Regular price
-
- Sale price
- €38,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

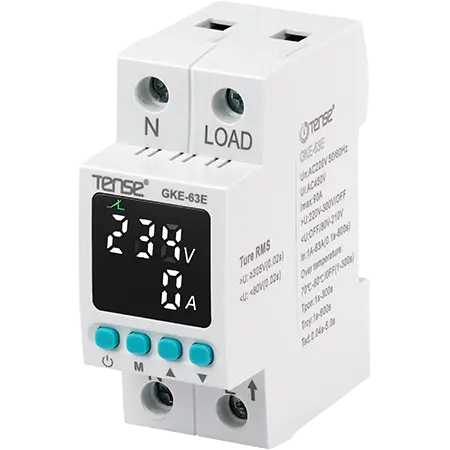

Single-phase voltage and current protection relay for DIN rail mounting, Tense
The advanced Tense GKE-63E protection relay with an integrated microprocessor and True RMS function is designed for comprehensive protection of electrical equipment in single-phase networks. The device continuously and accurately measures and displays current voltage and current values on a dual display. It provides reliable protection against overvoltage, undervoltage, current overload (thermal protection), and internal overheating of the device. The relay features a memory for recording the last fault condition and an automatic reset function with an adjustable time delay. Thanks to its compact modular design, it takes up minimal space in the control panel and mounts on a standard 35 mm DIN rail.
Key Benefits
True RMS measurement: Ensures high accuracy in evaluating values even in networks with harmonic distortion.
Dual LED Display: Enables simultaneous and clear monitoring of voltage (V) and current (A) in real time.
Technical Specifications
Product Type: Digital Protection Relay (Voltage and Current)
Number of Phases: 1 (single-phase)
Rated current (adjustable): 1 – 63 A
Mounting method: 35 mm DIN rail
Setting ranges
Overvoltage protection: 220 – 300 V
Undervoltage protection: 80 – 210 V
Turn-on delay: 1 – 300 s
Reset delay: 1 – 600 s
