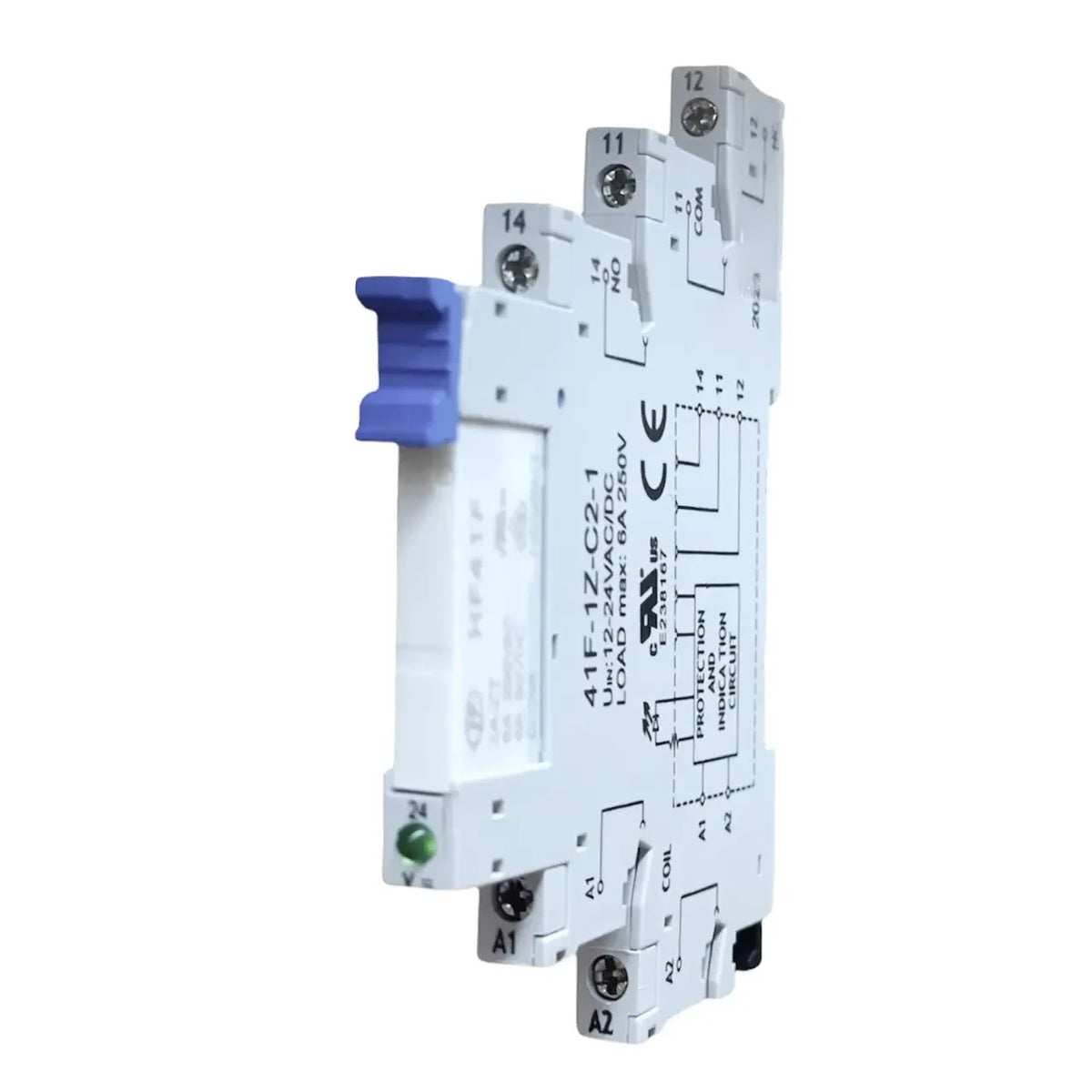

Relay interface with mounting block - 6 A, 12-24 V AC/DC, HB+NC (HF-41F)

Product description

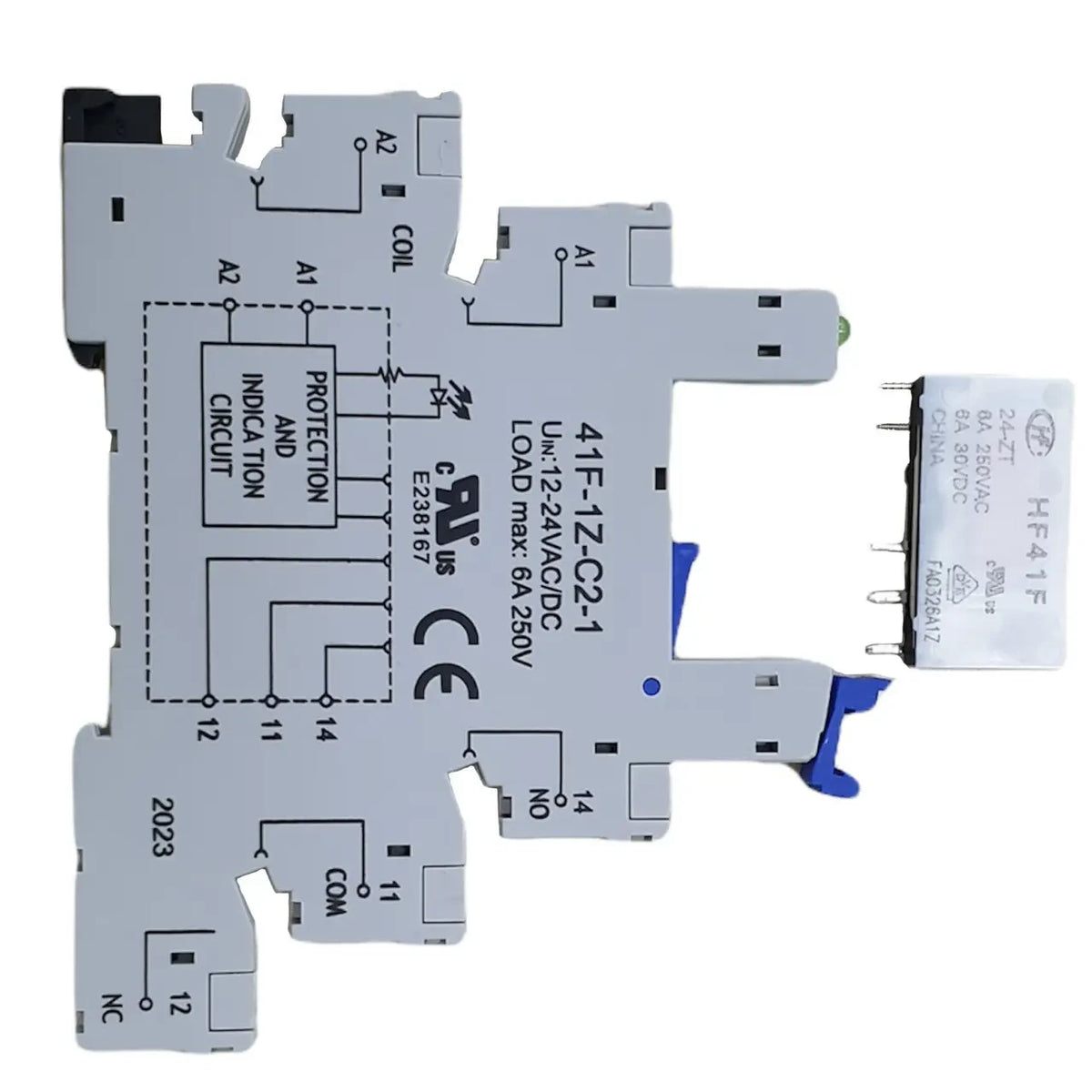

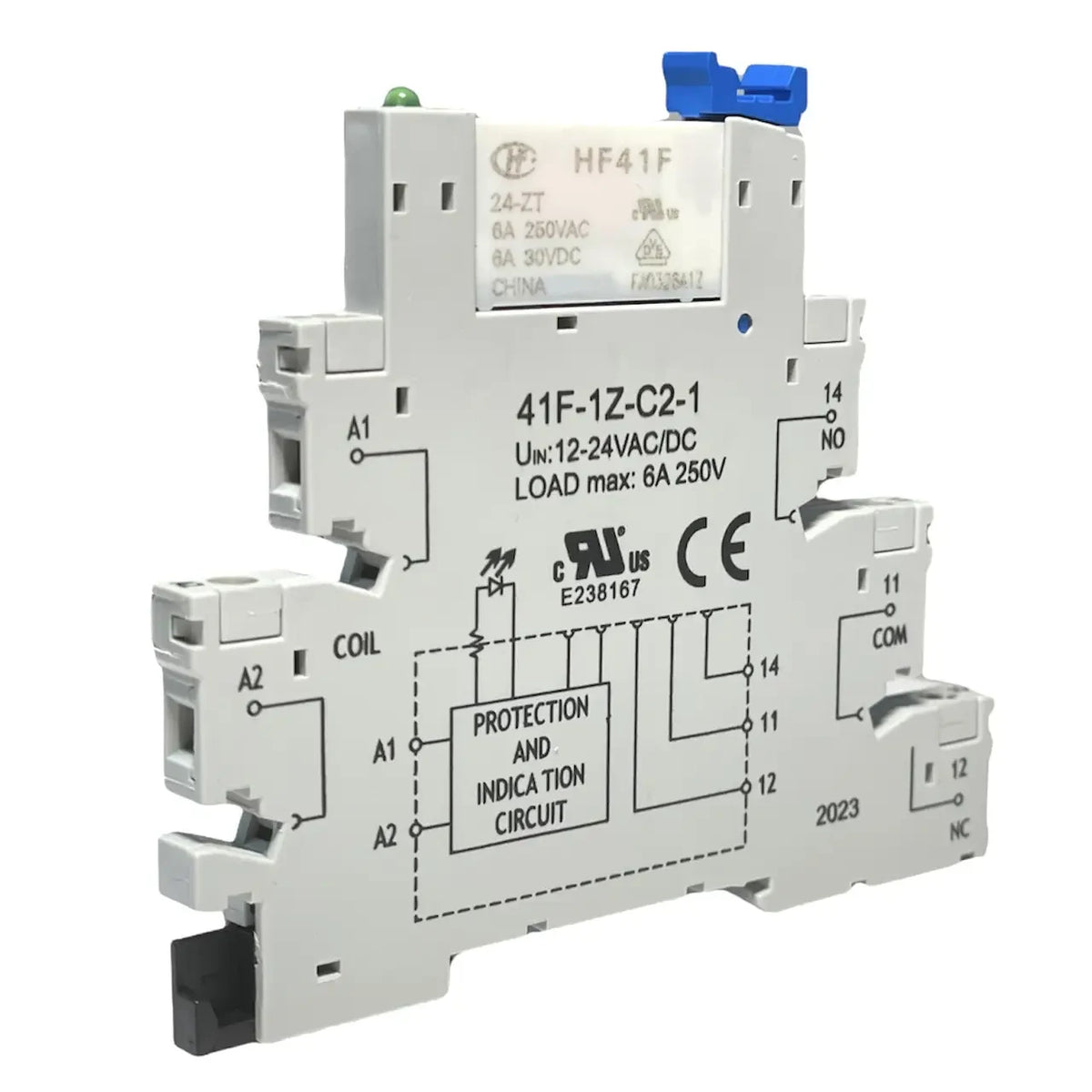

The HF-41F relay interface consists of the 41F-1Z-C2-1 base module and the HF41F/24-ZT plug-in miniature relay with power contacts.
Used for galvanic isolation, amplification of control signals from PLCs, control systems or sensors and to increase the switching capacity of output circuits.

Thanks to its modular design, it allows quick relay replacement without disassembling the entire module - ideal for industrial applications, automation and control cabinets.

Features and benefits

• Galvanic isolation of control and power circuits

• Increased switching capacity of PLC output signals

• DIN rail mounting (standard 35 mm)

• Quick relay change - plug-in design without disassembling the entire module

• Space saving due to width of only 6 mm

• LED status indication (green relay activation light)

• Suitable for AC/DC input voltage 12-24 V

Technical parameters

• Input voltage: 12-24 V AC/DC

• Rated operating voltage of contacts:

  • AC: 250 V

  • DC: 30 V

• Rated current: 6 A

• Contact type: NO + NC (1 switching contact)

• Indication: green LED

• Operating temperature: -20...+55 °C

• Degree of protection: IP20

• Module width: 6 mm

• Construction: base + plug-in relay HF41F

Application

• Automation and industrial control

• PLC outputs with low current

• Separation of signal and power circuits

• Control of contactors, valves, motors, signalling

• Installation in high element density enclosures
